VVDI Key Tool Max + Mini OBD Program Chevrolet Captiva 2011 chip and remote

It’s simple to OBD program Chevrolet Captiva 2011 chip and remote using VVDI Key Tool Max + Mini OBD Tool. Program the chip first, then the remote.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-01



Look at Chevrolet Captiva 2011 remote and VVDI Key Tool Max, and Mini OBD Tool is already plugged into the OBD2 port of the car.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-02 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-03

Customer lost working remote.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-04

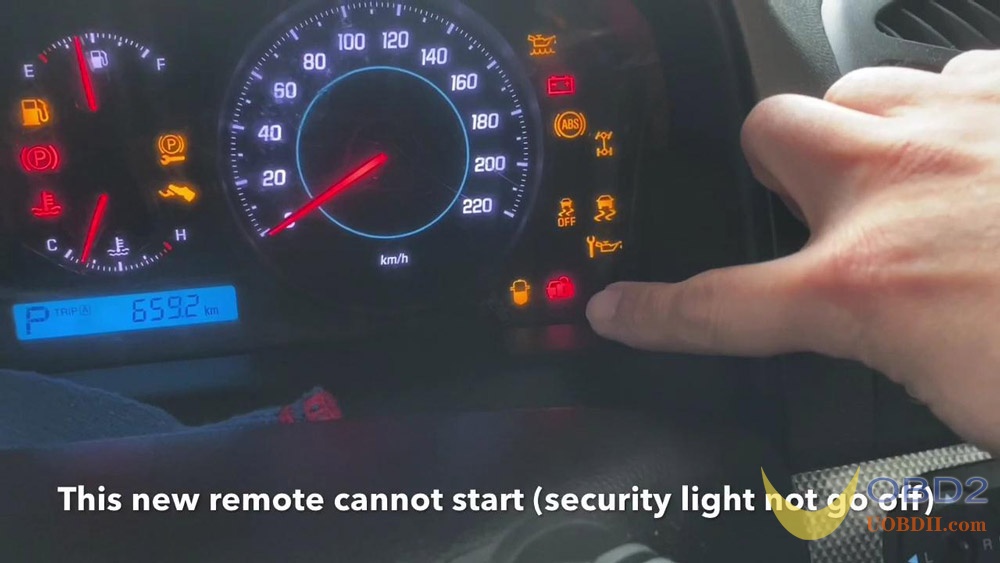

This new remote cannot start (security light does not go off).

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-05

Turn on with working key (security light goes off)

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-06

Connect VVDI Key Tool Max with Mini OBD Tool via Bluetooth.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-07

Tap “IMMO programming” -> “Chevrolet” -> ” Captiva” -> “IMMO system” -> “Non Smart” -> “Type 1”.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-08 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-09 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-10 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-11

Read function description (All key lost).

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-12

All keys will be deleted.

Tap “Start execution” -> “All keys lost”.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-13

Turn ignition switch to ON.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-14

Need at least 2 keys or it cannot start! Whether to continue?

Tap “Yes”.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-15

Please wait for 12 minutes…

As you can see the security light steady.

After wait for around 11 minutes… security light go off.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-16 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-17 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-18

  1. Turn off. 2. Turn on all keys for 5 seconds.

Turn on with 1st key wait 5 seconds until security light go off.

Remove the key.

Turn on with 2nd key wait 5 seconds until security light go off.

Remove the key.

Tap “OK”

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-19 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-20

Test all keys.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-21

After programming the chip, you need to program remote.

Go back to “Remote system”.

Don’t forget your MINI OBD Tool after learning key successfully!

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-22

Chevrolet -> Captiva -> Remote system -> Type 1.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-23

Follow the on-screen instruction to operate.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-24

Start execution: Start “Add remotes”.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-25

Turn ignition ON.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-26

Press both LOCK and unlock buttons for the wanted adding remote for 10 seconds, then release, press “OK” to continue.

The sound response 2 times.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-27

Please check if the programmed key is valid.

Test remote and it works.

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-28 vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-29

Match successfully.

Big thanks to VVDI Key Tool Max with Mini OBD Tool

vvdi-key-tool-max-program-chevrolet-captiva-2011-chip-remote-30
