On June 3rd, Autel will officially release a brand-new feature: the Mercedes-Benz ECU/ETU Cloning Function. Following the successful launches of our Volkswagen and BMW cloning functions, the debut of this Mercedes-Benz feature marks a significant milestone: Autel IMMO product line (Autel Maxiim IM608 Pro II, Autel IM508s and Aute GBOX3) has now achieved comprehensive coverage of the core models across the Benz, VW group, BMW.

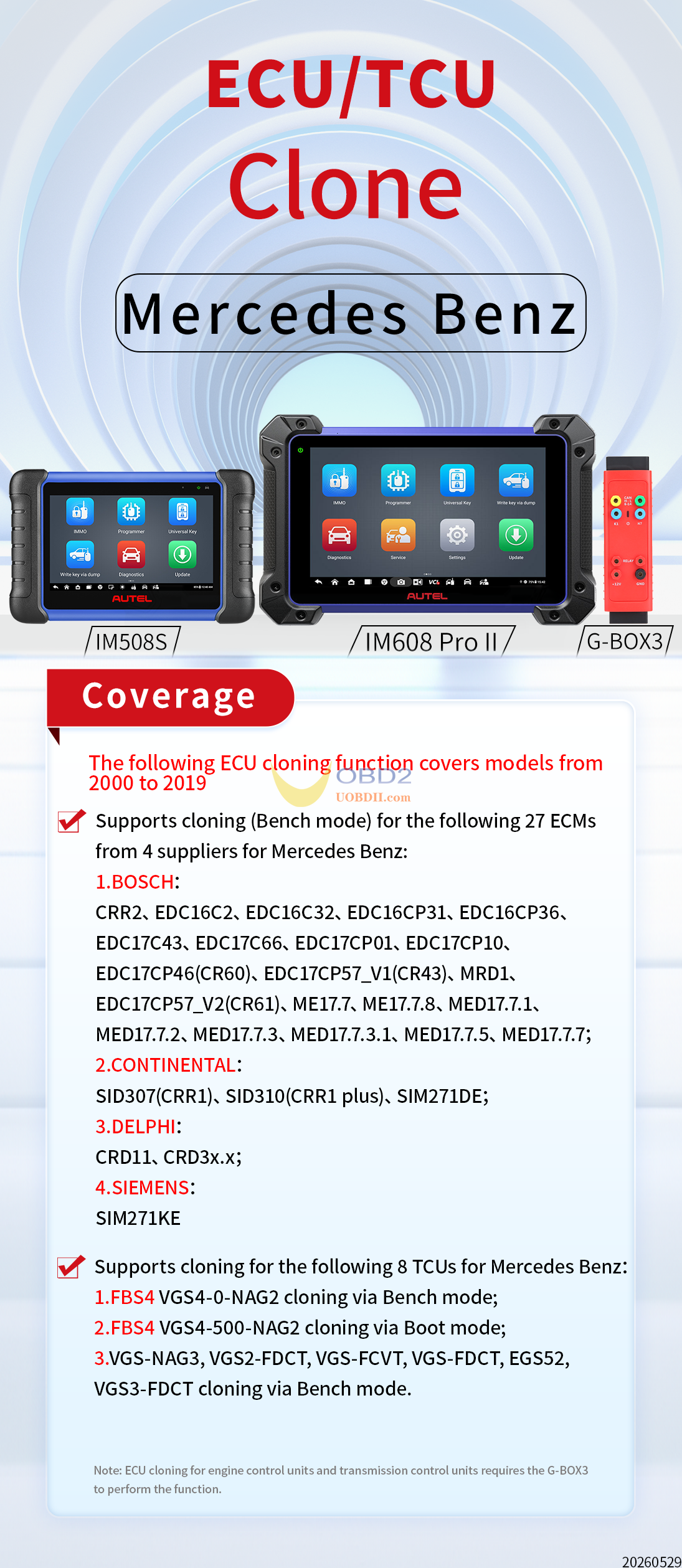

Autel ECU Cloning Function for Mercedes Benz (New Feature)
The following ECU cloning function covers models from 2000 to 2019
Supports cloning (Bench mode) for the following 27 ECMs from 4 suppliers for Mercedes Benz:
BOSCH:
CRR2,EDC16C2,EDC16C32,EDC16CP31,EDC16CP36,EDC17C43,EDC17C66,EDC17CP01,EDC17CP10,EDC17CP46(CR60),EDC17CP57_V1(CR43),EDC17CP57_V2(CR61),ME17.7,ME17.7.8,MED17.7.1,MED17.7.2,MED17.7.3,MED17.7.3.1,MED17.7.5,MED17.7.7,MRD1;
CONTINENTAL:
SID307(CRR1),SID310(CRR1 plus),SIM271DE;
DELPHI:
CRD11、CRD3x.x;
SIEMENS:
SIM271KE
Supports cloning for the following 8 TCUs for Benz:
FSB4 VGS4-0-NAG2 cloning via Bench mode;
FSB4 VGS4-500-NAG2 cloning via Boot mode;
VGS-NAG3,VGS2-FDCT,VGS-FCVT,VGS-FDCT,EGS52,VGS3-FDCT cloning via Bench mode

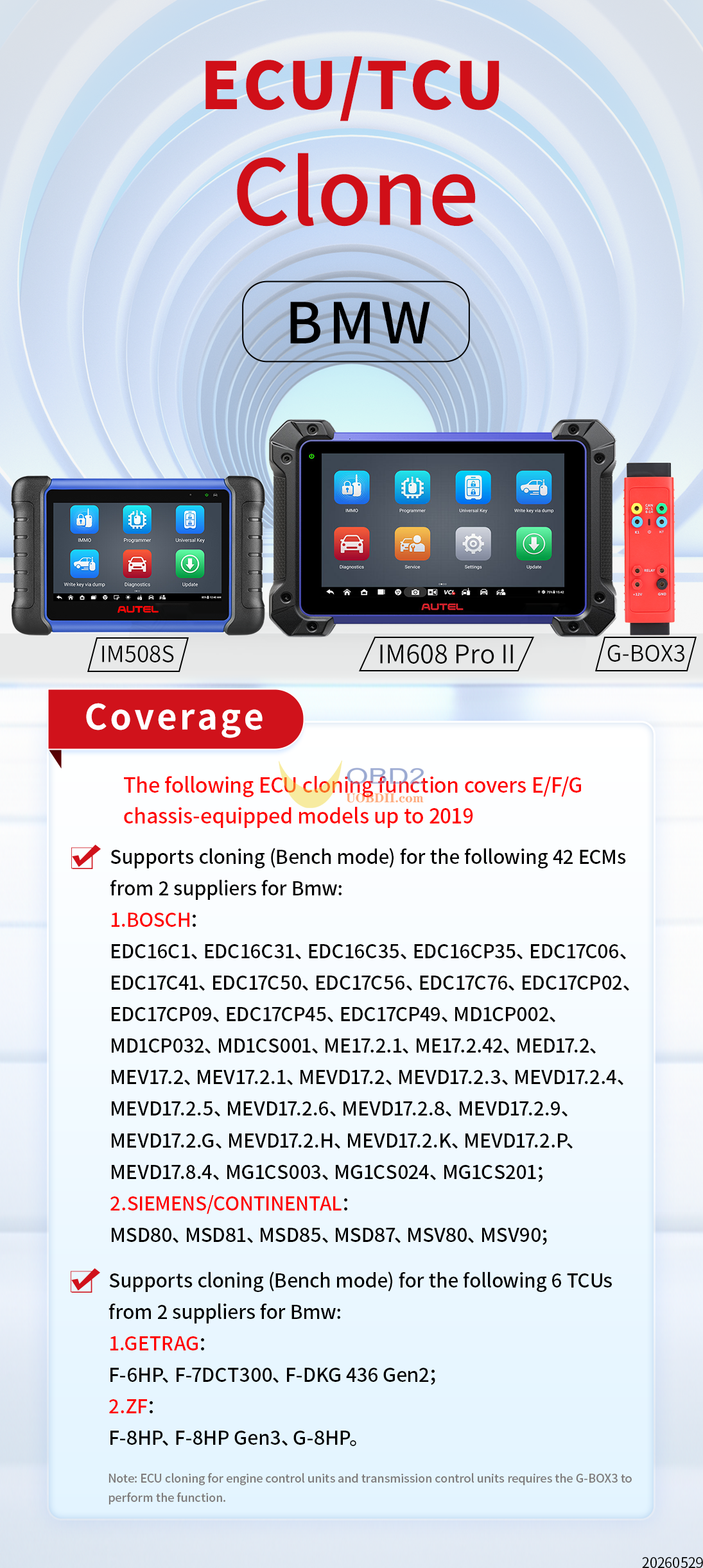

BMW
The following ECU cloning function covers E/F/G chassis-equipped models up to 2019
Supports cloning (Bench mode) for the following 42 ECMs from 2 suppliers for Bmw:
BOSCH:
EDC16C1,EDC16C31,EDC16C35,EDC16CP35,EDC17C06,EDC17C41,EDC17C50,EDC17C56,EDC17C76,EDC17CP02,EDC17CP09,EDC17CP45,EDC17CP49,MD1CP002,MD1CP032,MD1CS001,ME17.2.1,ME17.2.42,MED17.2,MEV17.2,MEV17.2.1,MEVD17.2,MEVD17.2.3,MEVD17.2.4,MEVD17.2.5,MEVD17.2.6,MEVD17.2.8,MEVD17.2.9,MEVD17.2.G,MEVD17.2.H,MEVD17.2.K,MEVD17.2.P,MEVD17.8.4,MG1CS003,MG1CS024,MG1CS201;
SIEMENS/CONTINENTAL:
MSD80,MSD81,MSD85,MSD87,MSV80,MSV90
Supports cloning (Bench mode) for the following 6 TCUs from 2 suppliers for Bmw:
GETRAG:
F-6HP,F-7DCT300,F-DKG 436 Gen2;
TCM ZF:
F-8HP,F-8HP Gen3,G-8HP

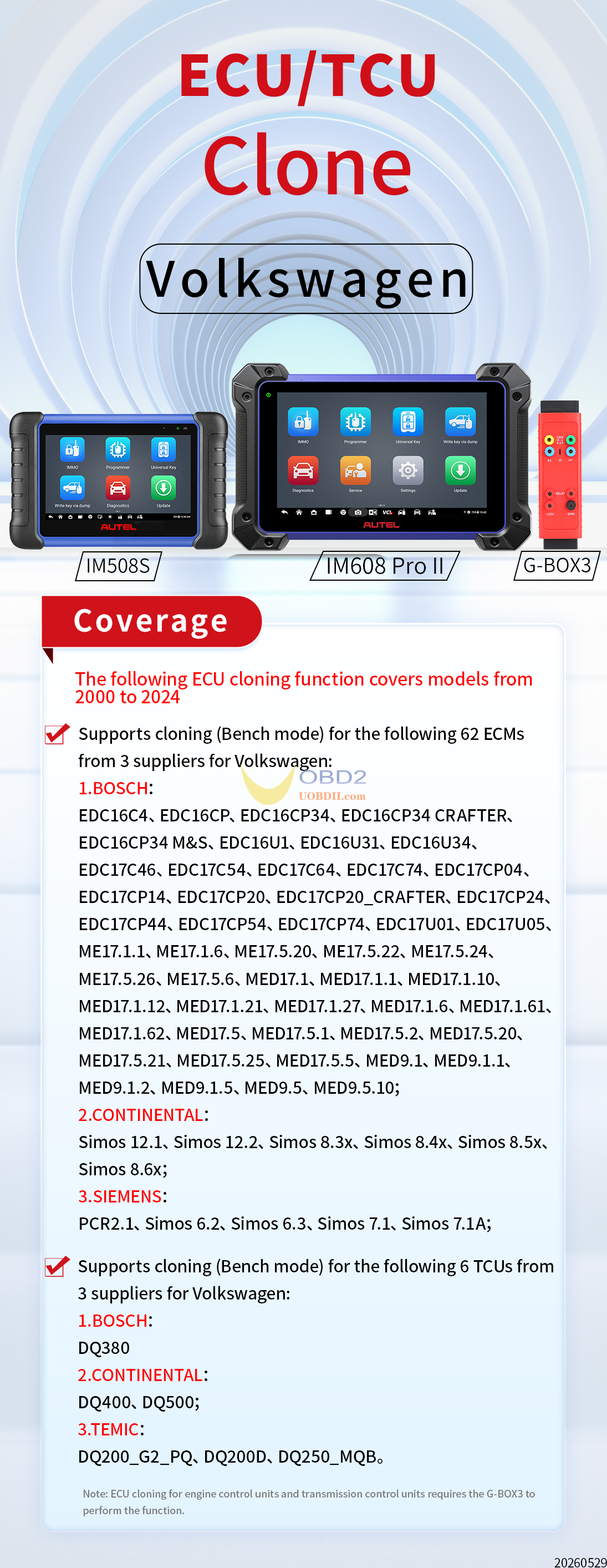

Volkswagen
The following ECU cloning function covers models from 2000 to 2024
Supports cloning (Bench mode) for the following 62 ECMs from 3 suppliers for VAG:
BOSCH:
EDC16C4,EDC16CP,EDC16CP34,EDC16CP34 CRAFTER,EDC16CP34 M&S,EDC16U1,EDC16U31,EDC16U34,EDC17C46,EDC17C54,EDC17C64,EDC17C74,EDC17CP04,EDC17CP14,EDC17CP20,EDC17CP20_CRAFTER,EDC17CP24,EDC17CP44,EDC17CP54,EDC17CP74,EDC17U01,EDC17U05,ME17.1.1,ME17.1.6,ME17.5.20,ME17.5.22,ME17.5.24,ME17.5.26,ME17.5.6,MED17.1,MED17.1.1,MED17.1.10,MED17.1.12,MED17.1.21,MED17.1.27,MED17.1.6,MED17.1.61,MED17.1.62,MED17.5,MED17.5.1,MED17.5.2,MED17.5.20,MED17.5.21,MED17.5.25,MED17.5.5,MED9.1,MED9.1.1,MED9.1.2,MED9.1.5,MED9.5,MED9.5.10;
CONTINENTAL:
Simos 12.1,Simos 12.2,Simos 8.3x,Simos 8.4x,Simos 8.5x,Simos 8.6x;
SIEMENS:
PCR2.1,Simos 6.2,Simos 6.3,Simos 7.1,Simos 7.1A
Supports cloning (Bench mode) for the following 6 TCUs from 3 suppliers for Volkswagen:
BOSCH:
DQ380;
CONTINENTAL:
DQ400、DQ500;
TEMIC:
DQ200_G2_PQ、DQ200D、DQ250_MQB
