Top 3 Jaguar / Land Rover 2015 -2018 AKL Programmers

Recently, the three major manufacturers (Xhorse, Autel, Lonsdor) upgraded the function of 2015-2018 Jaguar Land Rover all keys lost programming, they are: Xhorse VVDI Key Tool Plus, Autel MaxiIM IM608 with XP400 + APA106 (dump mode), Lonsdor K518ISE/ K518S (via OBD). This article will be available with the upgrade description and the operation steps.



Table of Contents:

Top 1. How does VVDI Key Tool Plus Program Land Rover KVM 2015-2018 AKL?

Top 2. Lonsdor K518 program 2015 -2018 Land Rover & Jaguar AKL via OBD

Top 3. Range Rover 2018 AKL with Autel IM608 + XP400 via dump mode



Top 1. How does VVDI Key Tool Plus Program Land Rover KVM 2015-2018 AKL?

Required: XDNP16 Land Rover KVM adapter

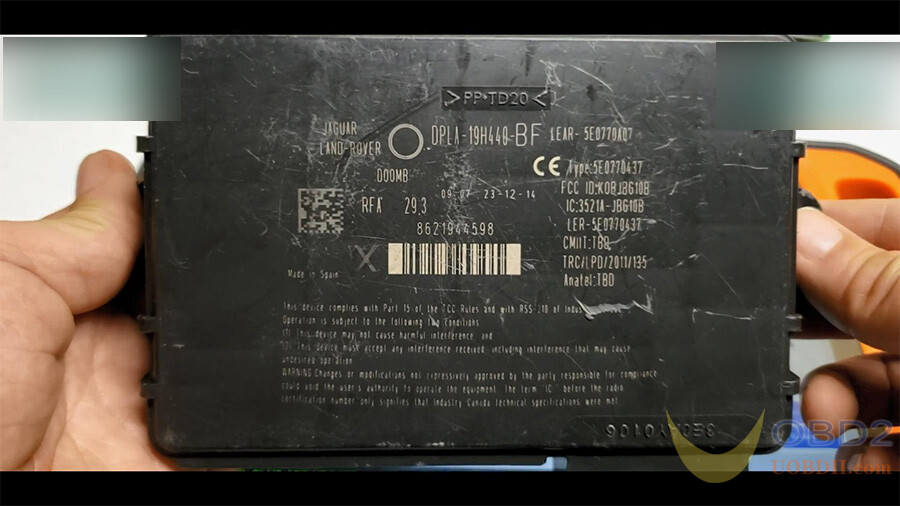

This is the KVM module removed from Jaguar / Land Rover.

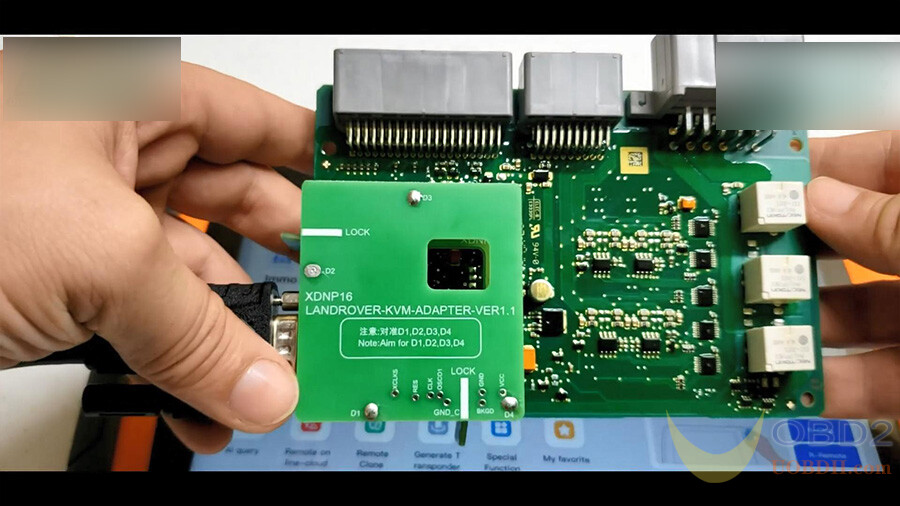

This is the Xhorse XDNP16 Land Rover KVM adapter (Additional purchase)

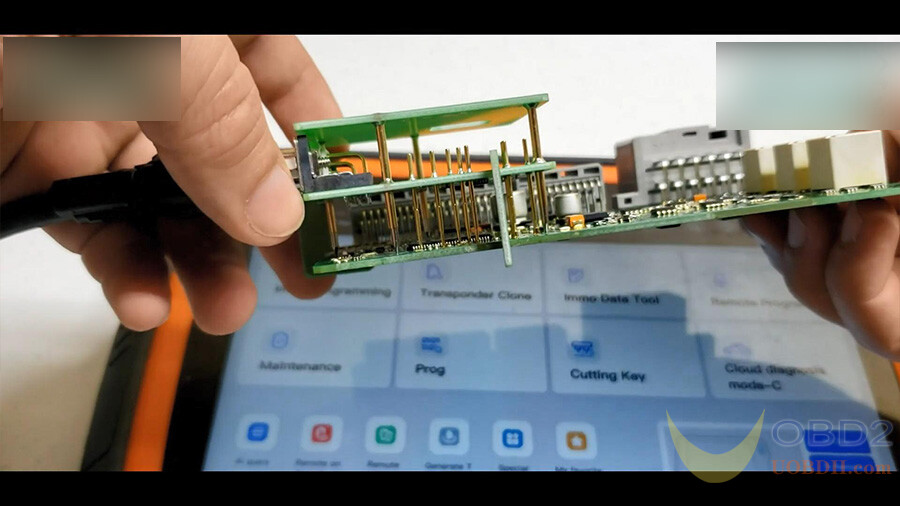

Connect the adapter with Xhore VVDI Key Tool Plus.

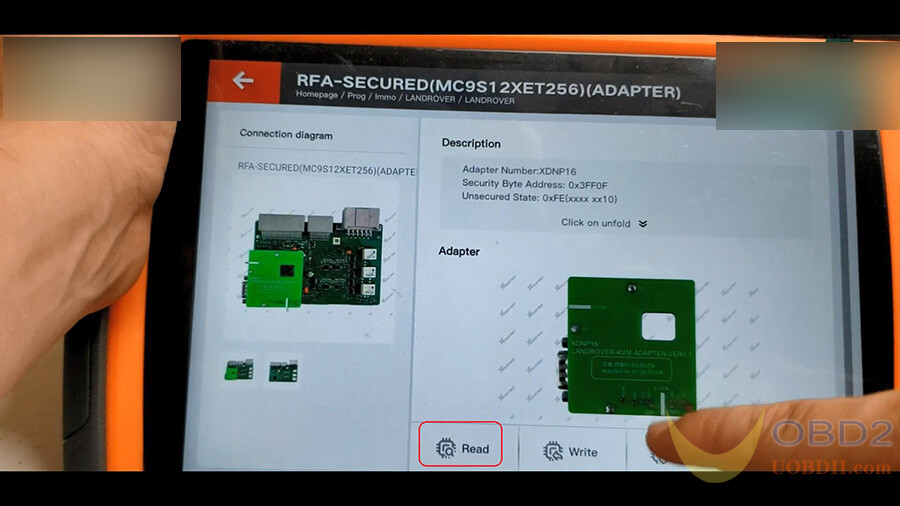

Select “Prog” -> IMMO -> Land Rover -> RFA -Secured (MC9S12XET256) (Adapter)



  1. Read D-FLASH

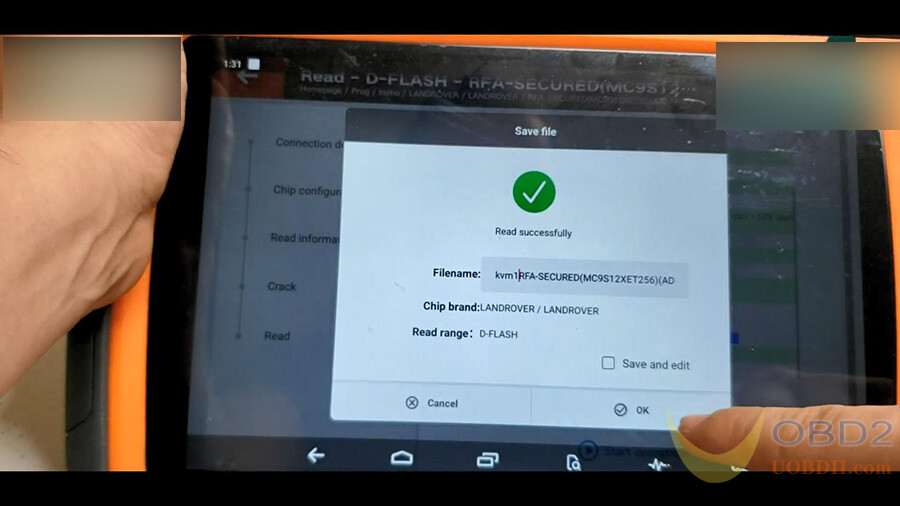

Read -> select “D-FLASH” -> Begin -> Read successfully and save file.



  1. Read EEE

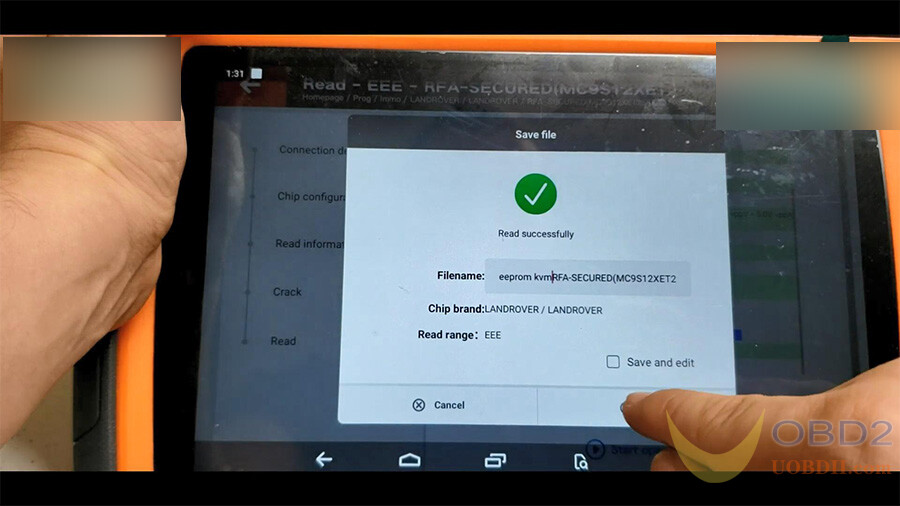

Select “EEE” -> Begin -> Read successfully and save file.

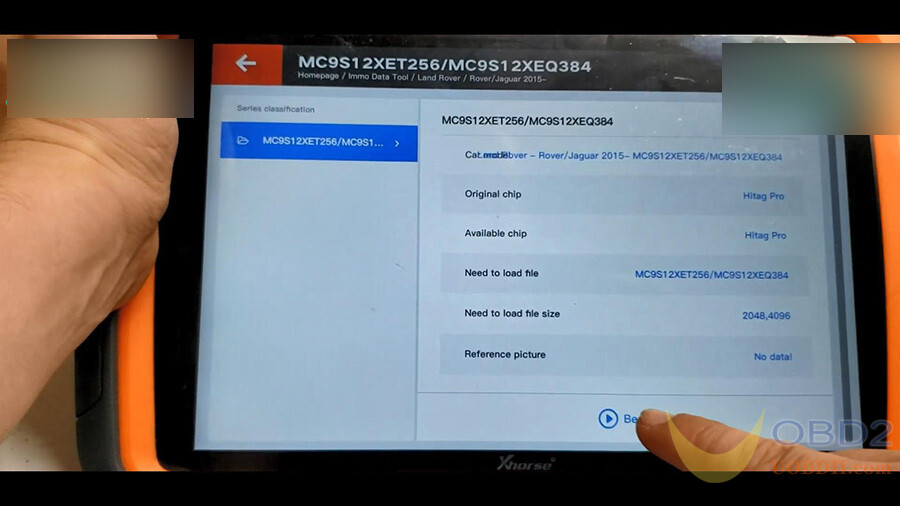

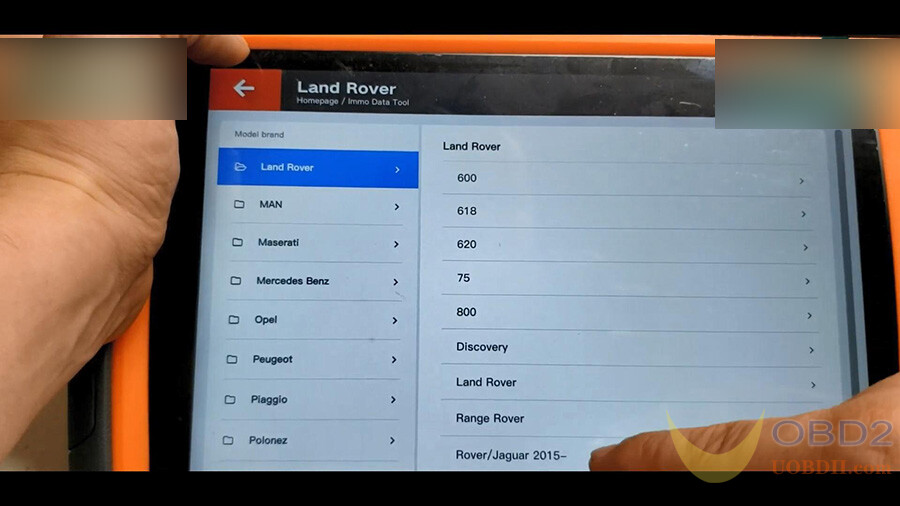

  1. Return to the home menu of key tool plus, select “Immo Data Tool” -> Europe -> Land Rover -> Rover / Jaguar 2015 – MC9S12XET256 / MC9S12XEQ384 – Begin.



Please load FRA DFLASH, select “OK” to continue.

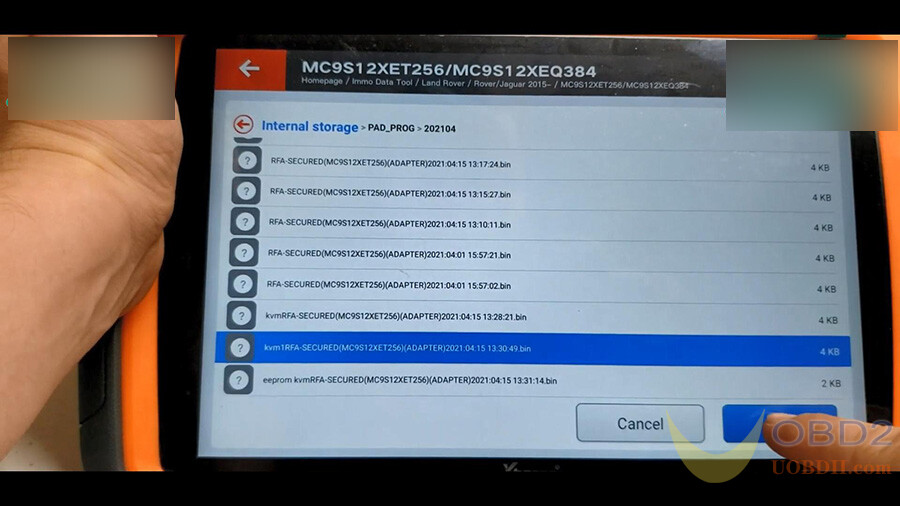

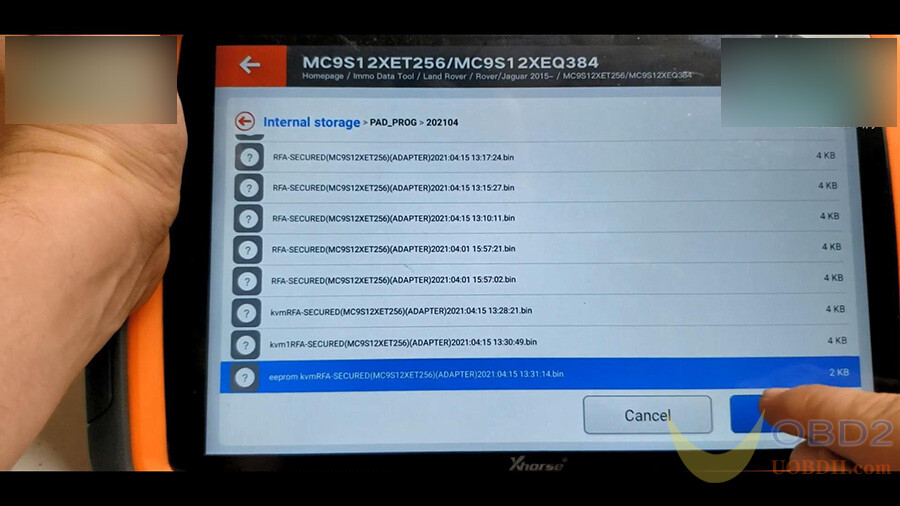

Select the D-FLASH data that is read above and load it.



To load RFA EEPROM.



Do you want to load BCM DFLASH?

If not update this file, the emergence start in CJB/BCM will not work when new key without battery, we click on “No” .



  1. Make dealer key.

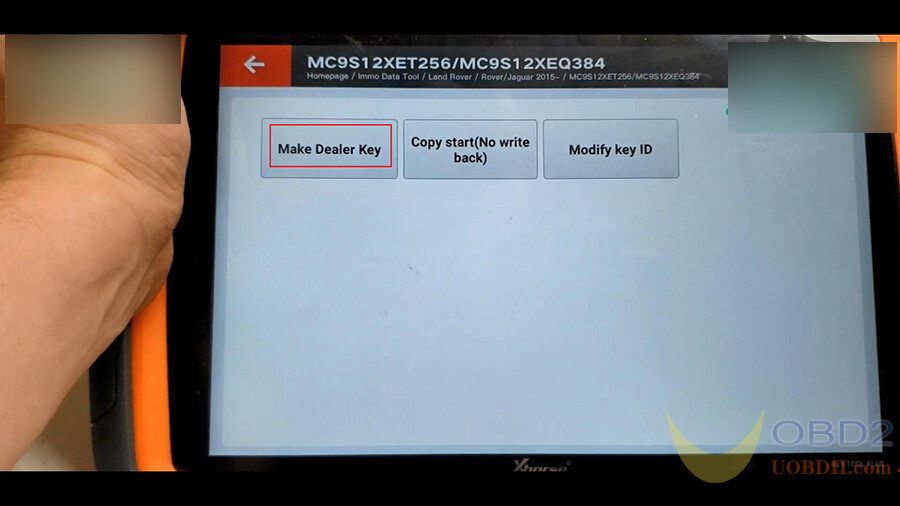

Tap “Make dealer key”.

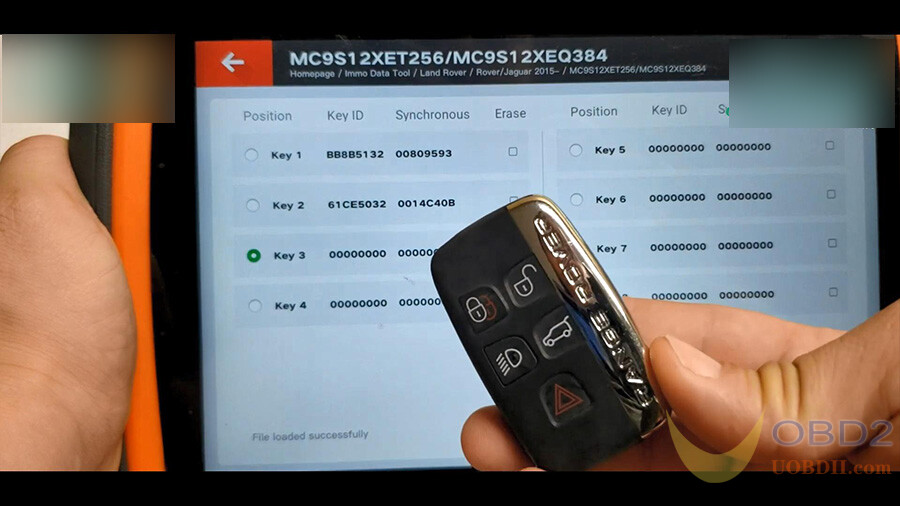

Tick off “Key 3” and put the new key into the keyhole of Key Tool Plus.

Start to make key…

Then select “Save here”.



Prepare dealer key success.

Use programmer to reverse write the newly saved data to RFA mode or BCM mode.

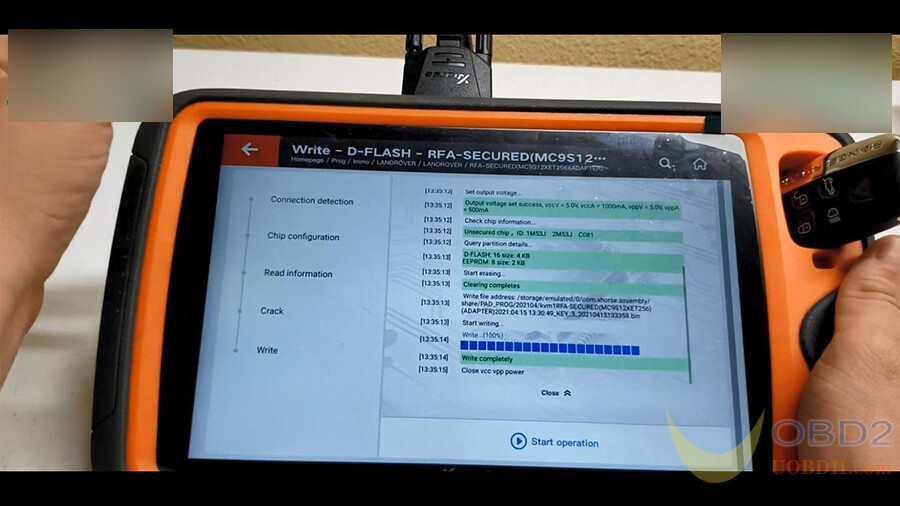

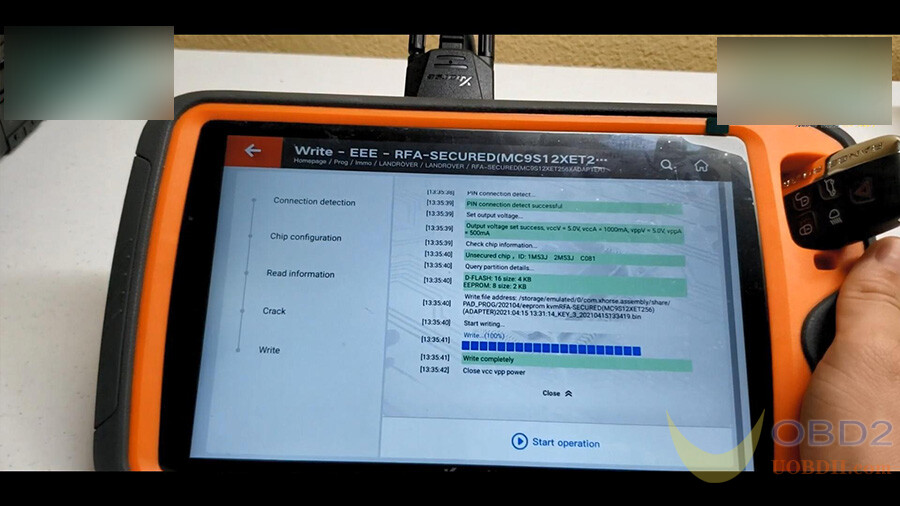

  1. Back to the home menu of the pad, click on “Prog” -> Immo -> Land Rover -> RFA -Secured (MC9S12XET256) (Adapter) ->Write ->D-FLASH -> Begin -> select and write -> Write complete.



In the same method, to write EEE.



Top 2. Lonsdor K518 program 2015 -2018 Land Rover & Jaguar AKL via OBD



Lonsdor K518ISE /K518S JLR update!2015-2018 Land Rover & Jaguar All key lost& Add key by OBD

Free dismantle

Support AKL programming even under alarm state

Support FK72 version

Support emergency start

Support smart start

Limited key available, first come, first served!



Note: This function requires to use Lonsdor specific key & open JLR license.



Lonsdor Smart Key 315MHz/ 433MHz:

*Emergency start
smart entry/start
remote control
All keys lost by OBD

Add Key on FK72 HPLA version: confirmed

All Keys lost on FK72 version: confirmed

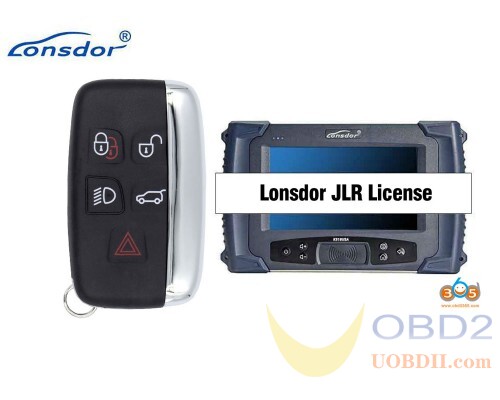

Lonsdor JLR License:

*Please provide the machine serial number to activate, no need shipping.

JLR license is permanent, won’t be expired.



How does Lonsdor K518 to program 2017 Jaguar XFL AKL in alarm state version. FK72?

Open the car door, the buzzer keeps beeping, car is in alarm state.



Prepare Lonsdor Smart Key 315MHz/ 433MHz (above mentioned) and the unlocked key previously programmed on current car, confirm they don’t work before testing.



Tap [All smart key Lost ] -Yes -> No (all keys lost and not original key) -> Yes (to generate key by following the AKL procedure.



Key position [01] generate key – select Lonsdor specific key for Jaguar Land Rover.

Put the specific key (to be programmed) into K518 card slot.

Tick off “Lonsdor dedicated Jaguar /Land Rover key” and tap “Yes” to go on.

Keep the key placed stably, until the 1st key is generated successfully.

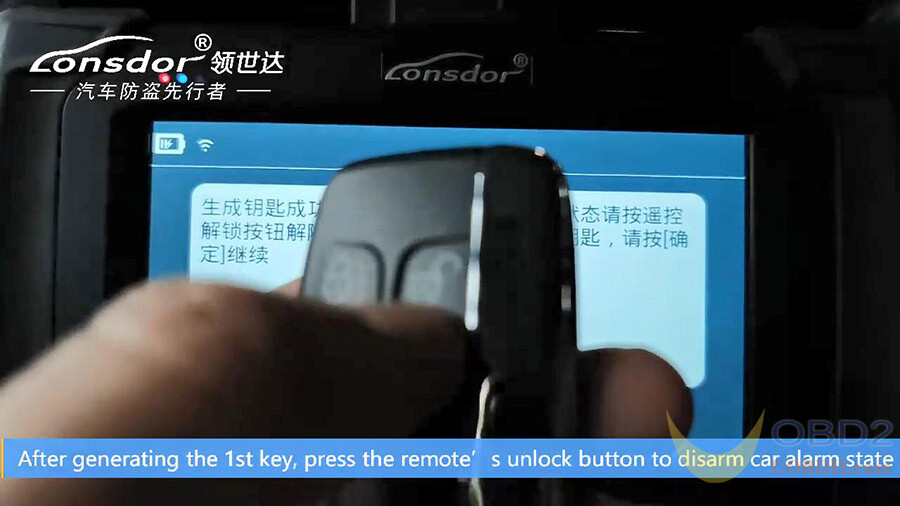

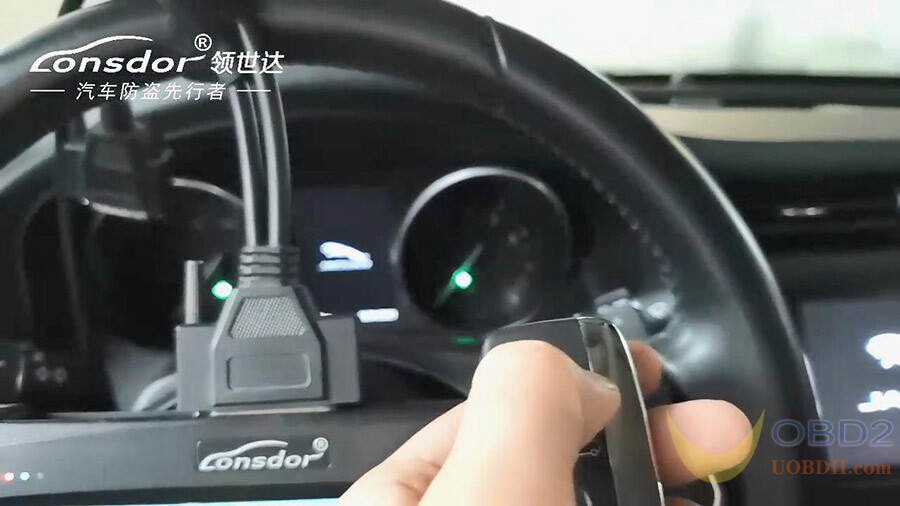

After generating the 1st key, press the remote’s unlock button to disarm car alarm state.



Key position [02] generate key – select the unlocked key previously programmed on current car.

Put the specific key (to be programmed) into K518 card slot.





Tick off ” The current vehicle has been matched with the unlocked original factory or the aftermarket key ” and tap “Yes” to go on.



Failed to generate, because the key was not placed properly, please adjust the key position, retry to generate working key.

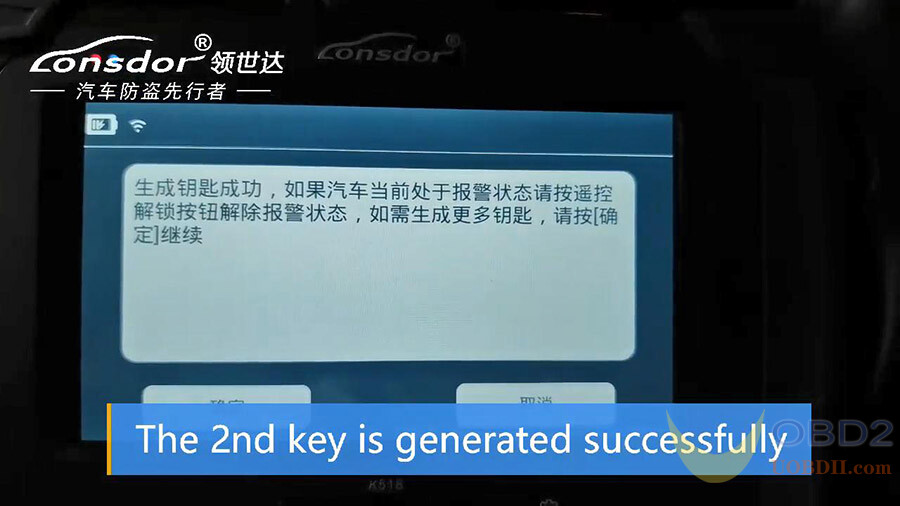

The 2nd key is generated successfully.



Lonsdor K518 Program 2017 Jaguar XFL AKL successfully, please back to the home menu.



Next is to test if the two keys’ remote / smart start function work fine.



Top 3. Range Rover 2018 AKL with Autel IM608 + XP400 (dump mode)

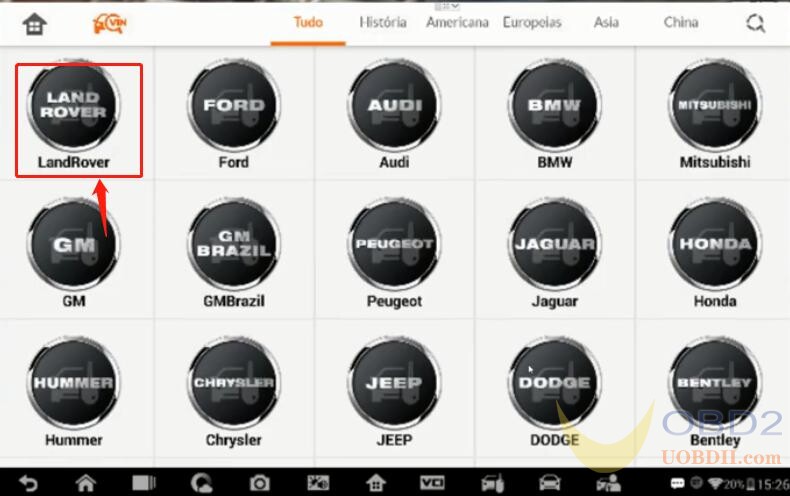

Range Rover 2018 all key lost programming with Autel MaxiIM IM608 and XP400 and APA106 (dump mode), APA106 adapter is contained in the IM608 package.

(Note: If you encounter any type of problem during the process, please upload the datalog on the top-right corner after failing to perform the functions. Please connect your device to the network while performing the following functions.)

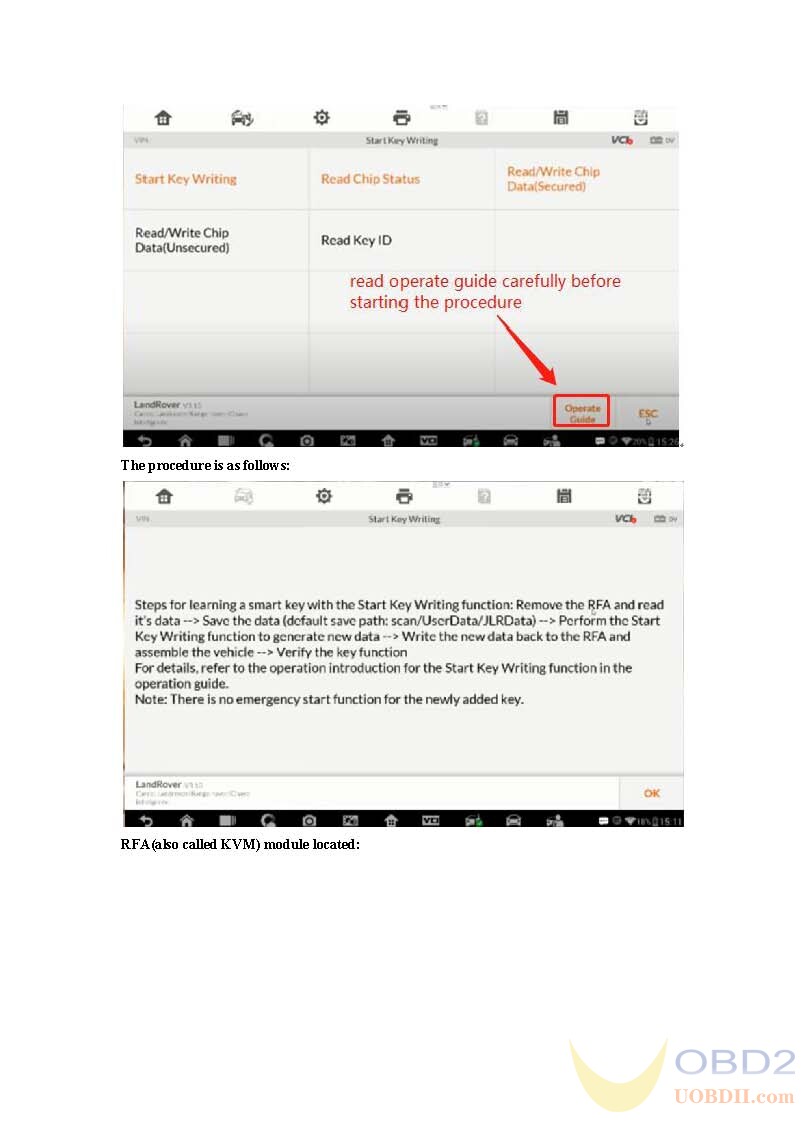

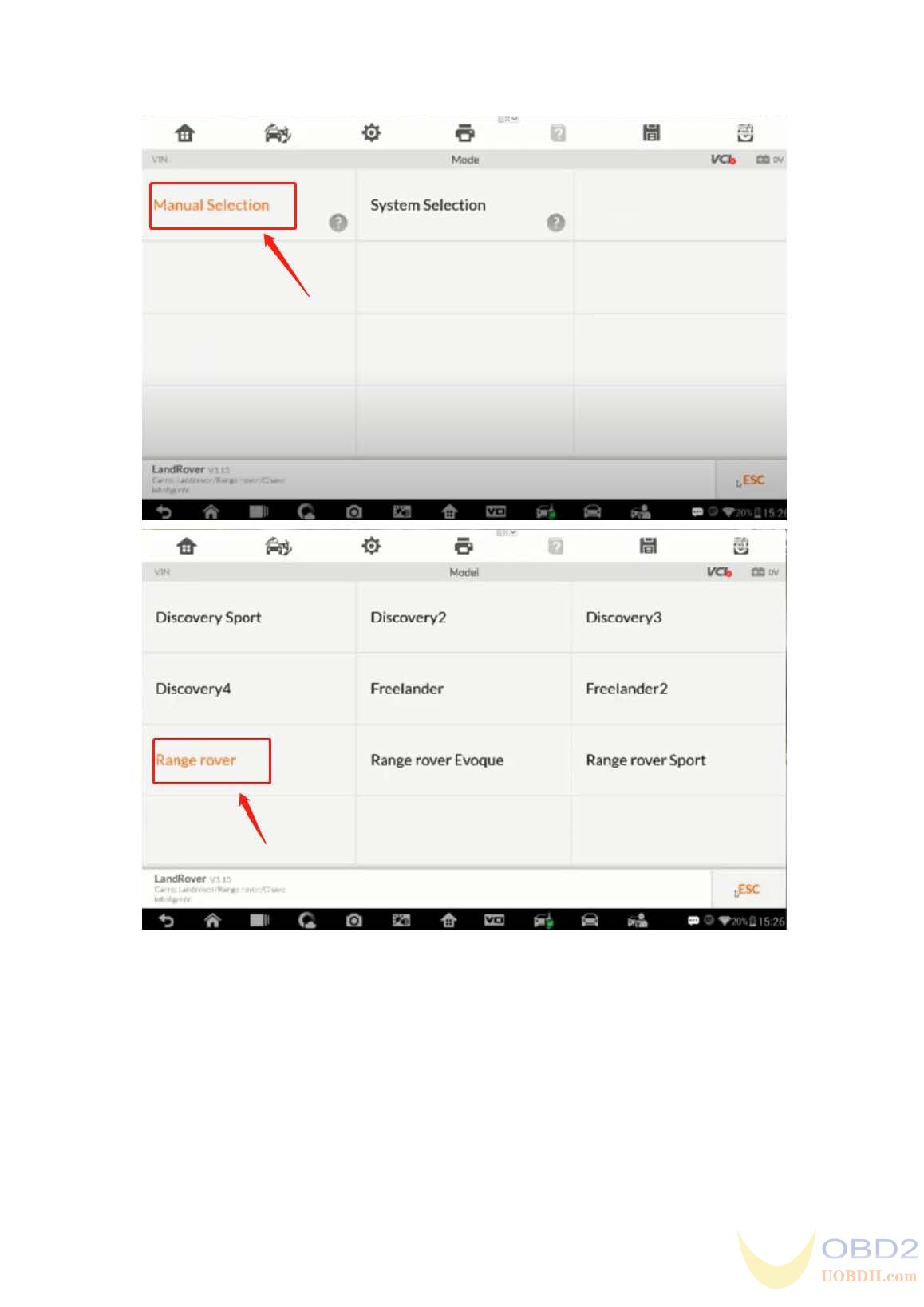

Specific add key(all key lost) procedure is as follows:



RFA(also called KVM) module located (shown as below), remove the module and remove the case.

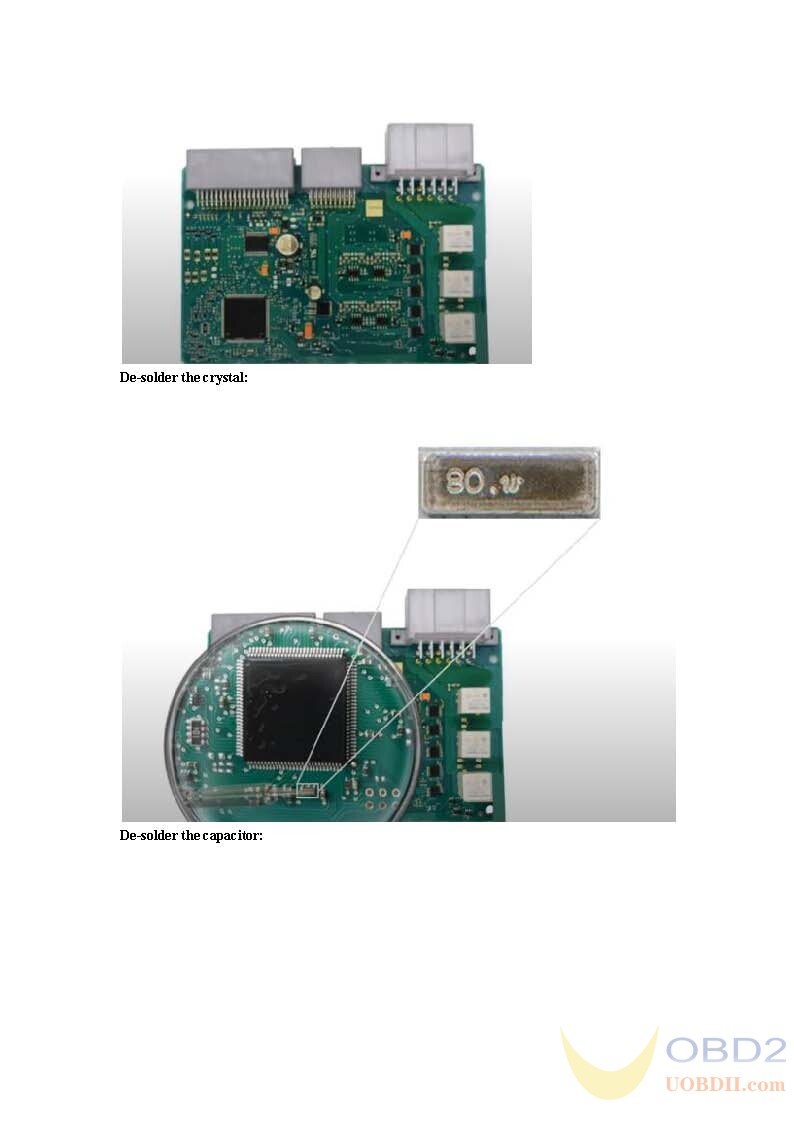

De-solder the crystal and the capacitor.

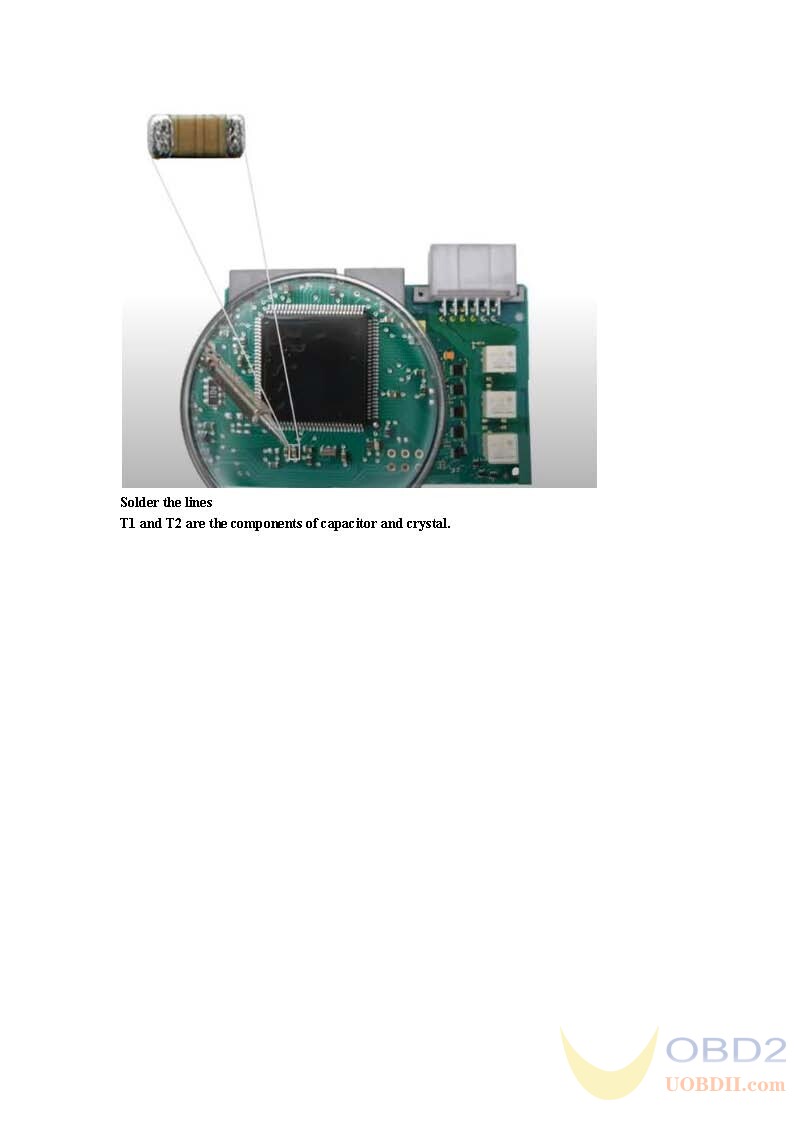

Solder the lines

T1 and T2 are the components of capacitor and crystal.

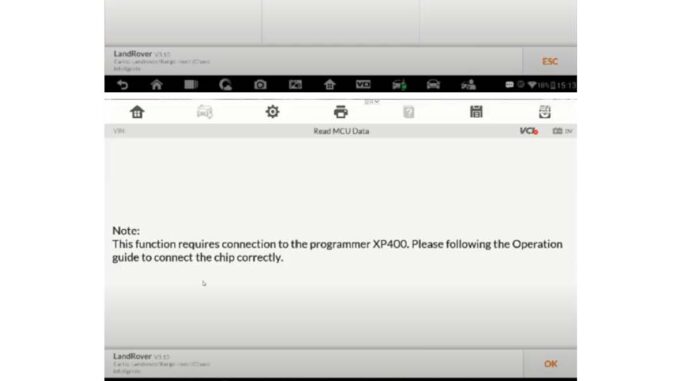

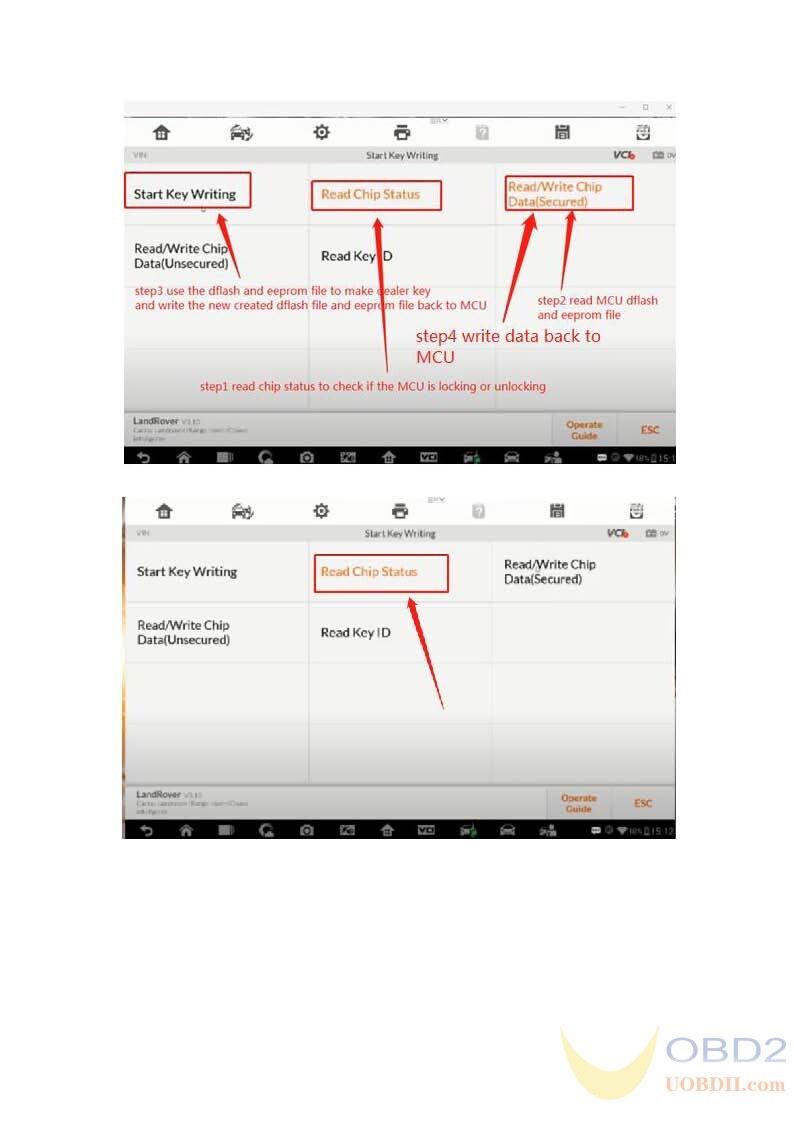

After you have connected the MCU to the programmer XP400 with APA106 cable, click on the go to “Read chip status” Read/Write chip data(secure)(read chip from MCU) Start key writing Read/Write chip data(secure)(write new data back to MCU)

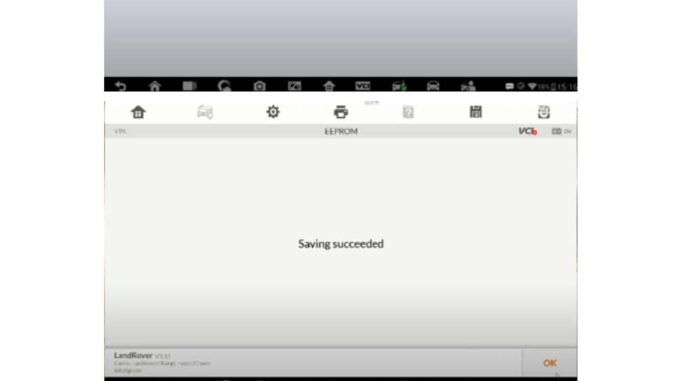

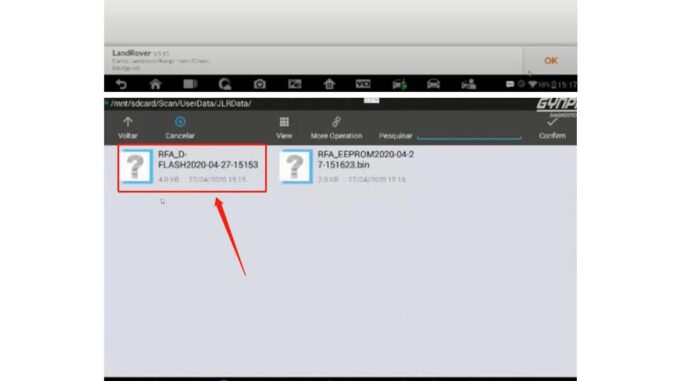

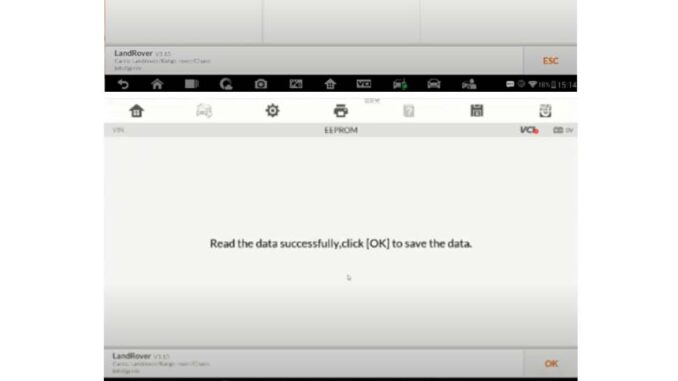

Select the Dflash and EEPROM file that you have saved, Then choose a blank key position ID to make the dealer key.

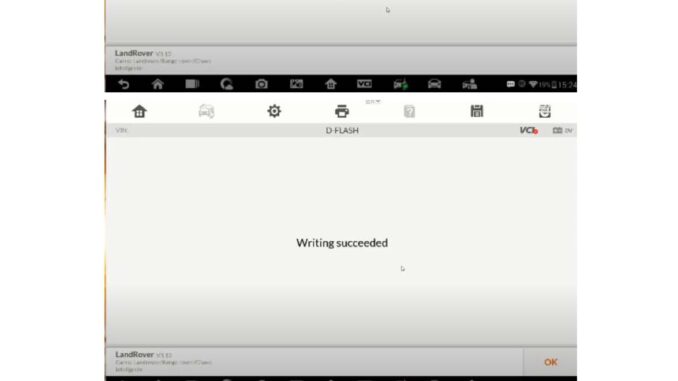

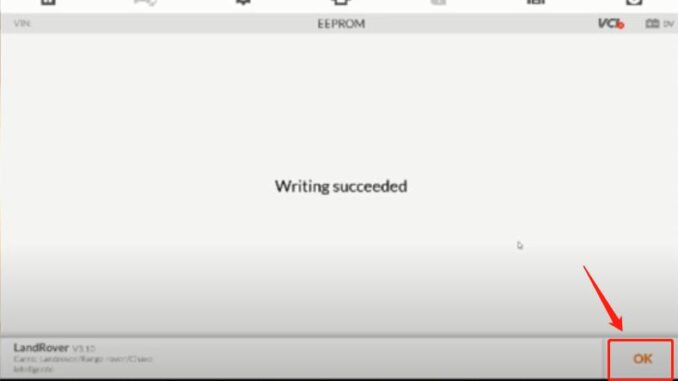

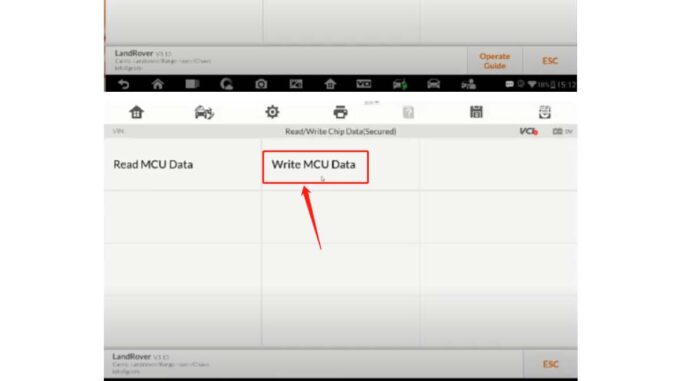

Then go back to the menu Read/write chip Data to write the new created Dflash file and EEPROM file back to the MCU.



Writing key successfully!



All right!



Have a nice day!
