Lonsdor K518 program 2017 Subaru Outback Smart key when AKL

Hey guys, I will show you how to program 2017 Subaru Outback Smart key when all keys lost.

Good to know: for 2017 Subaru Outback, Lonsdor K518S also has the same menu as Lonsdor K518 USA.

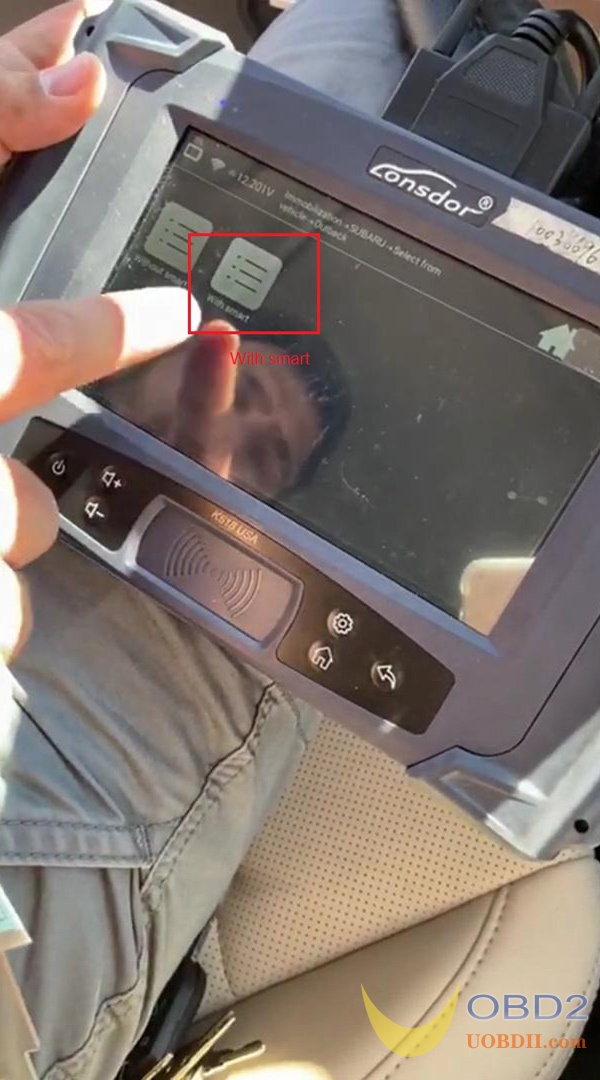

Tap “Immobilization” , then “Subaru”, Select from vehicle -> Outback- With Smart -> 2017 -> Type D (XV).

lonsdor-k518-program-2017-subaru-outback-smart-key-01 lonsdor-k518-program-2017-subaru-outback-smart-key-02lonsdor-k518-program-2017-subaru-outback-smart-key-03 lonsdor-k518-program-2017-subaru-outback-smart-key-04

Tap “Reset PEPS”: this function will reset immo, please open driver door, click OK to continue.

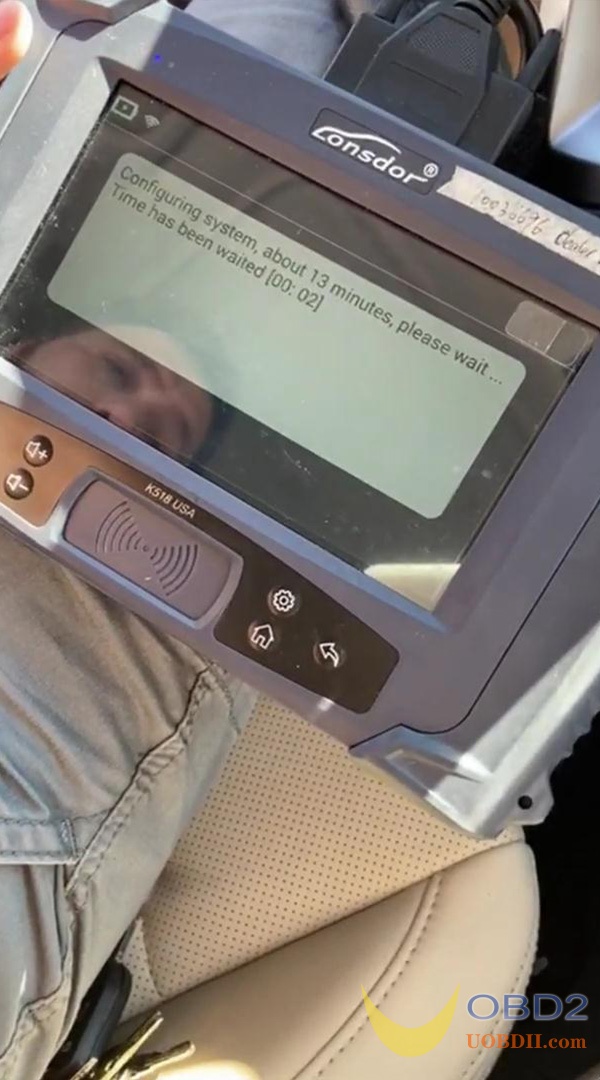

Configuring system, about 13 minutes until it tells reset completed.

lonsdor-k518-program-2017-subaru-outback-smart-key-05-2 lonsdor-k518-program-2017-subaru-outback-smart-key-06-1 lonsdor-k518-program-2017-subaru-outback-smart-key-07-1



Back to tap “Add smart key”.

Follow the on-screen instruction to do: turn on ignition on, then within 30s put the back of the key (to be programmed) close to car start button, when the buzzer beeps twice, please take the key away from the button.

Please switch ignition off, open and close driver door.

lonsdor-k518-program-2017-subaru-outback-smart-key-08 lonsdor-k518-program-2017-subaru-outback-smart-key-09 lonsdor-k518-program-2017-subaru-outback-smart-key-10



Okay, both remote work, the car starts.

Successfully done Subaru Outback all keys lost with Lonsdor K518.

Lonsdor official Help File: SUBARU\Select from vehicle\China\Outback\With smart\2017-



Function:

Add smart key: program and add one key.

Delete smart key: delete the programmed smart key data.

Register smart ECM: after replacing or repairing IMMO box, you need to enter this menu to sync data first.

Register smart ECM: sync ECM data in body ECU with current vehicle data.

Register engine ECM: sync engine ECM with current vehicle data.

Program remote starter: sync the remote starter data.

Bind SKE: bind SKE to a K518 device.

Generate SKE: use immo data to generate key emulator, which can turn on dashboard to add key.

Generate LKE: use immo data to generate key emulator, which can turn on dashboard to add key.

Reset PEPS: initialize PEPS.

Operation

Program process for all smart key lost: 1. dismantle IMMO to read EEPROM, only support 93C86 chip data! Import the data into K518’s customfile folder –> 2. Generate SKE(key emulator)–> 3. Put the SKE close to car start button (dashboard is lit) –> 4. Add smart key

IMMO detection functions:

  1. Check key count

(1) Turn ignition ON, system is communicating… obtaining current key count.

  1. Delete smart key

(1) Turn ignition ON, system is entering deleting mode.

(2) Put a key(to be retained) close to car start button.

(3) Delete is completed.

  1. Add smart key

(1) Turn ignition ON, system is entering adding mode.

(2) Put a programmed key close to car start button.

(3) System is reading current key count…Put a key(to be programmed) close to the start button, and complete programming all keys before the end of progress bar.

(4) Please turn ignition OFF, place the smart key(to be programmed) inside the car, turn ignition ON, but do not open car doors. Program is complete.

  1. Bind SKE

(1) This function can bind the SKE key(SKE_LT series) to K518 host, a necessary step when use SKE.

(2) Please put the key(to be bound) into K518 card slot.

(3) System is binding the key… succeed. You can use this key to program all keys lost.

  1. Generate SKE

(1) This function can generate a backup master key on the condition of all key lost, which is used as a working key to turn on dashboard to add keys.

(2) Obtaining local data backed up…

(3) System is showing current data, and prompts key type.

(4) Put the bound SKE key(corresponding color/model) into K518 card slot, and press once the round button on the key.

(5) Generating… please wait for about 5 mins.

(6) SKE is generated completely, press SKE’s button once, and put it close to car start button, try to turn on dashboard.

  1. Generate LKE

(1) This function can generate a backup master key on the condition of all key lost, which is used as a working key to turn on dashboard to add keys.

(2) Please put a blank LKE into K518 card slot;

(3) Generating…

(4) Please put LKE into K518 card slot, click OK;

(5) Generating…

(6) Key generation completed, please put the generated LKE close to ignition, turn on dashboard, enter [add key] menu to program new key.

Maintenance inspection functions:

(Please be cautious, no need to perform these functions when program key)

  1. Register smart ECM

(1) Turn ignition ON, system is entering registration mode.

(2) Put a key(to be retained) close to car start button. Finished.

  1. Register smart ECM

(1) Turn ignition ON, system is entering registration mode. Finished.

  1. Program remote starter

(1) Turn ignition ON, system is entering registration mode. Finished.

  1. Reset PEPS

(1) This function will reset PEPS, please door.

(2) Communicating…

(3) Configuring system…it takes about 13 mins, please wait.

(4) Reset completely.

Attention

After replacing or repairing IMMO, you need to enter this menu to sync data first and then program key.

ECM registration will make smart key invalid. When operation, please follow system promtps to put the key(to be retained) close to car start button.

Select IMMO detection functions to program key, try not to use maintenance inspection function if possible.

When all keys are lost, you can reset PEPS first, after set completed, go to [add smart key] menu to re-program keys. If reset failed, try to consider using SKE/LKE to do all key lost programming.
