How to use AT200 for BMW N20 read & write ISN and modify VIN?

Guide on how does AT200 programmer work for BMW N20 ISN reading & writing, VIN modification, internal data backup and modules replacement.



AT200 and the parts needed:

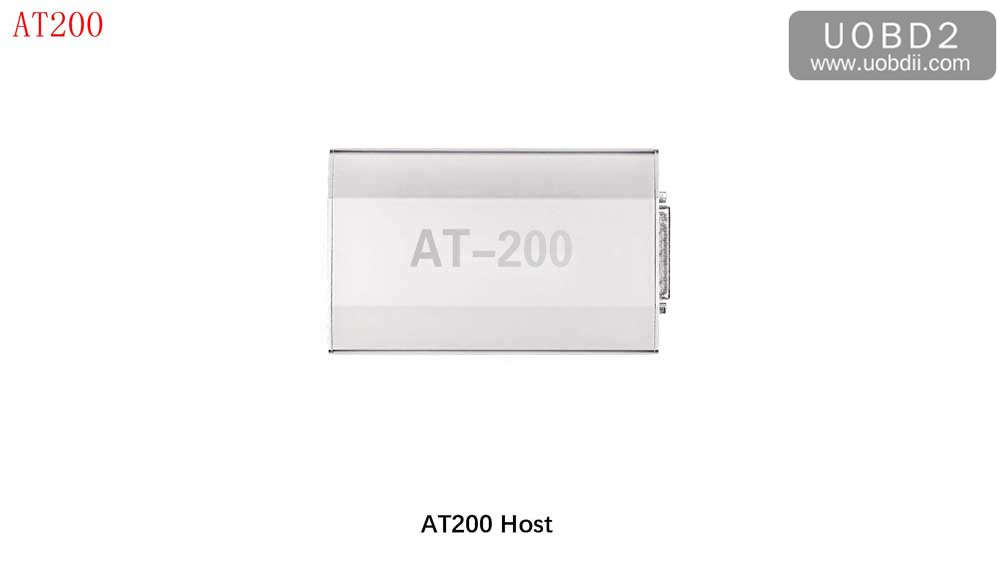

AT200 host

OBD connection Line

Connection Line for platform

at200-on-bmw-n20-isn-read-vin-modification-01 at200-on-bmw-n20-isn-read-vin-modification-02 at200-on-bmw-n20-isn-read-vin-modification-03



Purpose:

  1. Modify the VIN
  2. Read and modify the ISN
  3. Backup internal data and replace modules.



Method:

Via OBD (in the car)

On Bench ( if disassembly operation)



Procedure:

Access power and USB cable before using the device.

at200-on-bmw-n20-isn-read-vin-modification-04



Open the software initialization interface.

at200-on-bmw-n20-isn-read-vin-modification-05



Click on the BMW option.

at200-on-bmw-n20-isn-read-vin-modification-06



Click on “4 series (F32)” option.

at200-on-bmw-n20-isn-read-vin-modification-07

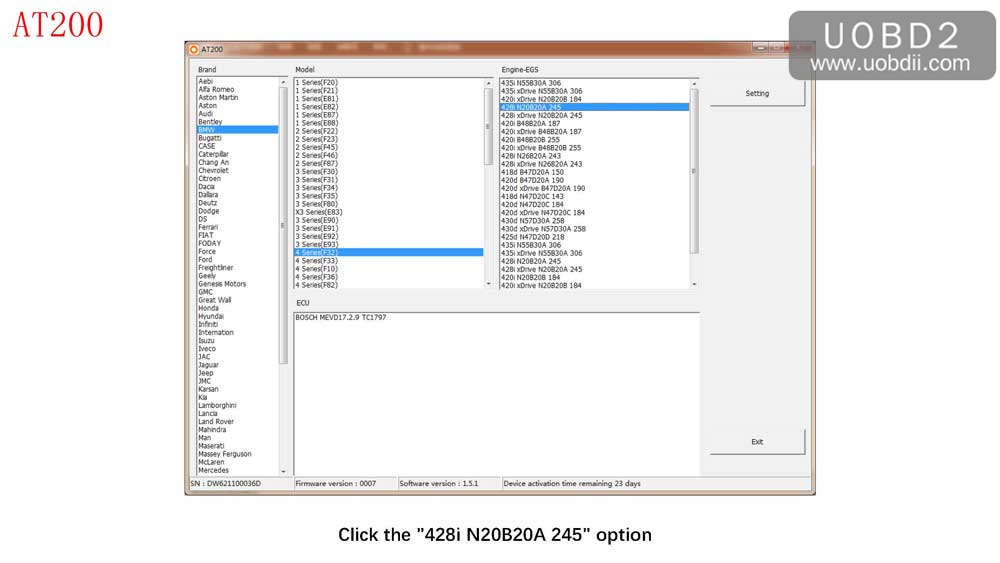

Click on “428i N20B20A 245” option.

at200-on-bmw-n20-isn-read-vin-modification-08



Click on “Bosch MEVD17.2.9 TC1797”.

at200-on-bmw-n20-isn-read-vin-modification-09



If operating in a car, select “OBD”; if disassembly operation, select “Bench”. What follow is a demonstration of the Bench operation.

at200-on-bmw-n20-isn-read-vin-modification-10



Click on “Wiring diagram” and connect the platform line according to the wiring diagram.

at200-on-bmw-n20-isn-read-vin-modification-11



The platform on which the wires are connected according to the wiring diagram.

at200-on-bmw-n20-isn-read-vin-modification-12



Click on “identify” and the engine is identified successfully.

at200-on-bmw-n20-isn-read-vin-modification-13



Part 1: Modify the VIN.

Click on the “Modify VIN” option, please save the data after the device operation.

at200-on-bmw-n20-isn-read-vin-modification-14



Read the original VIN, enter the required VIN, and click on “OK”.

at200-on-bmw-n20-isn-read-vin-modification-15



Successful modification of VIN.

at200-on-bmw-n20-isn-read-vin-modification-16



Click on “Read ISN” option, AT200 device operation is successful, ISN reading successfully.

at200-on-bmw-n20-isn-read-vin-modification-17



Part 2: Read and modify the ISN.

Click on “Write ISN” to save the data after the device operation.

at200-on-bmw-n20-isn-read-vin-modification-18

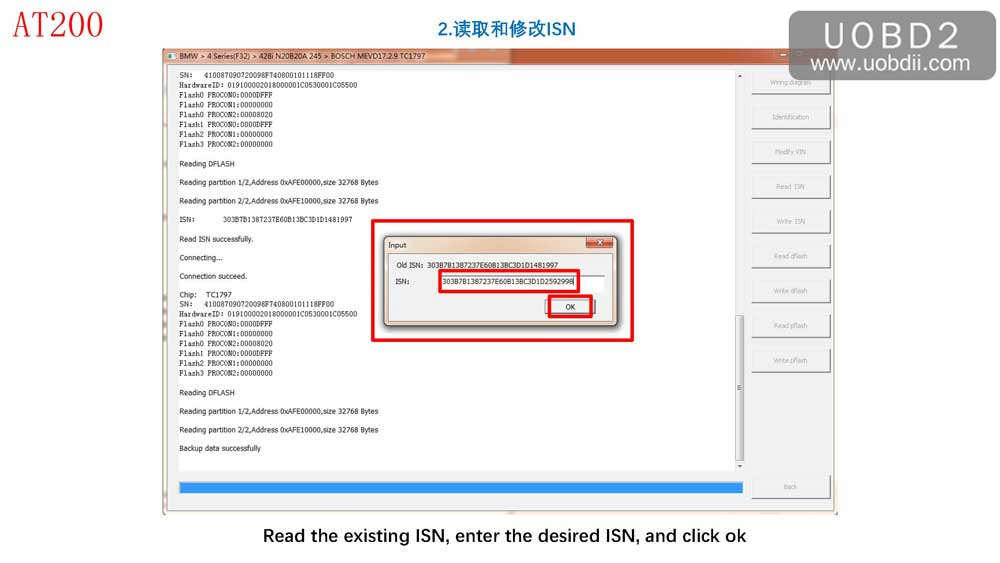

Read the existing ISN, enter the desired ISN, and click on “OK”.

at200-on-bmw-n20-isn-read-vin-modification-19



Write ISN successfully.

at200-on-bmw-n20-isn-read-vin-modification-20



Part 3: Backup internal data and replace modules.

Backup internal data, read and save DFLASH and PFLASH.

at200-on-bmw-n20-isn-read-vin-modification-21



Module replacement requires both DFLASH and PFLASH to be written.

at200-on-bmw-n20-isn-read-vin-modification-22



Done.



Thanks to BMW AT200 programmer for what it can do.
