Yanhua ACDP2 Read and Write Nissan 07A Gearbox on Bench

January 9, 2026 uobdii Car Key Programmer 0

How to use Yanhua ACDP2 to read and write Nissan 07A gearbox?

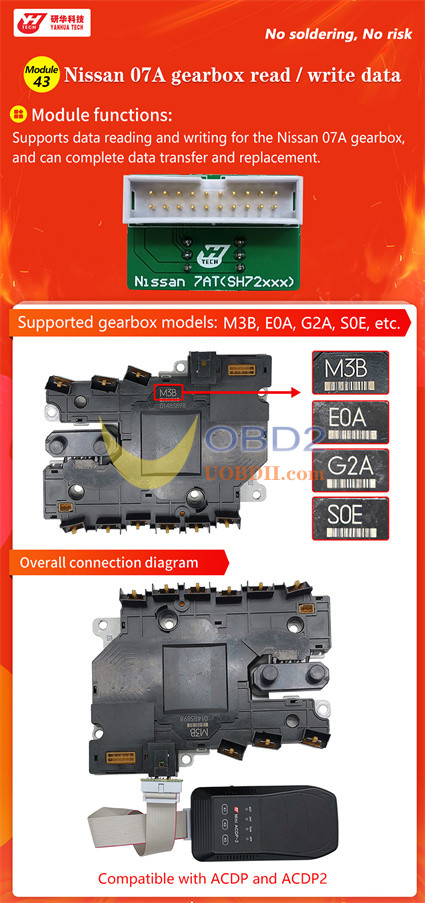

Yanhua Module 43 is required. It can work with ACDP/ACDP2 to perform data reading and writing for Nissan 07A gearbox (M3B, E0A, G2A, S0E) directly on bench, and complete data transfer and replacement.

yanhua-acdp2-read-write-nissan-07a-gearbox-1

Check the step-by-step guide below.

1.Run ACDP-II software and ensure ACDP device is bound

2.Select Module > Nissan TCM R/W data > RE7R01A (07A SH72xxx).

3.Click the “Help” button to check the connection diagram

yanhua-acdp2-read-write-nissan-07a-gearbox-2

4.Prepare all tools below:

5.Align the 7AT interface board with the transmission plug

yanhua-acdp2-with-module-43-read-write-nissan-07a-3

6.Short the jumper cap to the “CAN-R” port as marked.

7.Use 20P cable to connect Yanhua ACDP Module 43 and ACDP2

yanhua-acdp2-with-module-43-read-write-nissan-07a-4

8.Make sure Yanhua ACDP2 connect to original gearbox correctly

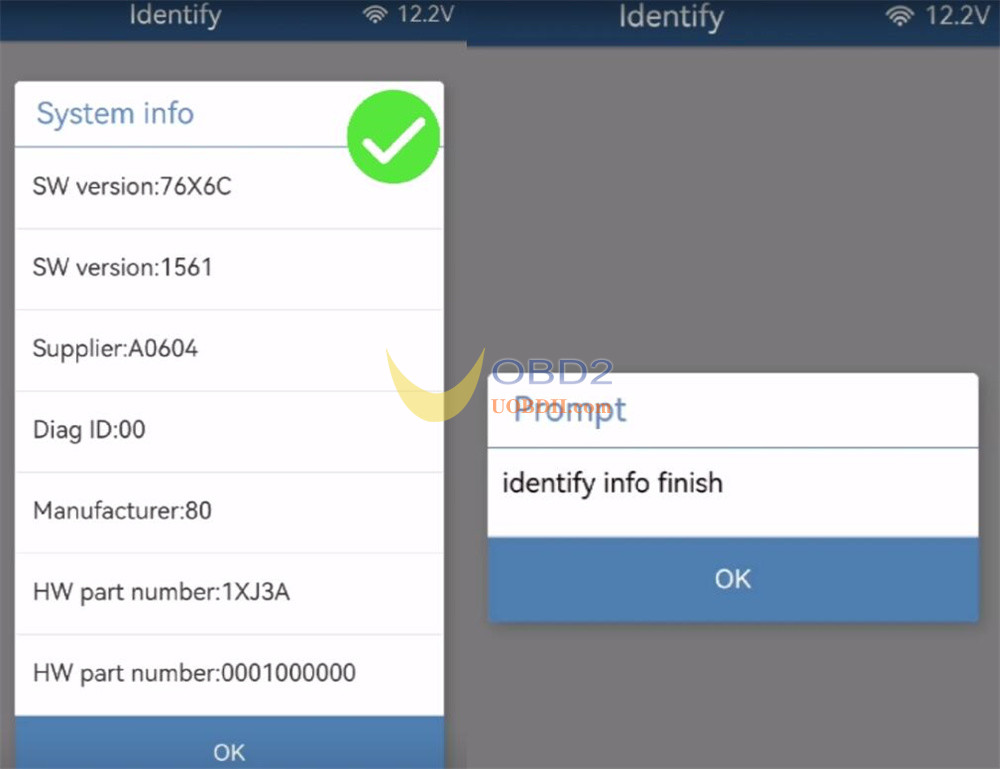

9.Select “Identify” to verify the gearbox (RE7R01A) system information is correct

yanhua-acdp2-with-module-43-read-write-nissan-07a-5 yanhua-acdp2-with-module-43-read-write-nissan-07a-6

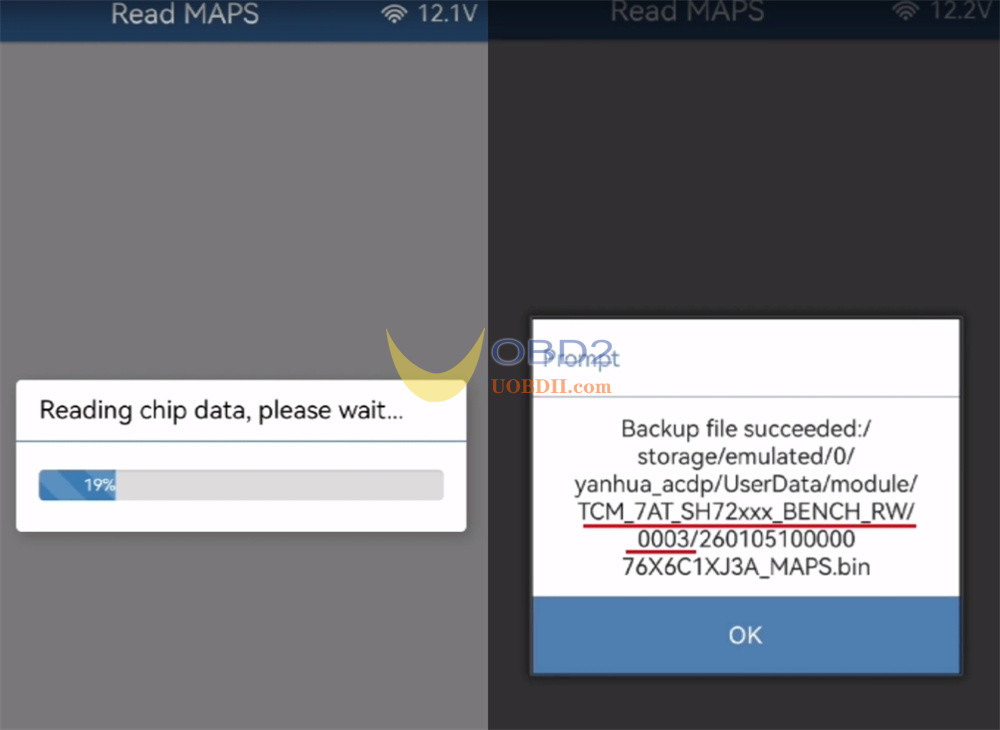

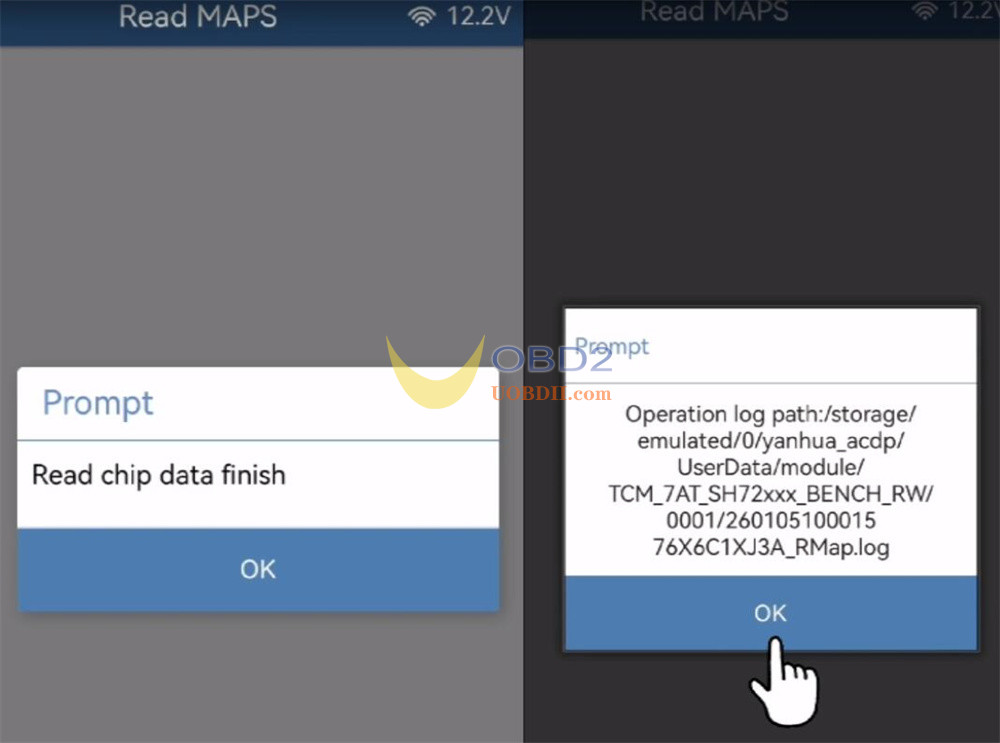

10.Select “Read MAPS” to read and save the MAPS data

yanhua-acdp2-with-module-43-read-write-nissan-07a-7 yanhua-acdp2-with-module-43-read-write-nissan-07a-8

11.Disconnect the original Nissan gearbox, and connect Mini ACDP2 to the replacement Nissan gearbox.

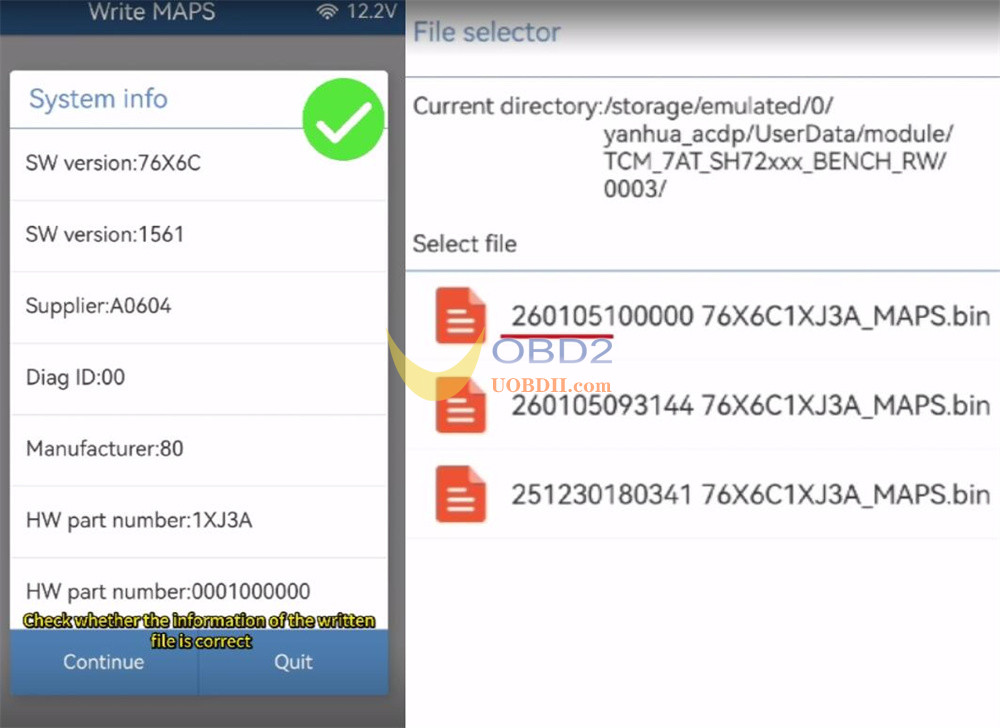

12.Select “Write MAPS”, confirm the new gearbox system info is correct

13.Choose the correct original gearbox backup file to write into the new gearbox

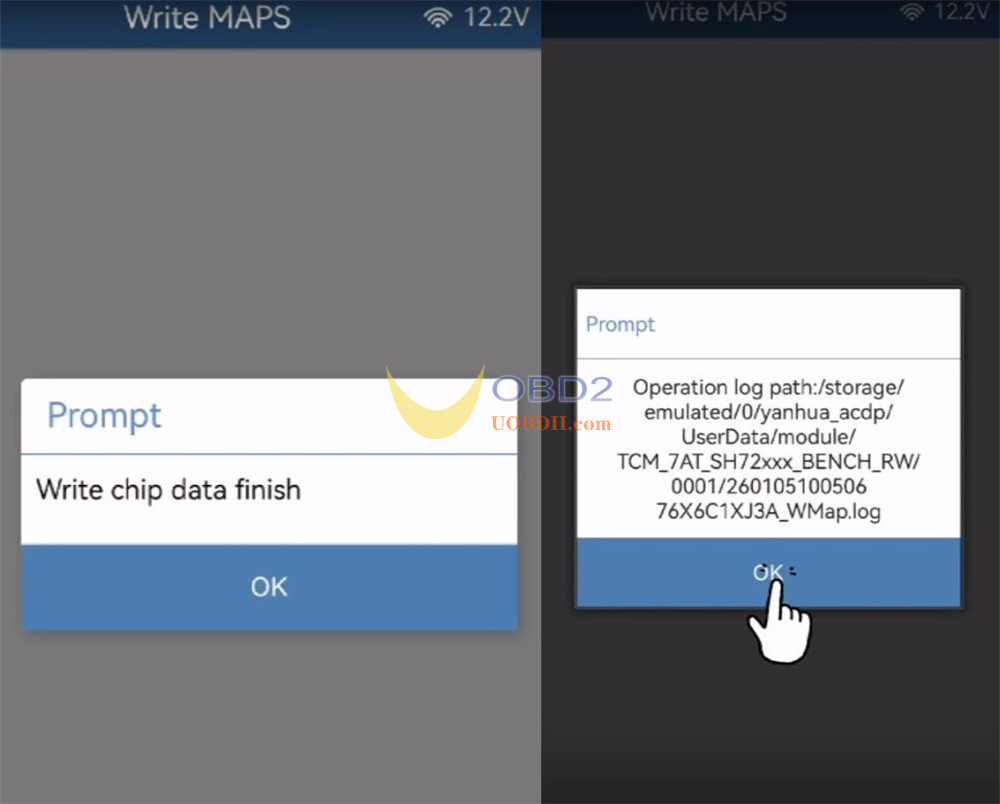

14.Wait the chip data writing is complete

yanhua-acdp2-with-module-43-read-write-nissan-07a-9
