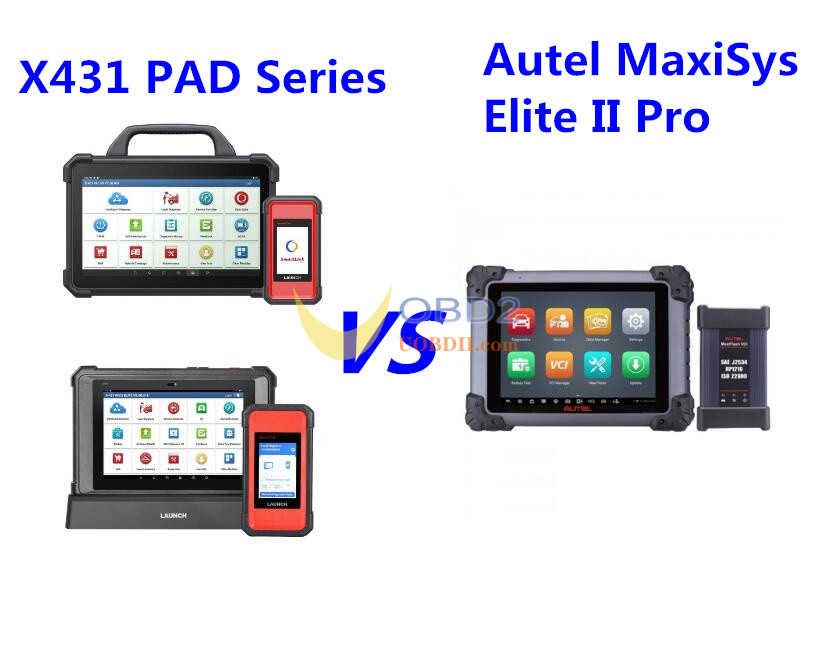

What is the difference between Launch X431 PAD series tablets (PAD5/PAD7) and Autel MaxiSys Elite II Pro diagnostic tool? Check the comparison info below:
Comparison table:
| Product | X431 PAD V ELITE | X431 PAD VII ELITE | Autel MaxiSys Elite II Pro |
| Image |  |
 |
 |
| Hardware configuration | |||
| CPU | 2.0GHz 8-core | 2.0GHz 8-core | 8-core (2.2GHz 4-core + 1.8GHz 4-core) |
| Operating System | Android 11 | Android 9 | Android 10 |
| Memory (RAM) | 4GB | 8GB | 4GB |
| Storage | 256GB | 256GB | 128GB |
| Display | 10.1 inch | 13.3 inch | 9.7 inch |
| Resolution | 1920×1200 | 1920×1080 | 2048×1536 |
| Front Camera | 8 MP | 8 MP | – |
| Rear Camera | 13 MP | 13 MP | 16 MP |
| Operating Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
| Communication | Wi-Fi/Bluetooth/USB | Wi-Fi/Bluetooth/USB | Wi-Fi/Bluetooth/USB |
| Battery | 9360mAh, 3.8V | 9360mAh, 7.6V | 11000mAh, 3.7V |
| Software Function | |||
| Full System Diagnosis | Yes | Yes | Yes |
| VIN Code Auto Recognition | Yes | Yes | Yes |
| Special Functions | 41 (including multi-VIN detection and immobilizer programmer) | 41 (including multi-VIN detection and immobilizer programmer) | 40 |
| Actuation Test | Yes | Yes | Yes |
| VAG Guided Functions | Yes | Yes | Yes |
| BMW Guided Functions | Yes | Yes | – |
| ECU Coding | Yes | Yes | Yes |
| ECU Programming | Yes | Yes | Yes |
| Repair Information | Yes | Yes | Yes |
| Remote Diagnosis | Yes | Yes | Yes |
| J2534, D-PDU/RP1210 | Yes | Yes | Yes |
| DoIP, CAN FD | Yes | Yes | Yes |
| Gateway Unlock | Yes (FCA/Renault/VAG/
European BENZ) |
Yes (FCA/Renault/VAG/
European BENZ) |
Yes (FCA/Renault) |
| Paid Database | Yes (HaynesPro) | Yes (HaynesPro) | Yes (MOTOR) |
| Topology Map | Yes | Yes | – |
| Diagnostic Feedback | Yes | Yes | Yes |
| Software Mall | Yes | Yes | – |
| ADAS Calibration, TPMS, Key Programmer, Immobilizer, Oscilloscope, Sensor, Multimeter, Insulation Tester, Current Clamp (Optional/Expandable) | Yes (Optional) | Yes (Optional) | – |
| Endoscope, Battery Detection Clamp (Optional/Expandable) | Yes (Optional) | Yes (Optional) | Yes (Optional) |
| Free Software Upgrade Period | 2 Years | 2 Years | 2 Years |
| Languages | 23+ | 23+ | 21+ |
| Data Stream (PIDS) | 4-IN-1 | 4-IN-1 | 5-IN-1 |
| Software Packages (Optional Expansion) | New Energy, Commercial Vehicles, Immobilizer, Motorcycle | New Energy, Commercial Vehicles, Immobilizer, Motorcycle | Commercial Vehicles |
Launch X431 PAD V VS X431 PAD VII:
Both support the same functions, the main difference is that X431 PAD 7 has larger display and memory.
Compared to MaxiSys Elite II Pro, X431 PAD series has the advantages below:
- Support BMW guided functions, which Autel Elite II Pro does not offer.
2.Provide topology map capability, a feature unavailable on Elite II Pro.
3.Offer paid access to unlock gateways for FCA, Renault, VAG, and European Mercedes-Benz, along with the HaynesPro database, while Elite II Pro only supports FCA/Renault gateway unlocking and the MOTOR database.
4.Support expansion with various software packages (New Energy, Commercial Vehicles, Immobilizer, Motorcycle) and multiple hardware modules. Elite II Pro is limited to only endoscope and battery detection clamp modules.
5.Feature superior hardware specifications, including:
- Higher RAM capacity (up to 8GB)
- Larger storage (256GB vs 128GB)
- More advanced camera systems
6.Support 23+ languages, but Elite II Pro supports 21+ languages.
Launch X431 PAD Series Core Abilities:
- Smartlink Remote Diagnosis
- Topology Map
- High-Speed Scanning
- Diagnostic Plan
- HaynesPro Repair Database
- SGW Gateway
- Pin Detection
- CAN Analysis
- Protocol Support: CAN / CAN FD / DoIP / J2534
- ECU Programming
- Mall (New Energy Vehicles, Commercial Vehicles, Immobilizer Systems, Motorcycles software)
- Add-on Modules
Suggestion:

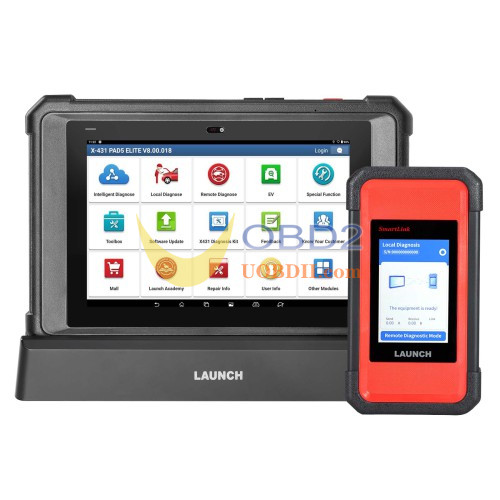

- Choose X-431 PAD5 ELITE if:
- You need a cost-effective powerhouse with most of the high-end features.
- Your work requires advanced diagnostics (Topology, BMW Guided Functions, extensive gateway access) but full online ECU programming is not a daily necessity.
- You value a modern Android 11 OS, ample 256GB storage, and a robust 10.1-inch display.

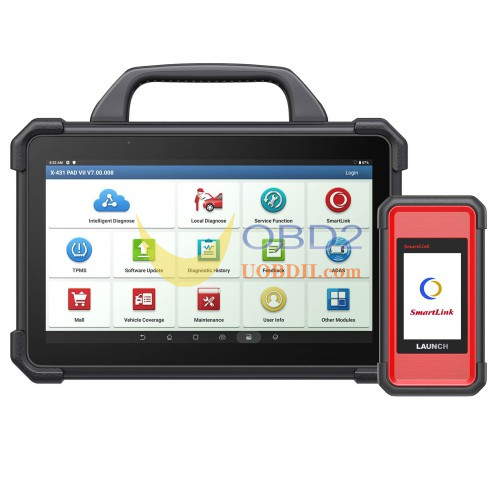

- Choose X-431 PAD7 ELITE if:
- You are a serious professional or workshop requiring the absolute best hardware and full functionality.
- You need the large 13.3-inch display for easier viewing and the full support for ECU programming.
- The highest RAM (8GB) and superior multitasking performance are important for your workflow.
- Only consider Autel MaxiSys Elite II Pro if:
- Your diagnostic work rarely involves modern BMWs and does not require network topology analysis.
- You have a strict adherence to the Autel ecosystem and do not need the expanded software package options (New Energy, Motorcycle) offered by X-431.
- The higher resolution (2048×1536) on a smaller 9.7-inch screen is a specific priority for you.
