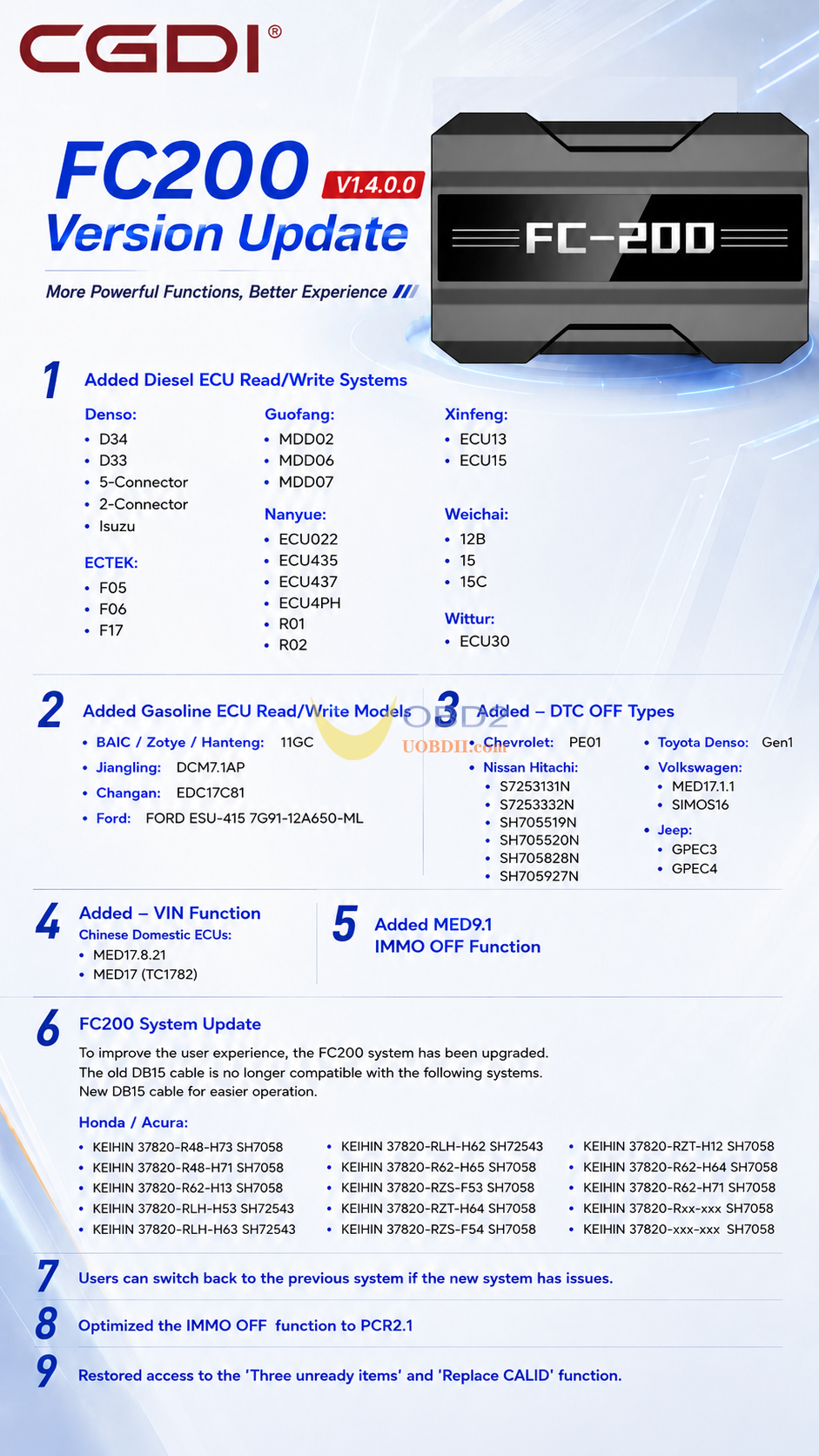

The CGDI FC200 has received a major software update with the release of Version V1.4.0.0, bringing expanded ECU coverage, new read/write capabilities, additional DTC OFF options, VIN functions, and important system improvements.
This update is designed to give automotive technicians and ECU specialists more flexibility when working with diesel and gasoline engine control units.
1. Expanded Diesel ECU Read/Write Coverage
Version V1.4.0.0 adds support for a wider range of diesel ECU systems from several manufacturers.
Denso
Newly supported systems include:
- D34
- D33
- 5-Connector
- 2-Connector
- Isuzu
ECTEK
- F05
- F06
- F17
Guofang
- MDD02
- MDD06
- MDD07
Nanyue
- ECU022
- ECU435
- ECU437
- ECU4PH
- R01
- R02
Xinfeng
- ECU13
- ECU15
Weichai
- 12B
- 15
- 15C
Wittur
- ECU30
This expanded coverage makes the FC200 V1.4.0.0 update particularly useful for technicians handling a broader variety of diesel ECU applications.
2. New Gasoline ECU Read/Write Models
The update also introduces additional gasoline ECU read/write support.
Newly added models include:
- BAIC / Zotye / Hanteng: 11GC
- Jiangling: DCM7.1AP
- Changan: EDC17C81
- Ford: FORD ESU-415 7G91-12A650-ML
With these additions, FC200 users can access more gasoline ECU applications without needing to rely on separate solutions for every vehicle.
3. Added DTC OFF Functions
Version 1.4.0.0 expands the FC200’s DTC OFF functionality with support for additional ECU families and vehicle applications.
Chevrolet
- PE01
Nissan Hitachi
- S7253131N
- S7253332N
- SH705519N
- SH705520N
- SH705828N
- SH705927N
Toyota Denso
- Gen1
Volkswagen
- MED17.1.1
- SIMOS16
Jeep
- GPEC3
- GPEC4
These additions provide technicians with more options when servicing supported ECU systems where DTC-related functions are required.
4. New VIN Function
The update adds a VIN function for Chinese domestic ECUs, supporting:
- MED17.8.21
- MED17 (TC1782)
This provides an additional option for technicians working with supported Chinese domestic ECU applications.
5. Added MED9.1 IMMO OFF Function
Another important addition in V1.4.0.0 is the MED9.1 IMMO OFF function.
The update also states that the IMMO OFF function has been optimized for PCR2.1, providing improved functionality for supported applications.
6. FC200 System and Cable Update
The FC200 system has also been upgraded to improve the overall user experience.
According to the update notice, the old DB15 cable is no longer compatible with the listed Honda/Acura systems. The new DB15 cable should be used for easier operation with these supported systems.
The listed Honda/Acura applications include various:
- KEIHIN 37820-R48-H73 SH7058
- KEIHIN 37820-R48-H71 SH7058
- KEIHIN 37820-R62-H13 SH7058
- KEIHIN 37820-RLH-H53 SH72543
- KEIHIN 37820-RLH-H63 SH72543
- KEIHIN 37820-RLH-H62 SH72543
- KEIHIN 37820-R62-H65 SH7058
- KEIHIN 37820-RZS-F53 SH7058
- KEIHIN 37820-RZT-H64 SH7058
- KEIHIN 37820-RZS-F54 SH7058
- KEIHIN 37820-RZT-H12 SH7058
- KEIHIN 37820-R62-H64 SH7058
- KEIHIN 37820-R62-H71 SH7058
- KEIHIN 37820-Rxx-xxx SH7058
- KEIHIN 37820-xxx-xxx SH7058
For technicians working with these systems, checking the cable requirement before beginning a programming operation is important.
7. Ability to Switch Back to the Previous System
One useful feature highlighted in the update is the ability for users to switch back to the previous system if the new system encounters issues.
This provides an additional fallback option and can help minimize disruption during ECU programming work.
8. Optimized IMMO OFF for PCR2.1
The IMMO OFF function for PCR2.1 has been optimized as part of the V1.4.0.0 update.
This improvement is intended to provide a better experience when working with supported PCR2.1 applications.
9. Restored Functions
The update also restores access to two previously unavailable functions:
- “Three unready items”
- “Replace CALID”
Restoring these functions gives FC200 users access to additional diagnostic and ECU management capabilities.
