We are pleased to announce that Yanhua ACDP/ACDP2 can support key copy for BMW G series BDC3 and U series BCP ICP keys now.
Supported Functions:

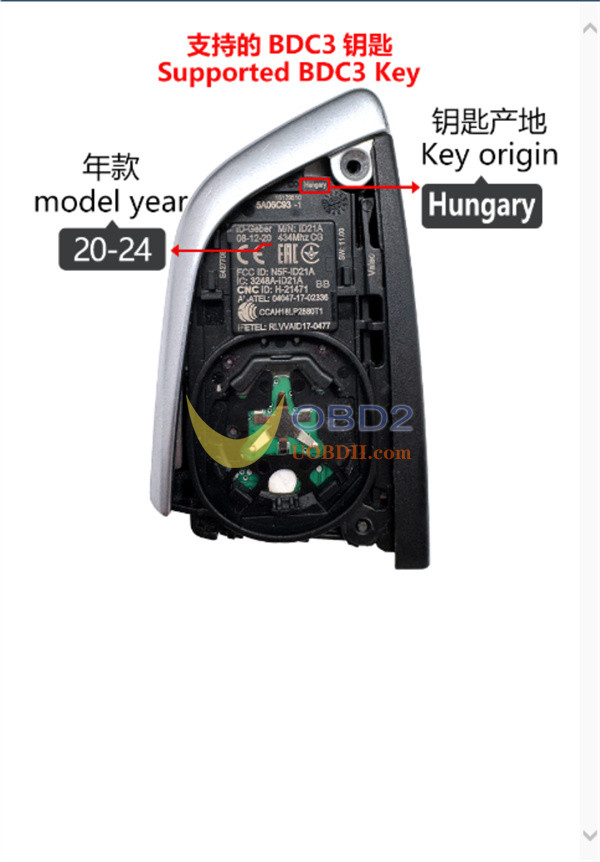

- Clone smart keys for 2020-2024 BMW G series vehicles equipped with BDC3 (Hungary-made keys).

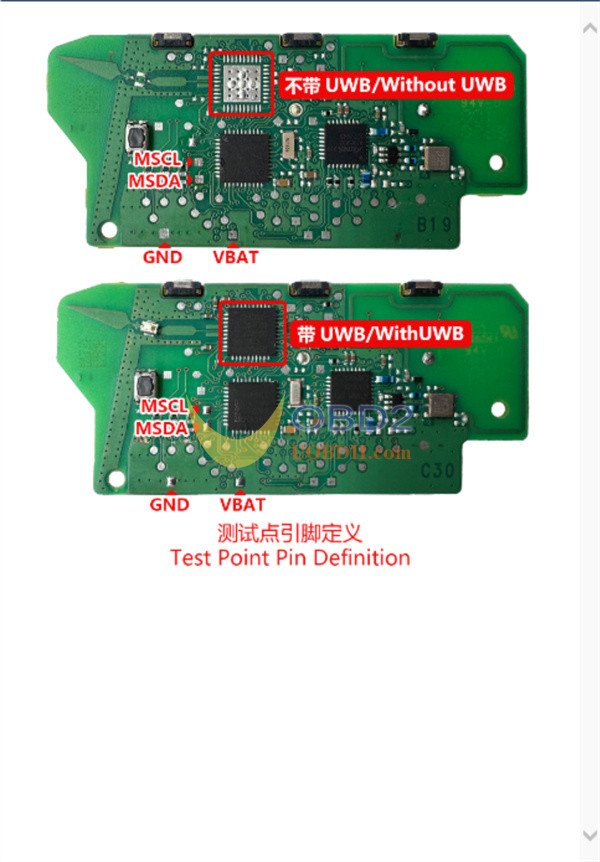

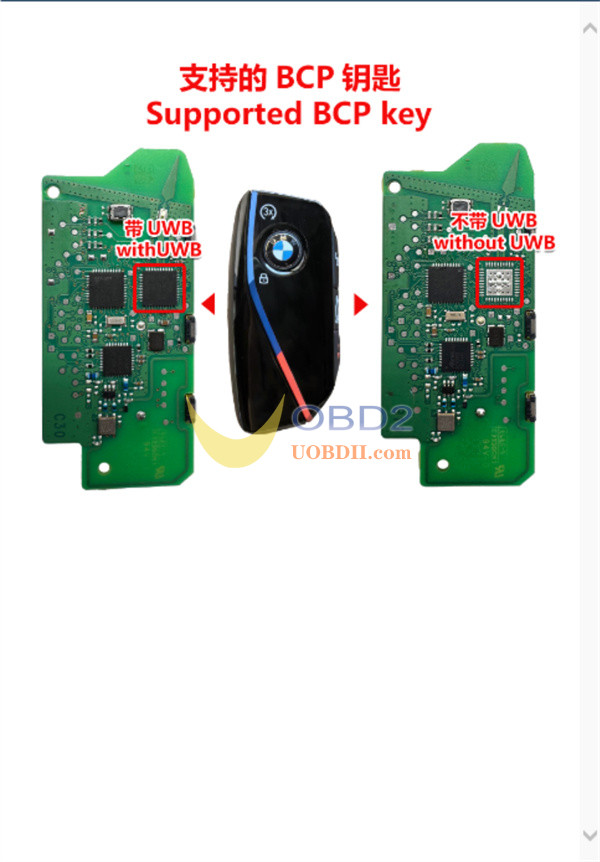

- Clone keys for BMW U chassis models with BCP, including both versions with and without Ultra-Wideband (UWB) functionality.
Mini ACDP APP Navigation Path:

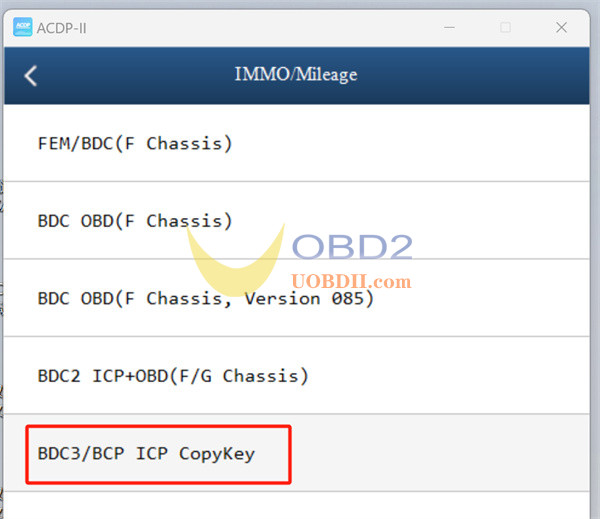

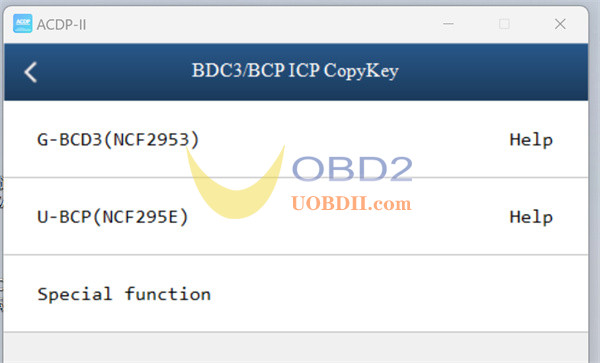

BMW -> IMMO/Mileage -> BDC3/BCP ICP Copy Key -> G-BDC3 (NCF2953) or U-BCP (NCF295E)
Prerequisites & Compatibility
- License: An active Yanhua Module 38 license is required. This license includes complimentary updates for the BDC3 key cloning function.
- Hardware: The operation requires the dedicated Yanhua ACDP BMW BDC3 BCP Interface Board (coming soon)
- Key Source: Cloning is exclusively supported using original BDC3/BCP keys. The system is not compatible with aftermarket keys.
Yanhua ACDP2 and BMW BDC3/BCP Key Connection Guide:

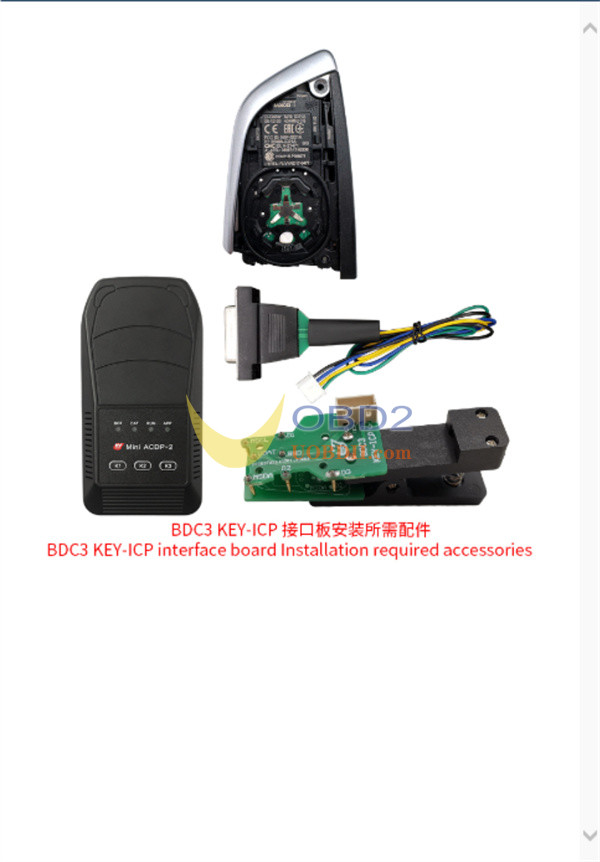

- For BMW BDC3 Key:
Prepare the key, interface board, and ACDP device

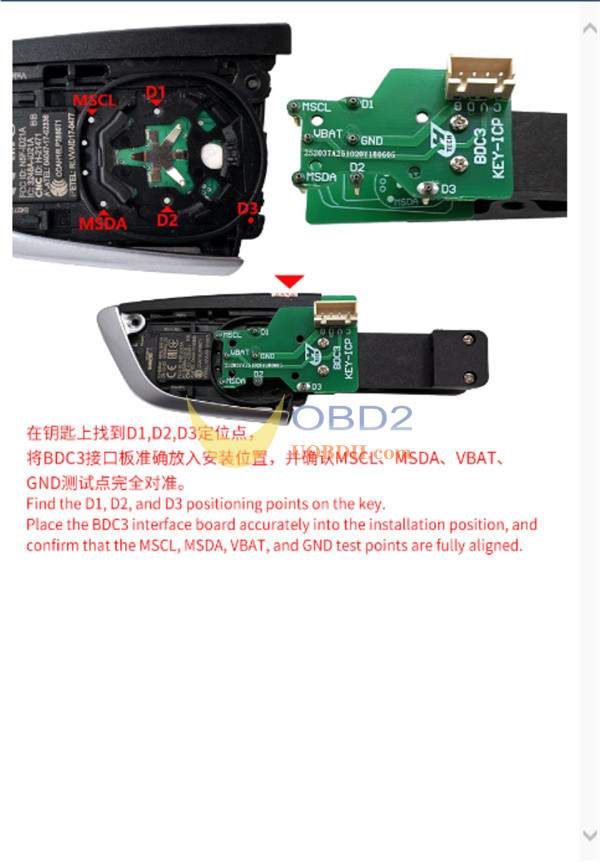

Identify the D1, D2, and D3 positioning points on the key.

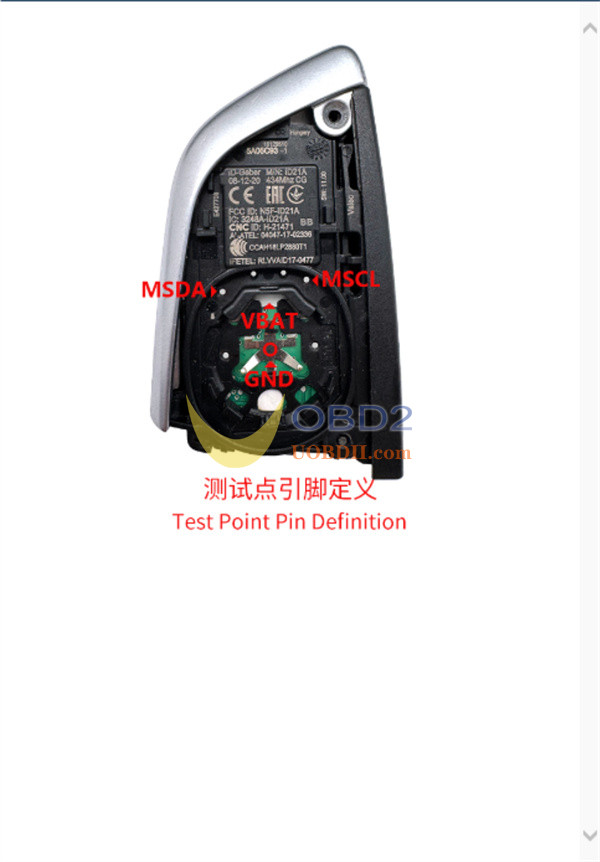

Carefully place the interface board into the installation position, ensuring the MSCL, MSDA, VBAT, and GND test points are perfectly aligned.

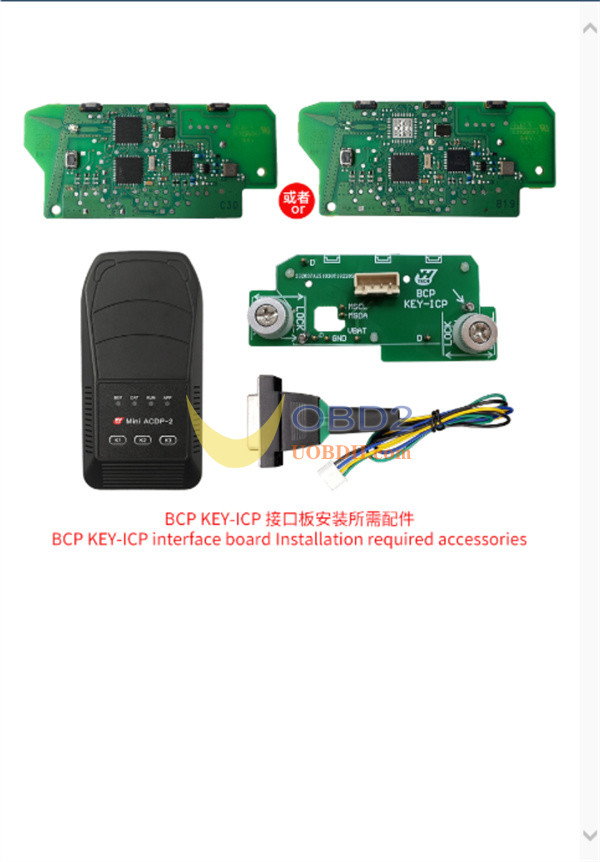

- For BMW BCP Key:
Prepare the key, interface board, and Yanhua ACDP2 key programmer

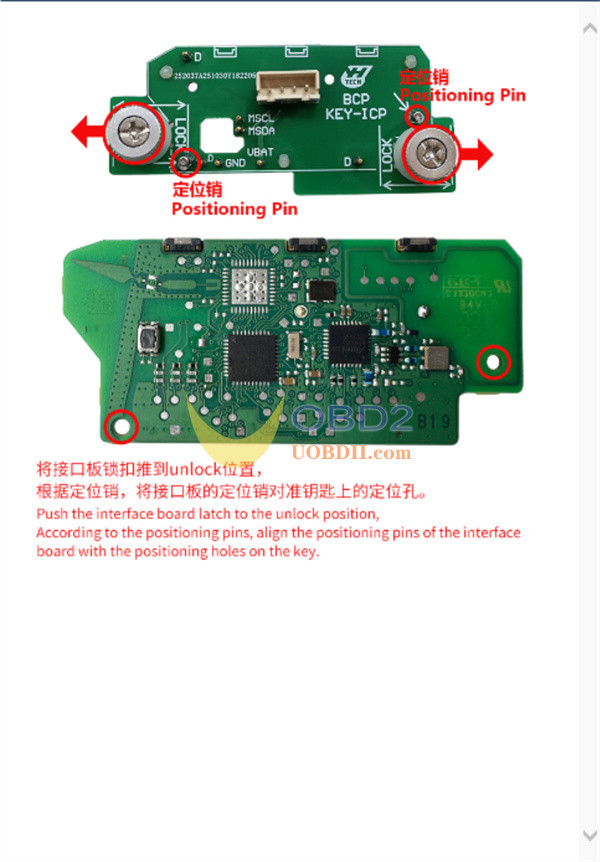

Push the board’s latch to the unlock position
Align the board’s positioning pins with the key’s holes, press it down

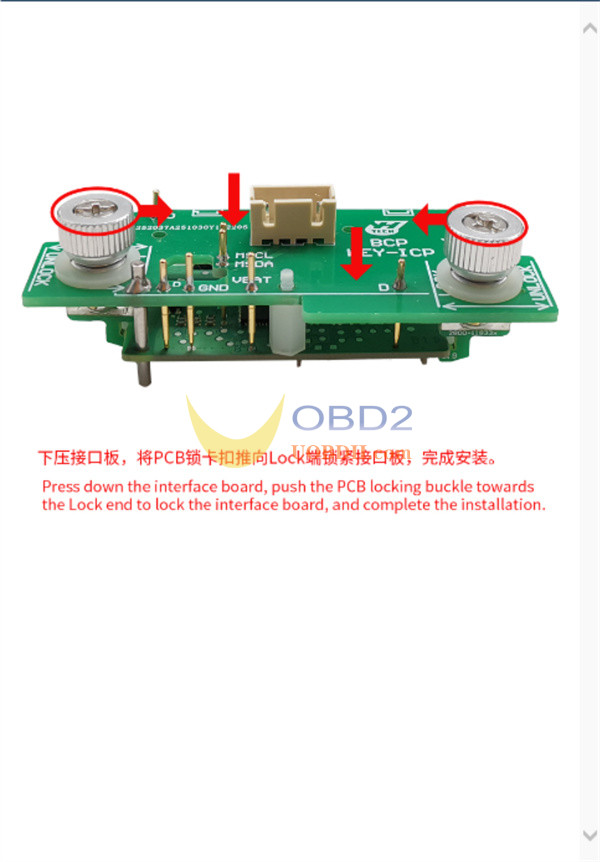

Then slide the PCB locking buckle to the “Lock” position to secure the connection.
