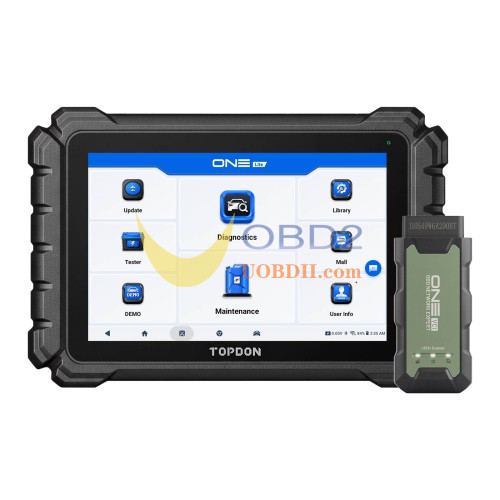

The TOPDON ONE lineup includes four models—ONE Lite, ONE, ONE Plus, and ONE Pro—designed for different levels of automotive diagnostics, coding, and programming. All models share the same core diagnostic capabilities, but differ significantly in hardware power and advanced features.
Topdon ONE Lite vs ONE vs ONE Plus vs ONE Pro:
| ITEM | Topdon ONE Lite | Topdon ONE | Topdon ONE Plus | Topdon ONE Pro |
|---|---|---|---|---|
| Image |  |
 |
 |
 |
| CPU | 8-Core 2.0GHz (MT8786) | 8-Core 2.0GHz (MT8786) | 8-Core 2.0GHz (MT8786) | 8-Core 2.2GHz (RK3576) |
| RAM | 4G | 4G | 4G | 8G |
| ROM | 128G | 128G | 128G | 256G |
| Battery | 10000mAh/3.8v | 10000mAh/3.8v | 10000mAh/3.8v | 15000mAh/3.8v |
| Operating system | Android 12.0 | Android 12.0 | Android 12.0 | Android 16.0 |
| Screen size | 10.1 inches | 10.1 inches | 10.1 inches | 12 inches |
| Touchscreen | Yes | Yes | Yes | Yes |
| Screen resolution | 1280×800 | 1280×800 | 1280×800 | 1600×1200 |
| WiFi | 2.4 & 5Ghz | 2.4 & 5Ghz | 2.4 & 5Ghz | 2.4 & 5Ghz |
| Camera | Rear 16MP | Rear 16MP | Rear 16MP | Rear 16MP, Front 16MP |
| Communication | Bluetooth/ WiFi | Bluetooth/ WiFi | Bluetooth/ WiFi | Bluetooth/ WiFi |
| Charging dock | x | x | x | Yes |
| VCI | ONE VCI | ONE VCI | ONE VCI | ONE VCI Pro |
| AutoVIN/SCAN VIN | √ | √ | √ | √ |
| Vehicle/Make Coverage | 120+ | 120+ | 120+ | 120+ |
| System Coverage | All Systems | All Systems | All Systems | All Systems |
| System Diagnostics | √ | √ | √ | √ |
| Read DTCs | √ | √ | √ | √ |
| Freeze Frame Data | √ | √ | √ | √ |
| Clear DTCs | √ | √ | √ | √ |
| Data Stream | √ | √ | √ | √ |
| Bi-Directional Control/Active Test | √ | √ | √ | √ |
| Special Function (inside the control unit) | √ | √ | √ | √ |
| Hot Functions | 52 | 52 | 52 | 52 |
| Multichannel Scanning | √ (Under Development) | √ (Under Development) | √ (Under Development) | √ (Under Development) |
| Live Data Fusion | √ (Under Development) | √ (Under Development) | √ (Under Development) | √ (Under Development) |
| Graphical Diagnostics | × | × | × | √ |
| Diagnostic Topology Display | √ | √ | √ | √ |
| DTC Repair Data | TopFix (AI) | TopFix (AI) | TopFix (AI) | TopFix (AI) |
| Guided Function | √ | √ | √ | √ |
| Coding | ||||
| Benz(SCN) | √ | √ | √ | √ |
| BMW/Mini | √ | √ | √ | √ |
| VW/Audi/Skoda/Seat | √ | √ | √ | √ |
| Porsche | × | × | √ | √ |
| Nissan | × | × | √ | √ |
| PSA | × | × | √ | √ |
| JLR | × | × | √ | √ |
| FORD | × | × | √ | √ |
| Volvo | × | × | √ | √ |
| Toyota | × | × | √ | √ |
| Flash Hidden | ||||
| Benz | × | √ | √ | √ |
| BMW | × | √ | √ | √ |
| VW/Audi/Skoda/Seat | × | √ | √ | √ |
| Porsche | × | × | √ | √ |
| JLR | × | × | √ | √ |
| PSA | × | × | √ | √ |
| Nissan | × | × | √ | √ |
| Toyota | × | × | √ | √ |
| FORD | × | × | √ | √ |
| Volvo | × | × | √ | √ |
| Programming | ||||
| BMW | × | x | √ (4 System) | √ (Full System) |
| Benz | × | x | √ (4 System) | √ (Full System) |
| VW/Audi/Skoda/SEAT | × | x | √ (4 System) | √ (Full System) |
| Nissan/Infiniti | × | × | × | × |
| Hyundai/Kia | × | × | × | × |
| Honda/Acura | × | × | × | × |
| Land Rover/Jaguar | × | × | × | × |
| Renault | × | × | × | × |
| Subaru | × | × | × | × |
| PMI Ford | √ (Under Development) | √ (Under Development) | √ (Under Development) | √ (Under Development) |
| PMI Mazda | √ (Under Development) | √ (Under Development) | √ (Under Development) | √ (Under Development) |
| PMI Opel | × | × | × | × |
| PMI Vauxhall | × | × | × | × |
| Advanced Protocol | ||||
| CAN-FD | √ | √ | √ | √ |
| DoIP | √ | √ | √ | √ |
| J2534 | √ | √ | √ | √ |
| Gateway Access | ||||
| Renault | √ | √ | √ | √ |
| FCA | √ (Europe/USA) | √ (Europe/USA) | √ (Europe/USA) | √ (Europe/USA) |
| Nissan | √ (Europe/USA) | √ (Europe/USA) | √ (Europe/USA) | √ (Europe/USA) |
| Infiniti | √ (Europe/USA) | √ (Europe/USA) | √ (Europe/USA) | √ (Europe/USA) |
| VW | √ | √ | √ | √ |
| DVI | × | × | × | √ |
| Split Screen | × | × | × | √ |
| AI Voice Assistant | × | × | × | √ |
| IMMO (KEY Coding) | × | × | √ | √ |
| Battery Test | √ (Optional) | √ (Optional) | √ (Standard with BTMobile ProS) | √ (Standard with BTMobile ProS) |
| TopScan Master | × | × | √ (Software renewal follows ONE Plus) | × |
| Oscillograph | × | × | × | √ |
| Endoscope | √ (Optional) | √ (Optional) | √ (Optional) | √ (Optional) |
| QuickSupport | √ | √ | √ | √ |
| B/C Remote Diagnostic | √ (C) (Under Development) | √ (C) (Under Development) | √ (C) (Under Development) | √ (C) (Under Development) |
| Update | 1 Year free update | 1 Year free update | 1 Year free update | 1 Year free update |
1. Hardware & Performance
- ONE Lite / ONE / ONE Plus:
– Same CPU (8-core 2.0GHz), 4GB RAM, 128GB storage, 10.1″ screen. - ONE Pro:
– Significantly upgraded: faster CPU (2.2GHz), 8GB RAM, 256GB storage, larger 12″ 1600×1200 screen, front camera, bigger battery, and a charging dock.
Conclusion: ONE Pro is the only model with true high-end hardware for heavy professional use.
2. Diagnostics
All models provide:
- Full-system diagnostics
- AutoVIN
- Bi-directional control
- Data stream
- 52 Hot Functions
- TopFix AI assistance
- Topology graph
Only ONE Pro adds:
- Graphical diagnostics for enhanced visual troubleshooting.
3. Coding
- ONE Lite & ONE:
– Support coding for major brands (Benz/BMW/VAG), but limited brand coverage. - ONE Plus & ONE Pro:
– Add more brands such as Porsche, Nissan, PSA, Ford, Volvo, Toyota, JLR.
– Greatly expanded functionality.
Conclusion: ONE Plus and ONE Pro offer wide coding coverage, while Lite and ONE are more basic.
4. Flashing Hidden Functions
- ONE Lite: No support.
- ONE: Adds hidden function flashing for Benz, BMW, VAG.
- ONE Plus & Pro: Expands to nearly all major brands (Porsche, Ford, Nissan, Toyota, etc.).
Conclusion: ONE Plus and ONE Pro are best for hidden feature activation.
5. Programming (ECU Programming)
- ONE Lite & ONE: No programming.
- ONE Plus: Partial programming for BMW, Mercedes, VAG (4 systems).
- ONE Pro: Full system programming for BMW, Mercedes, VAG (professional-level).
Conclusion: ONE Pro is the only fully capable programming device.
6. Special & Advanced Features
- ONE Plus adds:
– IMMO key coding
– TopScan Master
– Standard battery tester - ONE Pro adds all of the above plus:
– DVI, Split Screen, AI Voice Assistant
– Oscilloscope support
– VCI Pro
– Best user interface and multitasking
Conclusion: ONE Pro includes the entire ecosystem of TOPDON’s advanced features.
Final Recommendation
Best for: basic diagnostics + occasional coding.
Budget-friendly.
Best for: basic diagnostics + expanded hidden function flashing.
Entry-level professional use.
Best for: technicians needing advanced coding, IMMO, partial programming, and built-in battery testing.
Great balance of features and price.
ONE Pro
Best for: professional workshops needing full programming, best hardware, full coding, DVI, split screen, oscilloscope, and VCI Pro.
The most powerful and complete package.
