This guide provides a detailed walkthrough on how to use OBDSTAR X300 Classic G3 and C4-07 Adapter Kit to virgin (erase) and transfer data from a used Mercedes-Benz VGS4 722.9 7-speed TCU.
Background Information
The 4-4 ECU board for the Mercedes-Benz 722.9 7-speed TCM is commonly found in models such as the S-Class (W222), E-Class (W205), and GLC (W166) from 2014 onwards. For original ECUs, data can be read and written directly via BENCH mode or OBD mode. However, for used ECUs, the C4-07 adapter kit is necessary to drill holes and perform data erasure and writing in JTAG mode.
Preparation

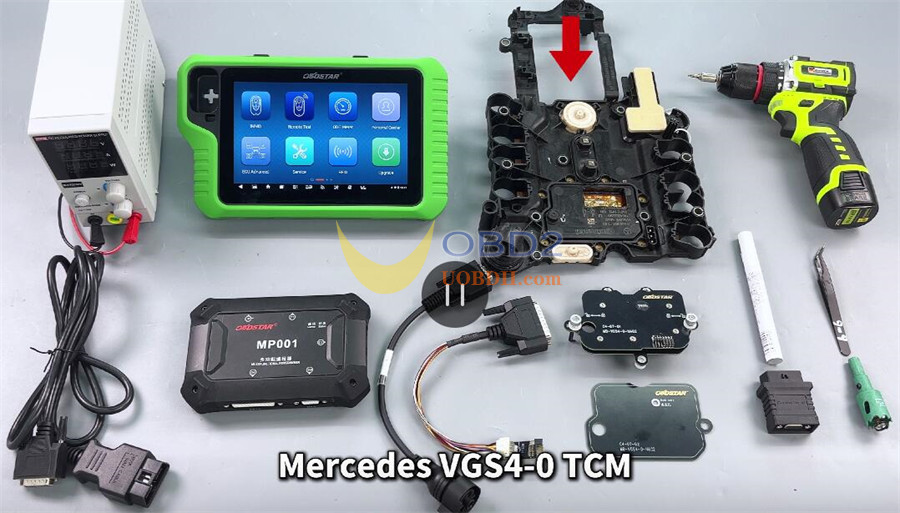

Before starting, ensure you have the following tools and components:
- Mercedes VGS4-0 TCM
- X300 Classic G3with ECU Flasher license (or DC706 full)
- OBDSTAR C4-07 Adapter Kit(includes C4-07-01 soldering-free board, C4-07-02 custom positioning board, W011, W020-V1.1, 22mm custom drill head)
- OBDSTAR MP001 programmer
- OBDSTAR TCM-012 Benz VGS Adapter
- Converter V2
- Handheld electric drill
- Main cable
- Marked pen
- Tweezers
- Power supply
Software Configuration
1.Open ECU Flasher software → Navigate to TCM selection → Choose the most recent firmware version.

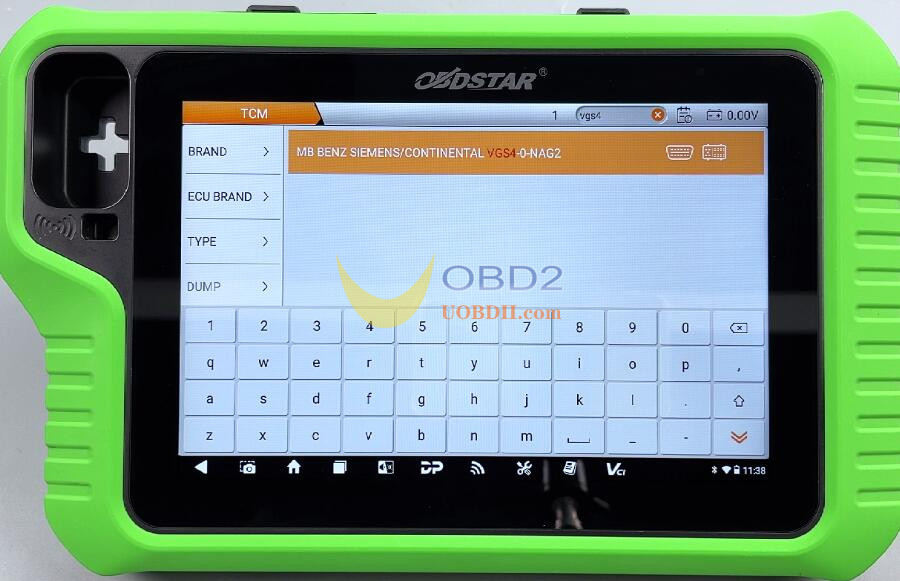

2.In the top-right search field, enter “VGS4” to identify the appropriate TCM model.

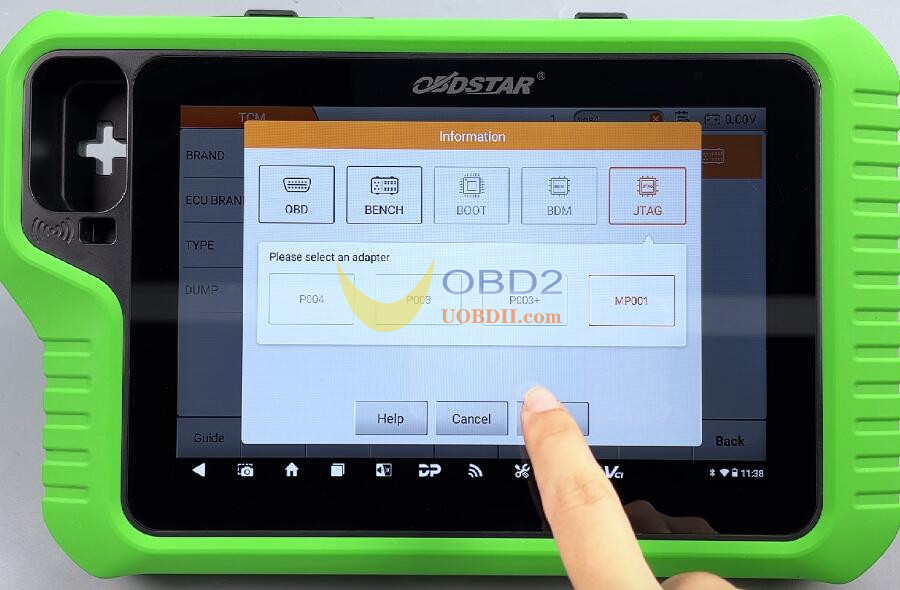

3.Configure JTAG mode and select the MP001 programmer.
4.Access the [Guide] section and thoroughly review:
- Warnings
- Functional description
- Kit contents
- Menu navigation instructions

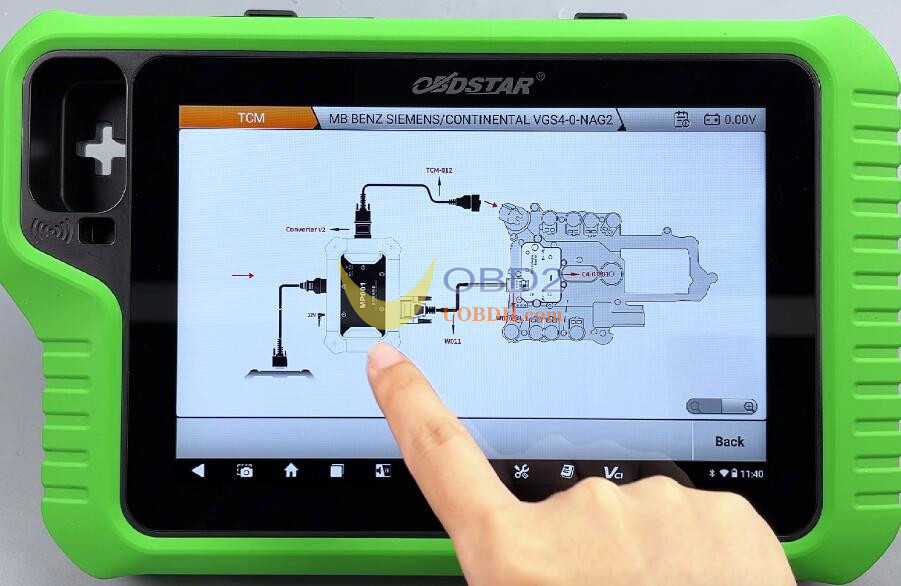

- Wiring diagrams
Hardware Connection Process
A. Drilling Preparation

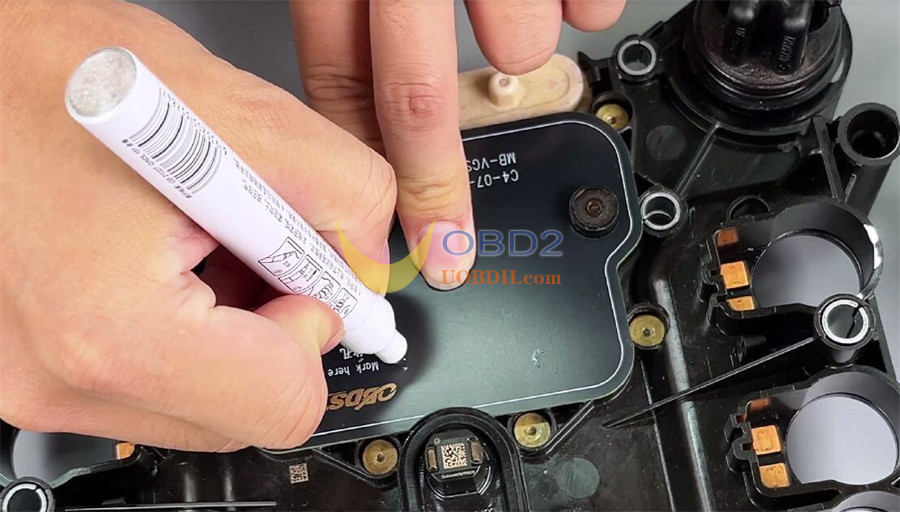

- Position the C4-07-02 alignment board on the TCU and mark drilling locations with a marker.
- (Optional) Apply soldering iron heat to marked points to prevent bit slippage.

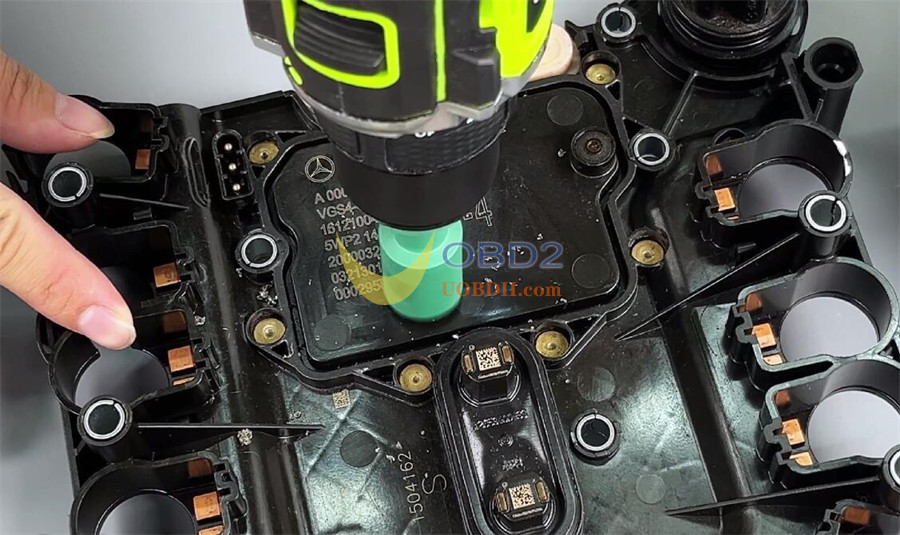

- Perform drilling with the 22mm bit while maintaining controlled depth.
- Remove metal debris using compressed air.
- JTAG Contact Exposure

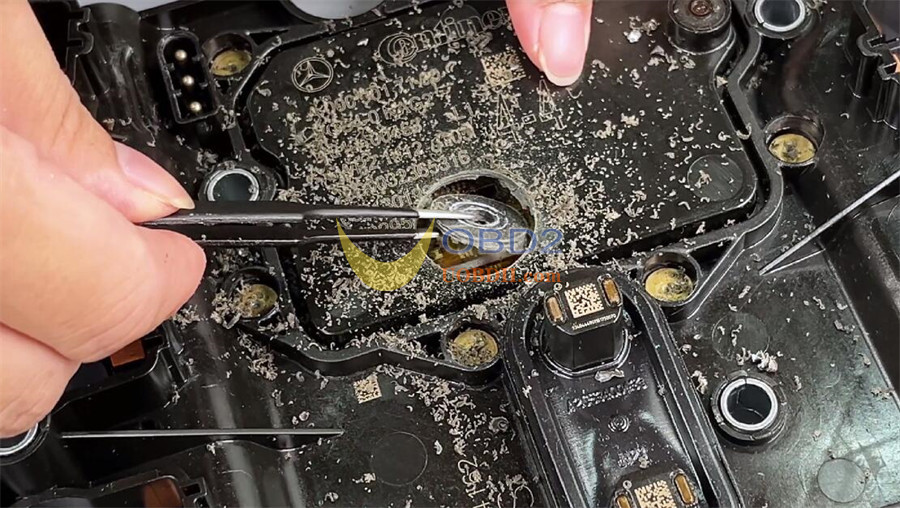

- Gently open the drilled area using precision tweezers.

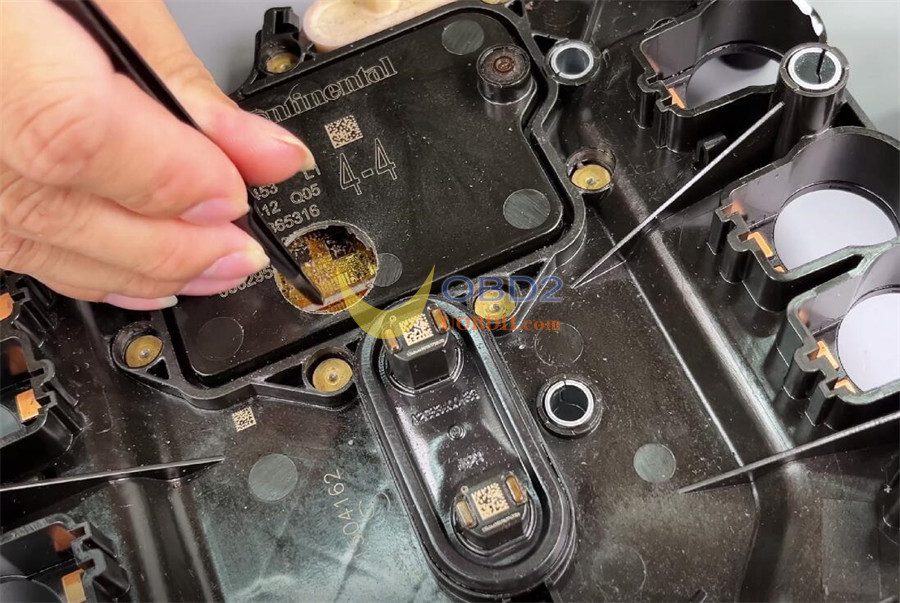

- Clean adhesive residue from gold contacts using a wooden implement (avoid scratching).
- Virginization Procedure
1.Adapter Installation:

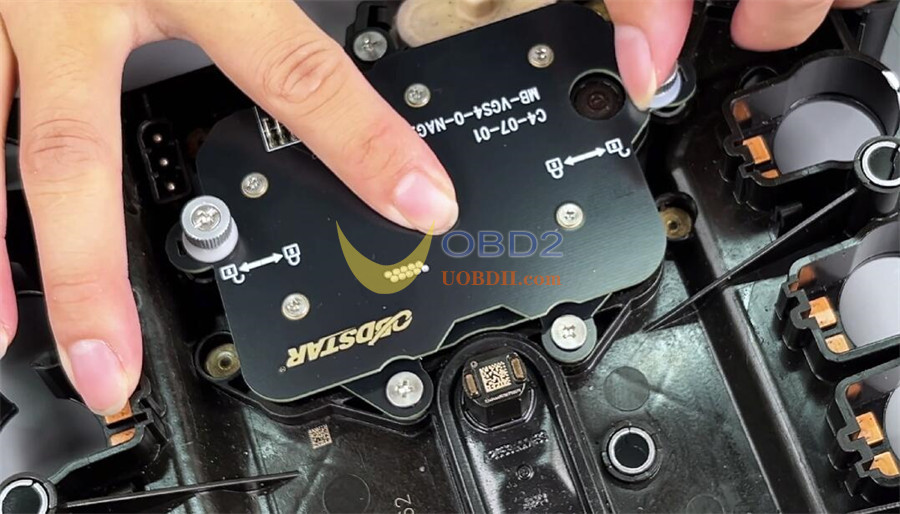

Align C4-07-01 adapter with TCU’s three positioning pins and secure firmly.
2.System Connection:

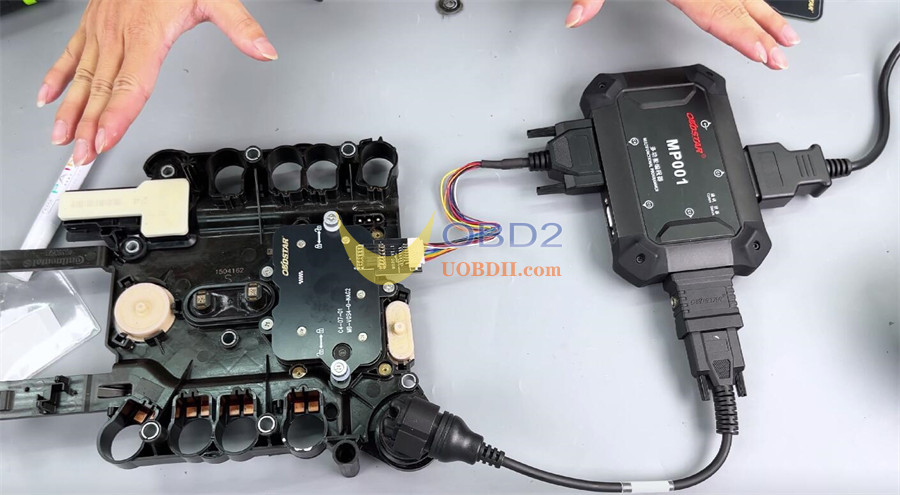

Link MP001 programmer → C4-07-01 adapter → Connect TCM-012 cable → Power on the MP001 unit.
3.Data Erasure:

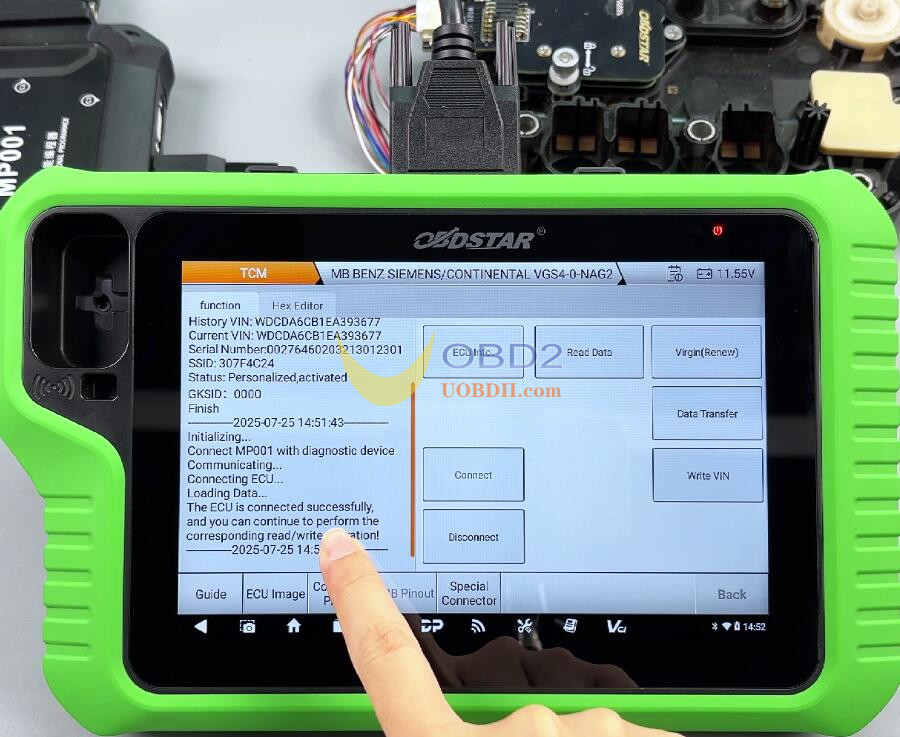

Read TCU information (should indicate “personalized/activated”)

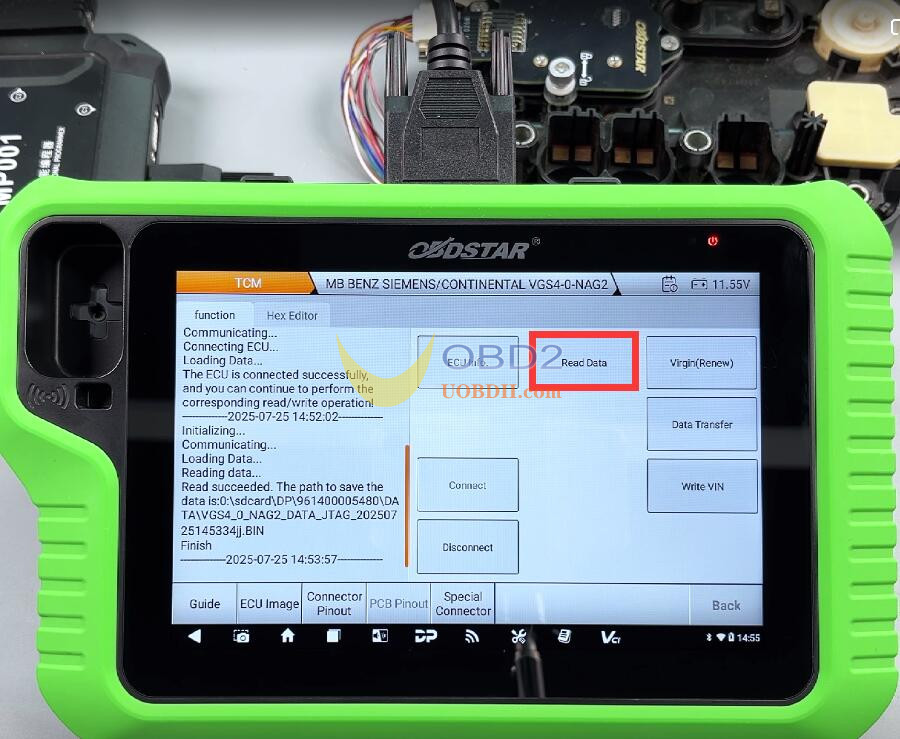

Click Connect → Read Data → Save backup file
Perform TCU erasure (removes VIN and adaptations)

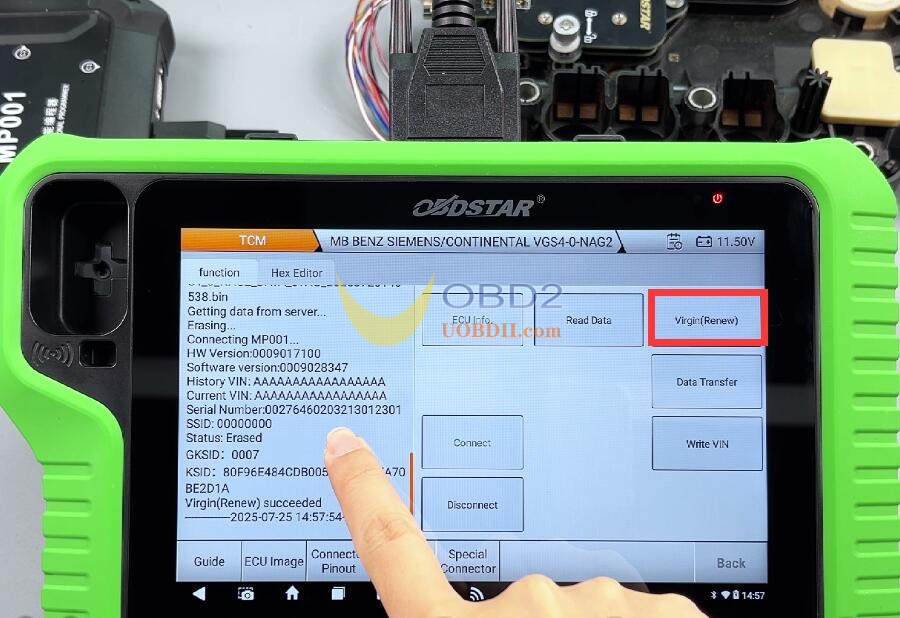

Verify virginization status (TCU should show no stored VIN)
Data Transfer Methods
Method 1: Bench Programming

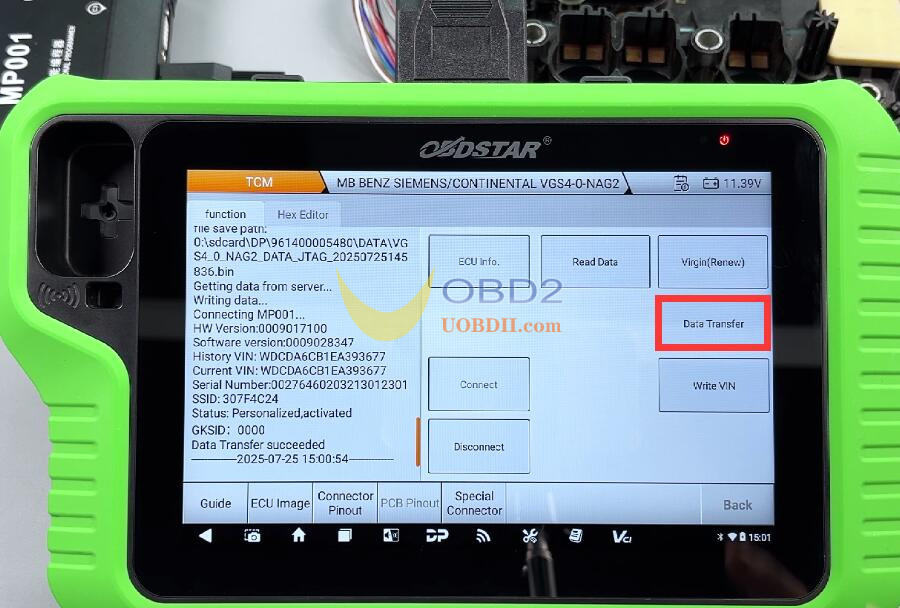

Transfer original vehicle’s TCU data to the refurbished unit
Install TCU → Vehicle should operate normally
Method 2: In-Vehicle Programming
Install virginized TCU in the vehicle
Complete programming using MB Star diagnostic system
Completion Steps
Apply sealant to drilled hole if required
Archive data files to designated storage
