KEYDIY KD-X4 Program Honda ADV Motorcycle All Keys Lost with KD-MOTO Adapter

August 24, 2026 uobdii Car Key Programmer 0

With the new KEYDIY KD-MOTO Motorcycle Adapter, KD-X4 key programmer can add key and all keys lost programming for most HONDA, Yamaha, and 3rd-Gen Ducati motorcycles (all 8A smart-key models). This post demonstrates the complete procedure for a Honda ADV350 (DV350K1ZN2).

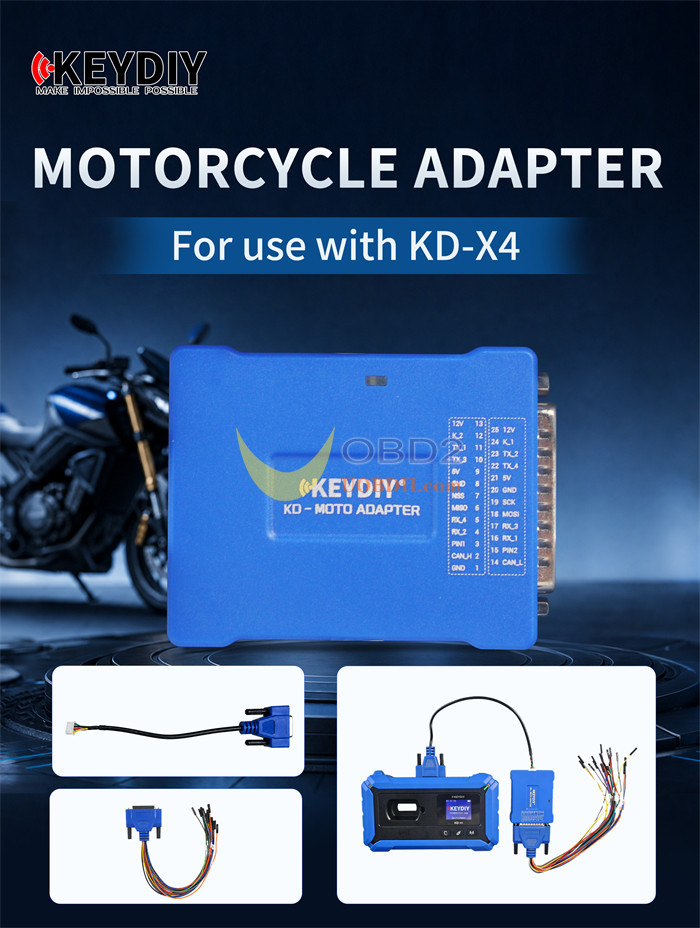

KD-MOTO Motorcycle Adapter Key Features:

  • Direct Hardware Link:Connects straight to KD-X4 device using custom-fit wiring harnesses.
  • Reliable Data Transfer:Ensures stable communication during bench reading and smart key matching routines.
  • Multi-Brand Support:Handles smart key systems across Honda, Yamaha, and Ducati motorcycle lines.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-1

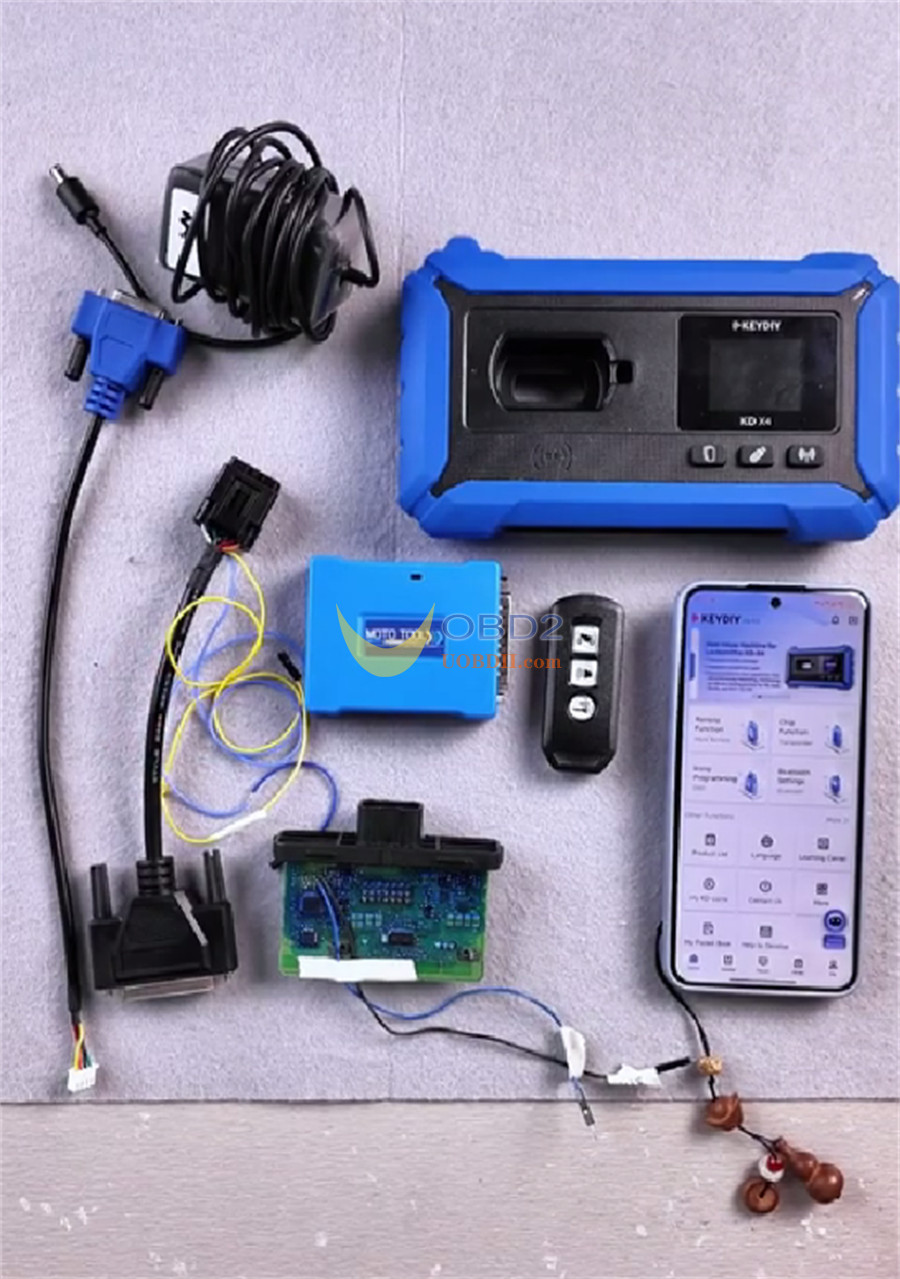

Requirement:

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-2

Step 1: Generating Smart Key

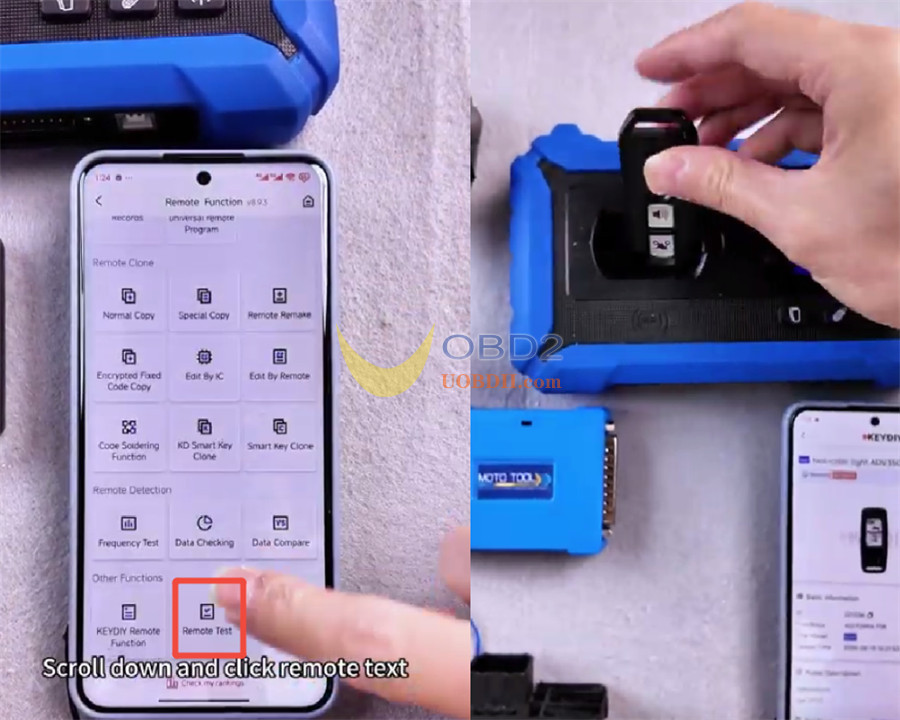

  1. Open the Mobile KDapp and go to Remote Function -> Remote Test -> test -> two-color light ADV350 (K1ZN2).
  2. Place KD ZB51-3 smart keyonto KD-X4 induction coil.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-3

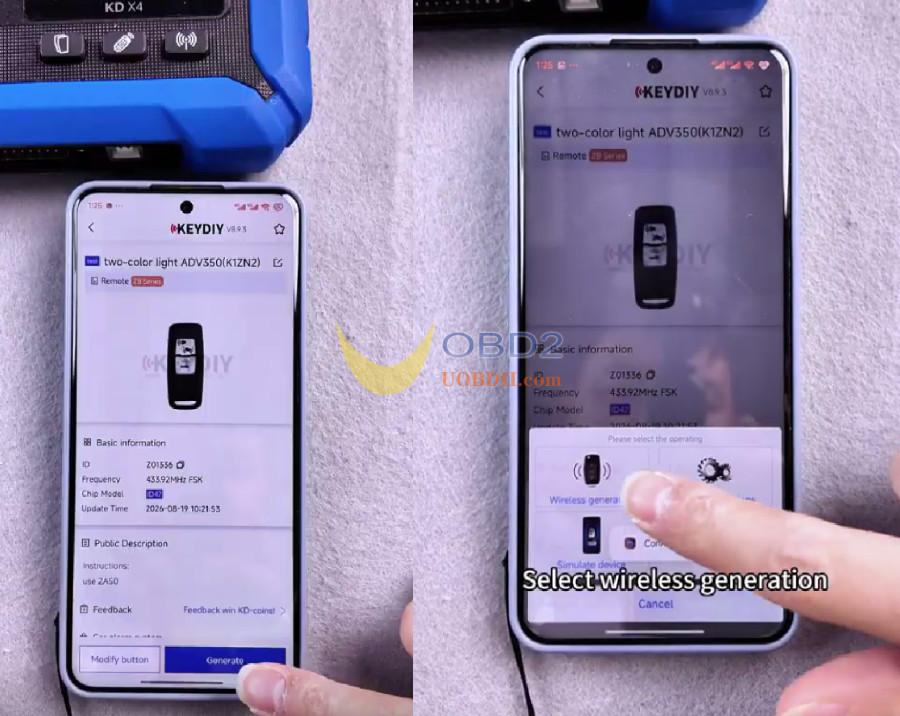

  1. Select Generate-> Wireless generation to write the system data.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-4

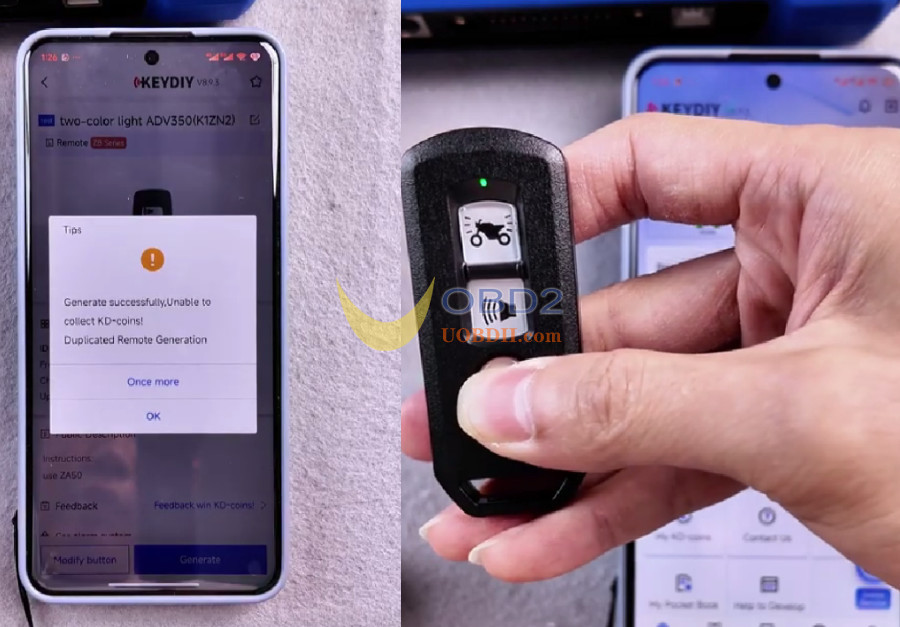

  1. Long-press the smart key button to verify status: red LED indicates Induction OFF, green LED indicates Induction ON. The key must be set to Induction ON before proceeding.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-5

Step 2: Wiring & PIN Code Data Extraction

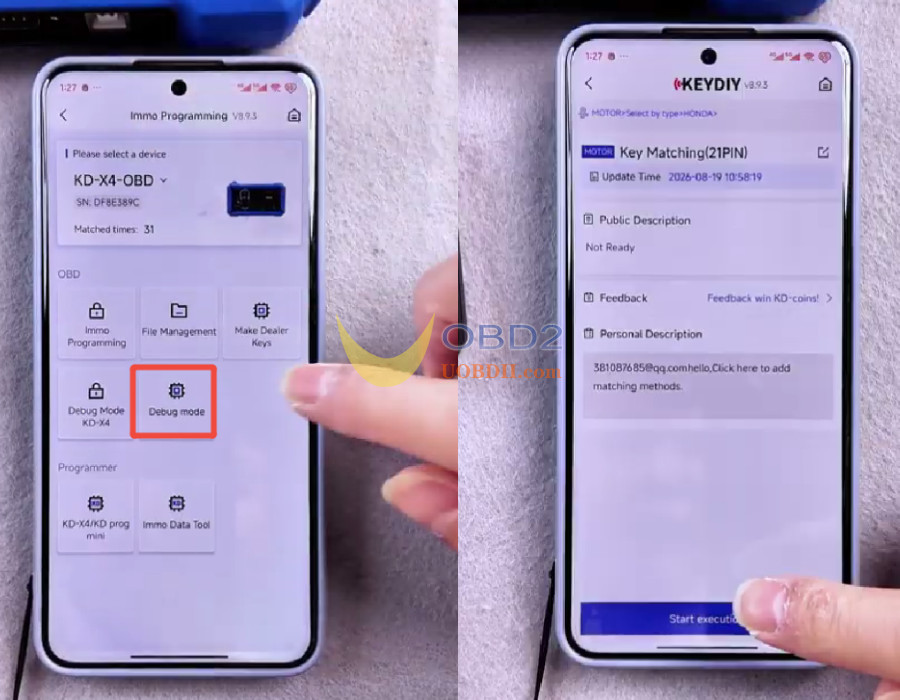

  1. Navigate to IMMO Programming-> Debug mode -> MOTOR -> HONDA -> Key Matching (21 PIN) -> Start execution.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-6

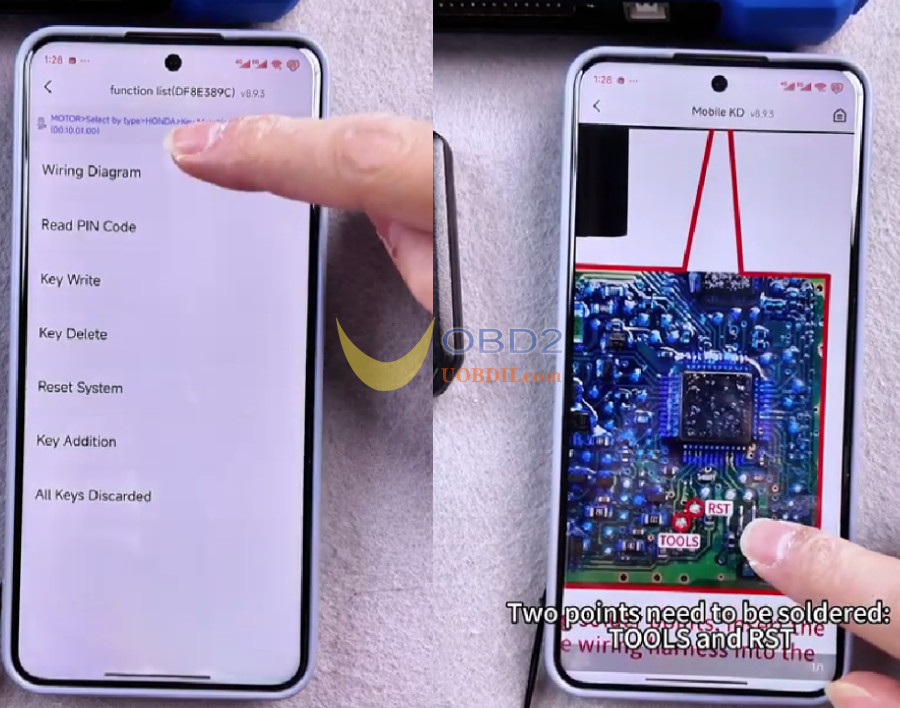

  1. Check the wiring diagram in the app and solder the TOOLSand RST points on the circuit board.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-7

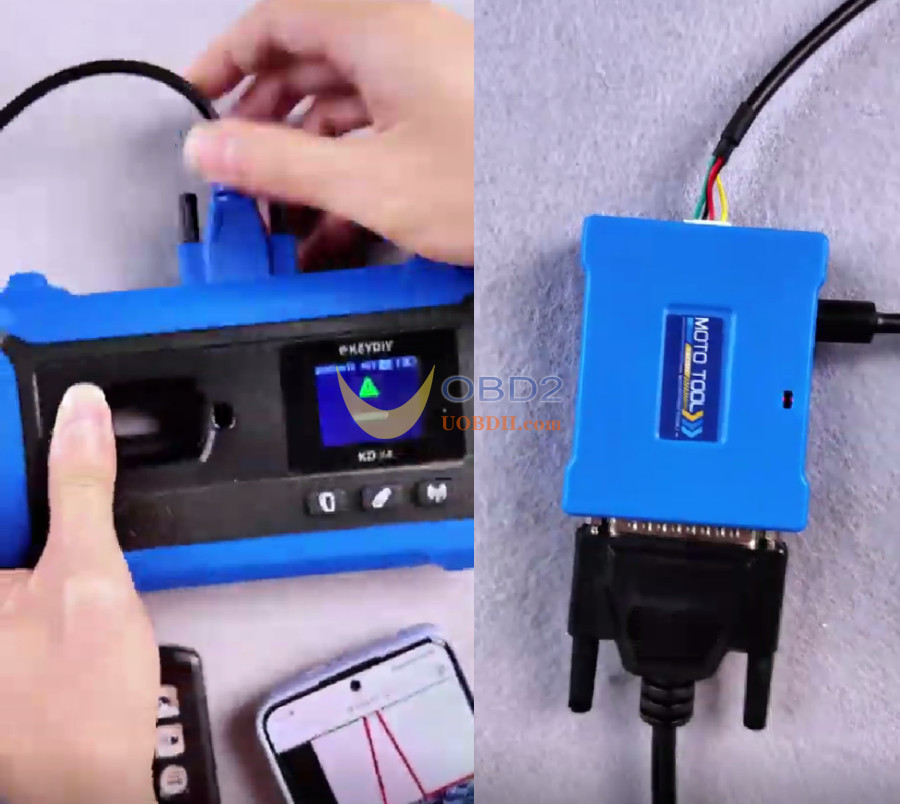

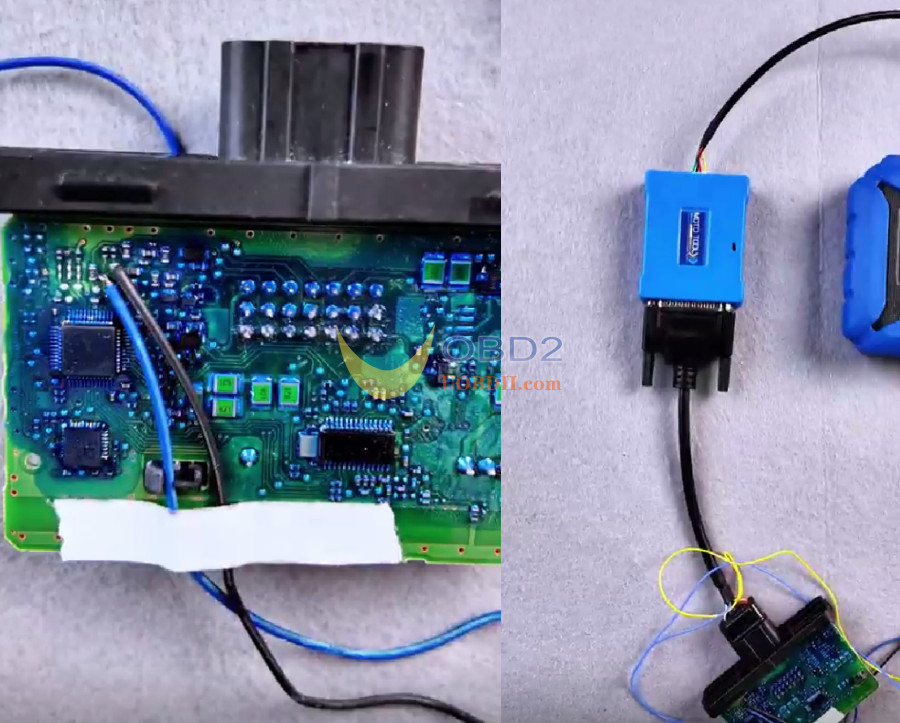

  1. Connect the board to KD-MOTO Adapterusing the jumper wires, attach the adapter connecting cable to KEYDIY KD-X4, and connect the 12V power supply.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-8 keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-9

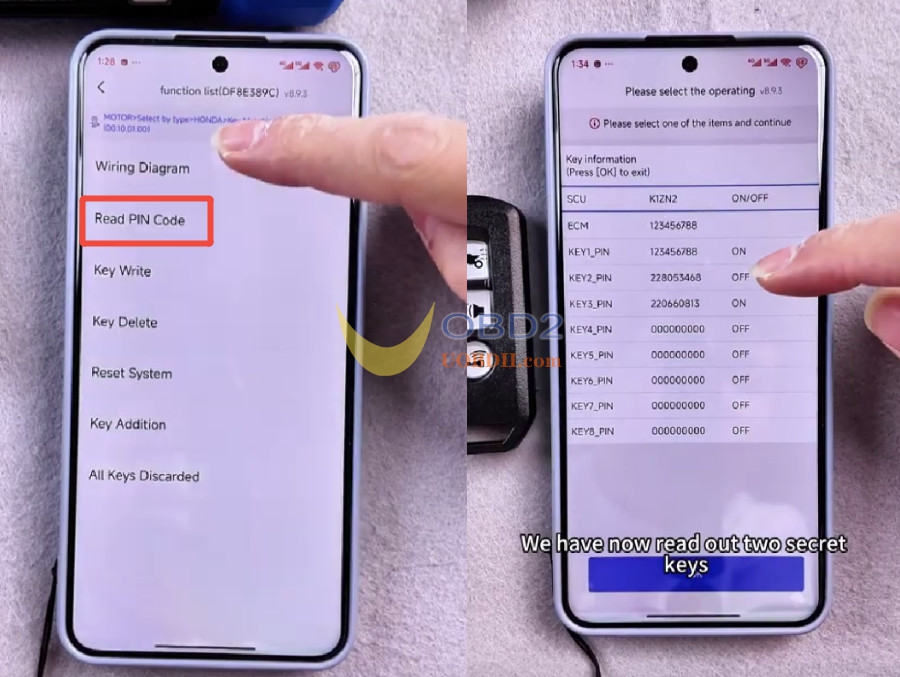

  1. Select Read PIN Codeand save the displayed security code.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-10

Step 3: Key Matching & Identification

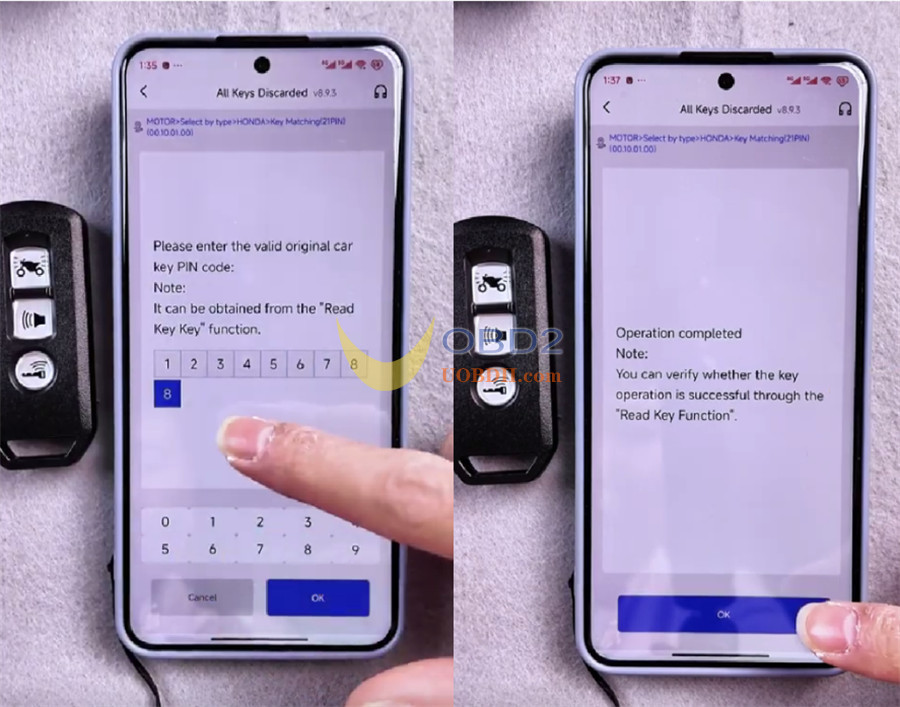

  1. Select All Keys Discarded.
  2. Enter the recorded PIN code to complete the key matching sequence.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-11

  1. Select Read PIN Codeagain to confirm the new key matches system data.
  2. Return to the main menu and enterChip Function.

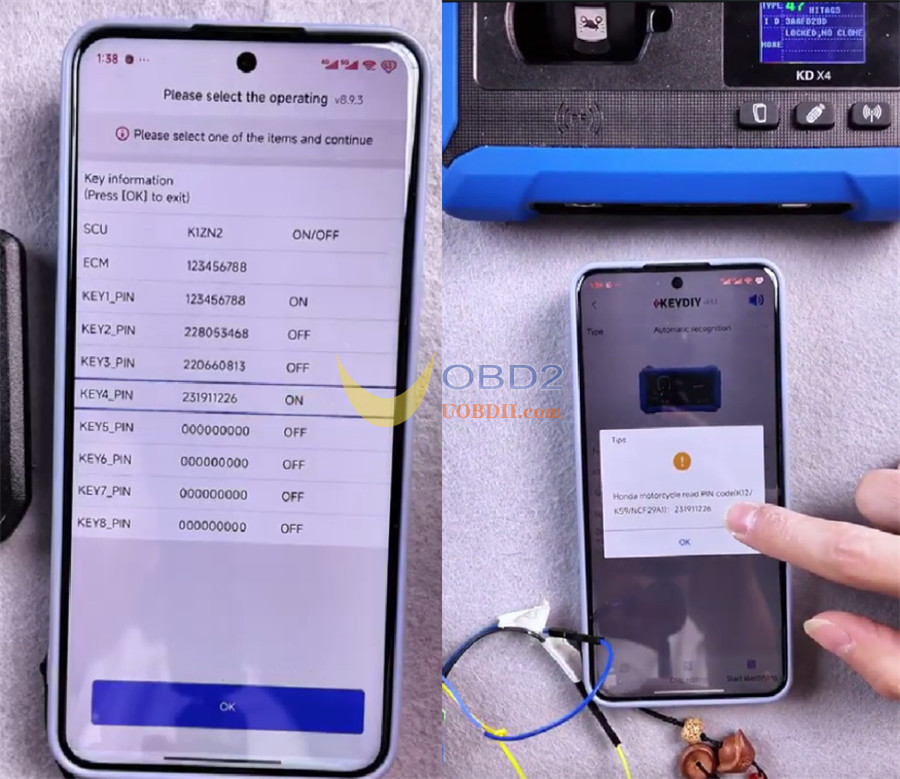

  3. Place the programmed KEYDIY KD ZB51-3 smart keyon the induction coil of KEYDIY KD-X4 programmer and run Automatic Detection Clone -> Start identifying.
  4. Tap the identified chip type to verify that the PIN code matches the recorded system memory.

keydiy-kd-x4-with-kd-moto-adapter-add-honda-adv-key-12

Beyond ADV series motorcycles, KEYDIY KD-MOTO Adapter delivers broad coverage across a wide range of Honda and Yamaha motorcycles, as well as all 3rd-Generation Ducati 8A smart-key models.

Honda Motorcycles

  • ADV:2019–2020, 2021–2024
  • AirBlade:2018–2020, 2021–2024
  • CBR 1000:2021–2024
  • Click / Click-I:2018–2020, 2022–2024
  • Forza:2018–2020, 2021–2024
  • Lead:2018–2020, 2021–2024
  • PCX / PCX Hybrid:2017–2020, 2020 (Hybrid), 2021–2024
  • Scoopy:2018–2020, 2021–2024
  • SH Series:SH 2017–2019, SH 2020, SH 2021–2024, SH 300i 2017–2020, SH 350i 2021–2024, SH Mode 2017–2020, SH Mode 2022–2024
  • Super Cub:2020, 2021–2024
  • Vario:2018–2020, 2022–2024
  • Vision:2018–2020, 2021–2024
  • X-ADV:2017–2020, 2021–2024

Yamaha Motorcycles

  • AEROX / LEXI / Qbin
  • Freego S / Latte / Grande Hybrid
  • Janus Limited / Janus Premium
  • NMAX / SMAX / NMX
  • Nvx 155 / Nvx 255 ABS / Nvx Doxou
  • XMAX
  • MX King 150
  • Grand Filano

3rd-Gen Ducati

  • Supports all 8A smart-key models.

Note: BMW motorcycles and 2nd-gen Ducati 4D smart key models will be added in the future gradually.
