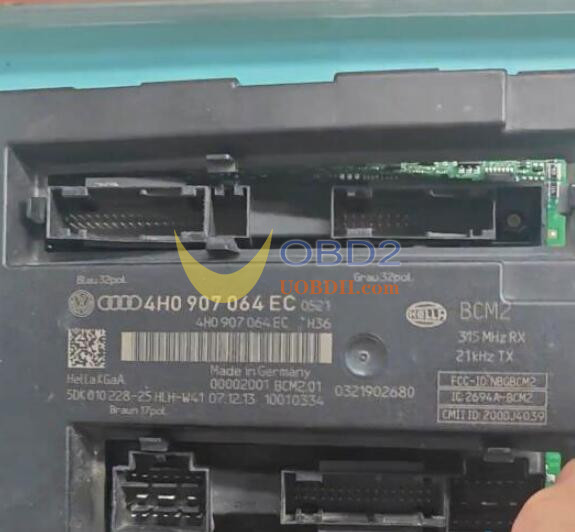

Is it possible Audi BCM2 module cloned by Xhorse Multi Prog or Xhorse Key Tool Plus?

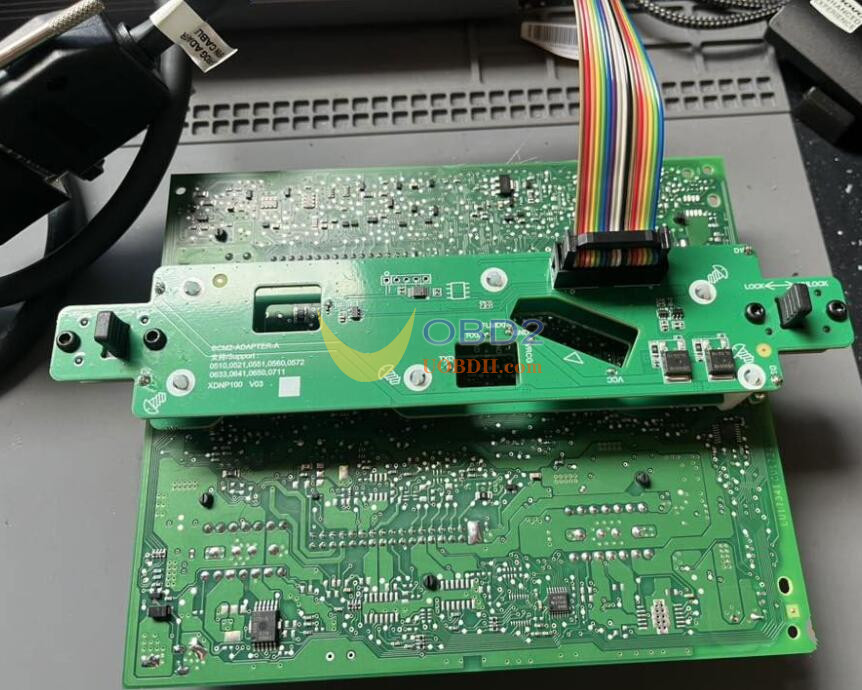

Yes, but it need to with the Xhorse BCM2 Adapter upgraded version.
Cloning Methods Based on Encryption Status
- Cloning a Non-Encrypted BCM2 Module
If the Audi BEPROM and flash data is not encrypted:
Read both the EEPROM and Flash data using Xhorse Multi Prog.
Write both datasets into the replacement module.
This method works for modules with the same hardware version.
- Cloning an Encrypted BCM2 Module
For locked or encrypted BCM2 modules:
Both the original and donor modules must have the same hardware version.

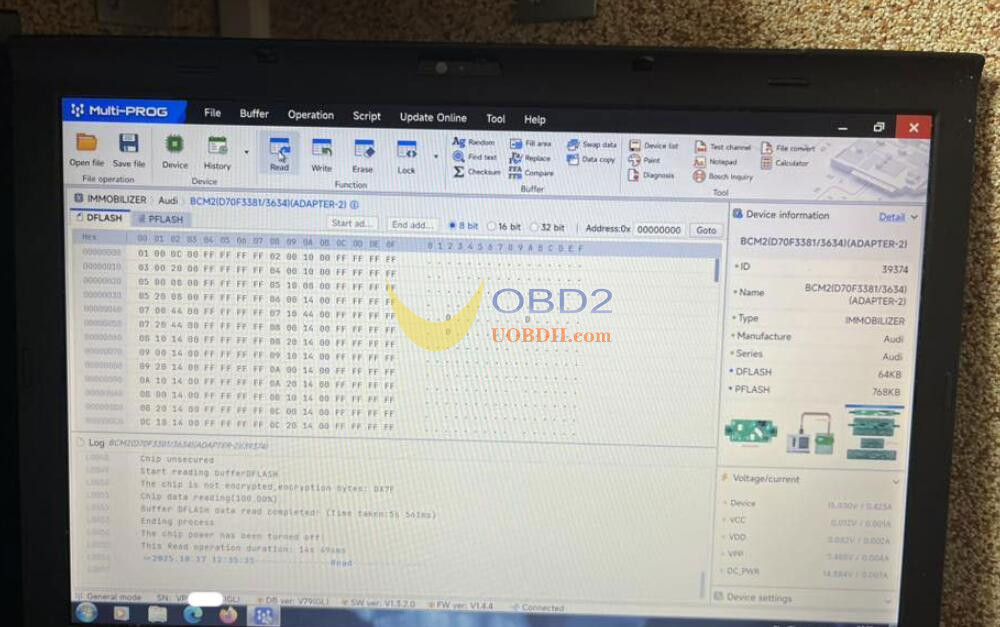

Use Xhorse Multi Prog Programmer to read two sets of data: Data1 and Data2.

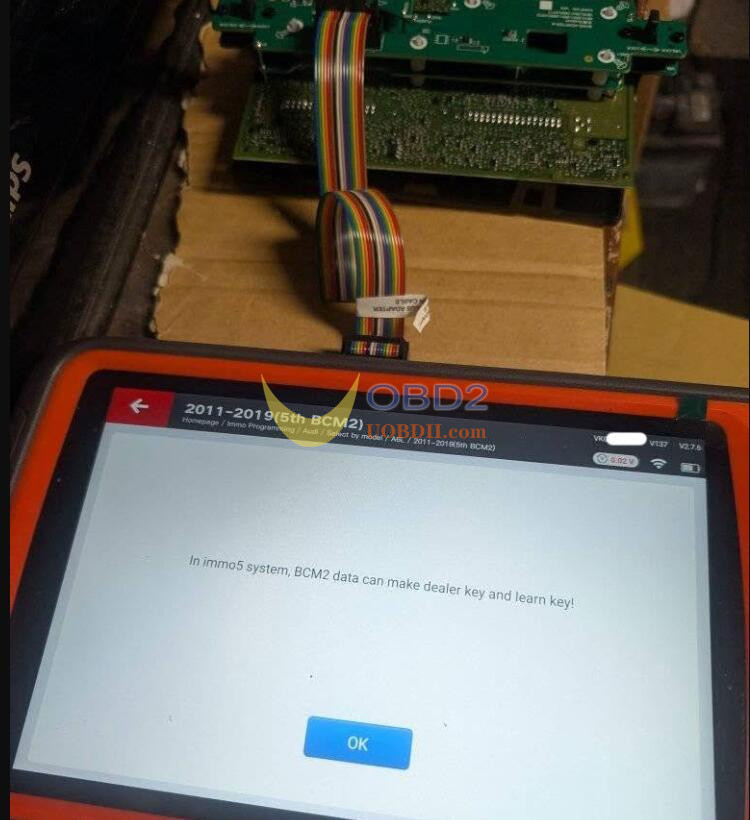

Load these files into Xhorse Key Tool Plus for processing.
The tool will generate two new files:
- A Service File
- A Key (Immo) File
Write the Service File into the new or reused BCM2 module.
The cloning process is now complete.
