This post shows how to calibrate mileage on Toyota Lexus dashboard using CGDI CG100X in CAN-connection mode.
Requirement:
- Update CG100X software to V1.9.8.0

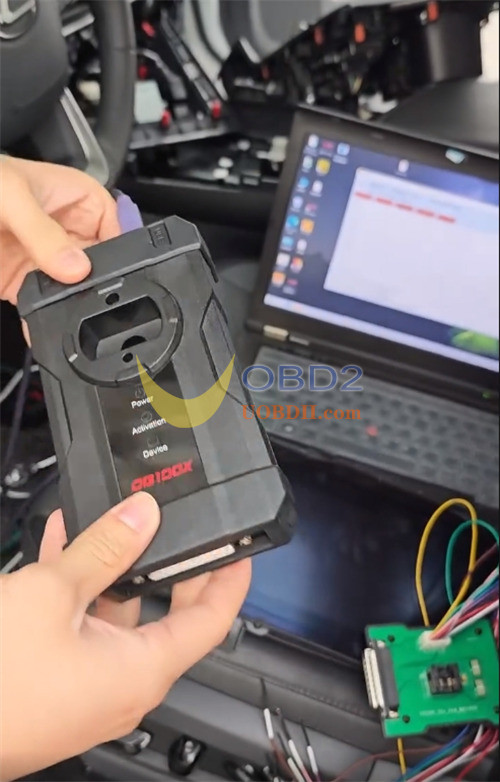

- CGDI CG100X Programmer

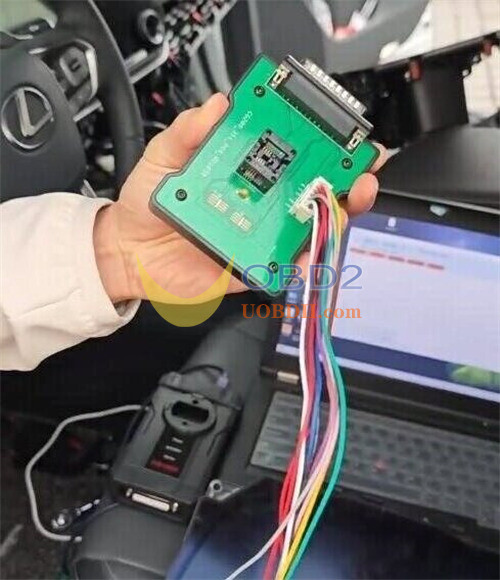

- 35X-CAN Adapter(in the CG100X package)

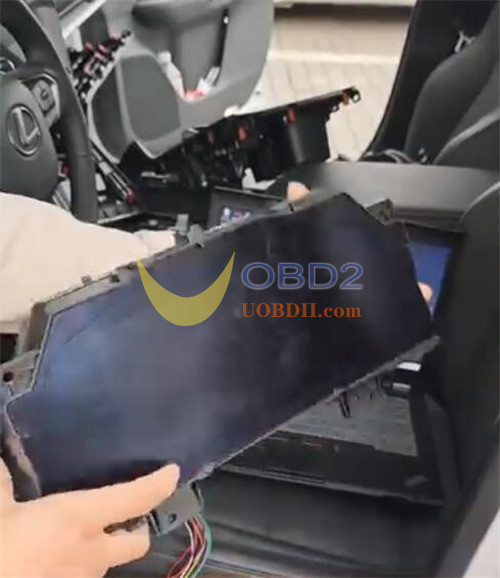

- Lexus R7F701441dashboard

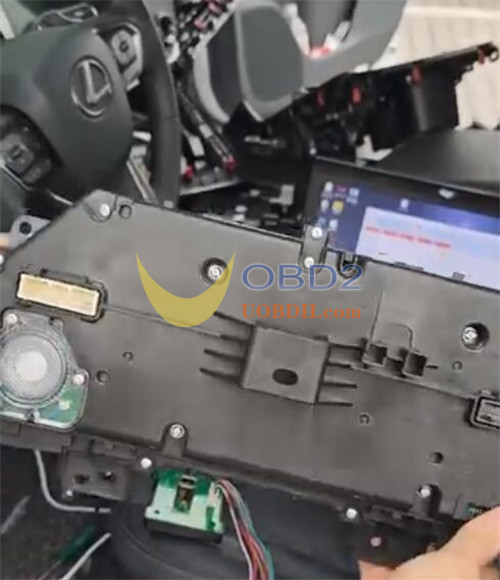

Connection method:

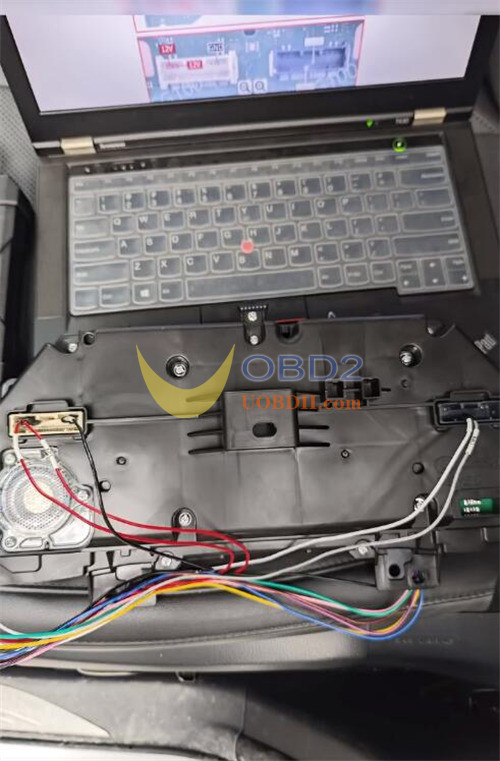

Follow the diagram in CG100X software to connect correctly

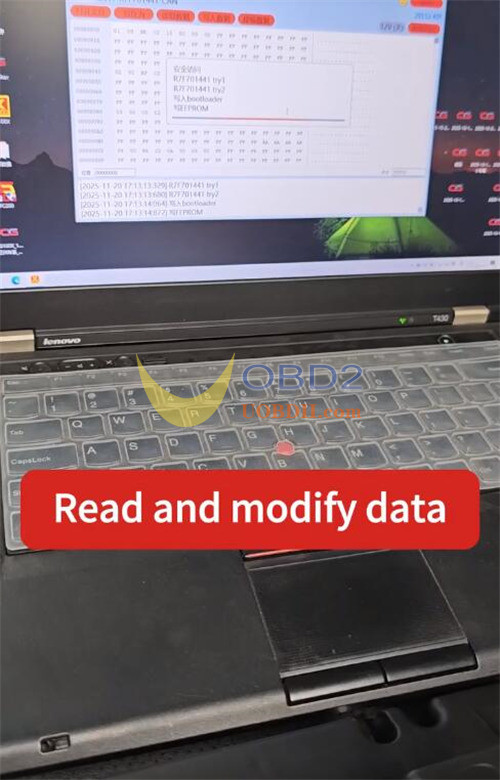

Read and modify data

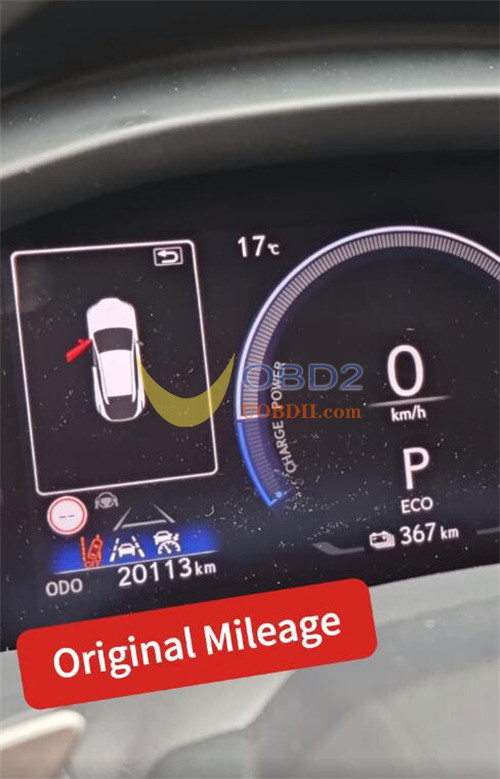

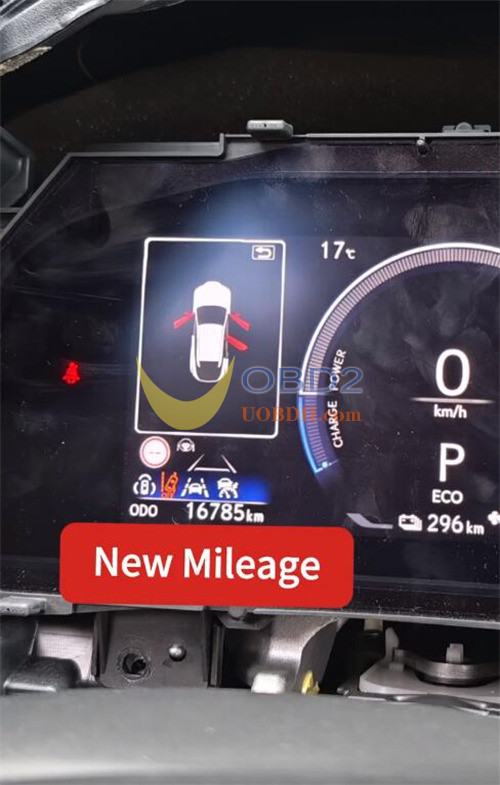

After calibration, the mileage becomes to 16785km (the original mileage is 20113km)
FYI…

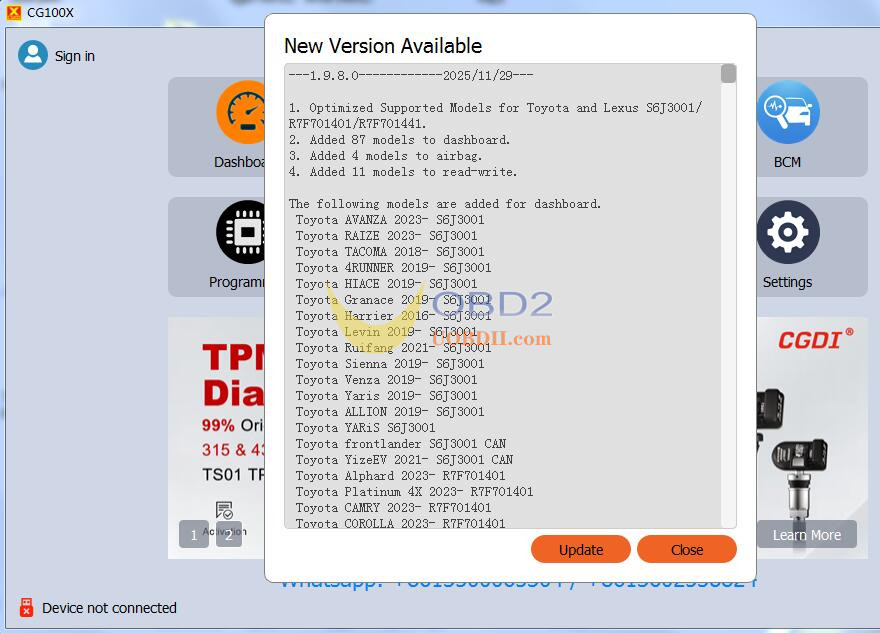

Attach CG100X V1.9.8.0 Update Info below:
- Optimized Supported Models for Toyota and Lexus S6J3001/R7F701401/R7F701441.
- Added 87 models to dashboard.
- Added 4 models to airbag.
- Added 11 models to read-write.
The following models are added for dashboard.
Toyota AVANZA 2023- S6J3001
Toyota RAIZE 2023- S6J3001
Toyota TACOMA 2018- S6J3001
Toyota 4RUNNER 2019- S6J3001
Toyota HIACE 2019- S6J3001
Toyota Granace 2019- S6J3001
Toyota Harrier 2016- S6J3001
Toyota Levin 2019- S6J3001
Toyota Ruifang 2021- S6J3001
Toyota Sienna 2019- S6J3001
Toyota Venza 2019- S6J3001
Toyota Yaris 2019- S6J3001
Toyota ALLION 2019- S6J3001
Toyota YARiS S6J3001
Toyota frontlander S6J3001 CAN
Toyota YizeEV 2021- S6J3001 CAN
Toyota Alphard 2023- R7F701401
Toyota Platinum 4X 2023- R7F701401
Toyota CAMRY 2023- R7F701401
Toyota COROLLA 2023- R7F701401
Toyota Ruifang 2024- R7F701401
Toyota CROWN 2023- R7F701401
Toyota Harrier 2023- R7F701401
Toyota Highlander 2024- R7F701401
Toyota Tocama 2020- R7F701401
Toyota Tundra 2023- R7F701401
Toyota VELLFIRE 2023- R7F701401
Toyota WILDLANER 2022- R7F701401
Lexus ES 2019- S6J3001
Lexus LS 2019- S6J3001
Lexus LX600 2022- S6J3001
Lexus UX 2018- S6J3001
Lexus LS500h 2023- S6J3001 CAN
Lexus RZ 2023- R7F701441
Lexus RZ 2023- R7F701441 CAN
Lexus ES 2019- S6J3001 CAN
Lexus GX550 2023- R7F701401 CAN
Lexus LM350H R7F701401 CAN
Lexus LS 2019- S6J3001 CAN
Lexus LS500 2023- R7F701401 CAN
Lexus LX600 2022- S6J3001 CAN
Lexus NX350 R7F701401 CAN
Lexus RX350 2023- R7F701401 CAN
Lexus RX450H 2023- R7F701401 CAN
Lexus RX500H 2023- R7F701401 CAN
Lexus UX 2018- S6J3001 CAN
Lexus GX550 2023- R7F701401
Lexus LM350H R7F701401
Lexus LS500 2023- R7F701401
Lexus NX350 R7F701401
Lexus RX350 2023- R7F701401
Lexus RX450H 2023- R7F701401
Lexus RX500H 2023- R7F701401
Lexus NX R7F701441
Lexus RX R7F701441
Lexus NX R7F701441 CAN
Lexus RX R7F701441 CAN
BAIC Changjiang BJ5040XXYCJ08EV 24C512
Honda X4 1300 93C46
DongFeng T1 2017- 9S12HZ256
DongFeng Forland Fire Truck PIC18F66K80
FOTON Aoling 24C04
GuangQiRiYe RiYe 500 93C46
GuangQiRiYe RiYe 700 93C46
Haima 7X 24C64
JiAo AOteng 2022- 25256
Geely Geometry E 2022- 24C64
Geely Xinrui 2021- 24C32
JAC KAIDA EX6 2025- 24C16
JAC ShuaiLin S7 24C16
JAC Kangling H5 2023- 24C16 (Green)
JinBei HiaceEV 2022- 24C16
JINPENG YI ke XingGuang R5F10DPxxx
Suzuki Xiaohaitun110C 24C08
Liugong 855N 25160
Liugong 906FG4 25640
Liugong Excavator 24C64
MG MG7 2024- R7F701649 (Smart cockpit host)+95320 (BCM)
NETA GT 24C64 (CDC-Cockpit Domain Controller)
Roewe D7 95160 (Multimedia host)+95640 (BCM)
MAXUS Maxus 9 2022- R7F701649 (Infotainment Head Unit)
Electrodeless 500R STM8S105K6
Naveco Ouba 95160
ChangAn X70A 2022- 24C64
CNHTC Haowo A7 24C256 (CBCU)
SINOTRUK hohanqingka 2023- R5F10BDGL V2
SINOTRUK hohan R5F10BDGL
The following models are added for airbag.
Chery F18-3658010BA 25320
WuLing 26128857 R7F701009
WuLing 26197580 R7F701009
WuLing 26172907 8320139 0285021575 R7F7010643 (encrypted)
The following models are added for dashboard read-write.
BAIC B60V B00028403 95128 (read write)
Spring breeze CFORCE 1000 TOURING 24C08 (read write)
Toyota BZX3 24C64 (Instrument Cluster Controller) (read write)
Trumpchi GM6 R7F701603+95320 (read write)
Trumpchi 407000819AA TC233-32F (read write)
Case 7130 Harvester 24C16 (read-write)
Venucia 98820 2GP0A 95640 (read write)
WANDA BUS 2014- CAT1023 (read write)
Citroen DS 93C66 (Dashboard)+24C128 (BSI) (read write)
ChangAn Raeton 9S12HY64 (read write)
ChangAn 3658100-BM401 95320 (read write)
