You can clone encrypted Nissan 4A smart keys (utilizing NXP NCF29Ax chips) without soldering using CGDI K2 Key Tool paired with a specialized Nissan QJ 4A Yellow Clip in the new GODIAG Solder-Free 7-in-1 Adapter Kit .
What is GODIAG Solder-Free 7-in-1 Adapter Kit?
This new adapter set is an extra add-on made for GODIAG 14-in-1 BMW BCP U BDC2 BDC3 Adapter Kit.
It lets you read original smart key data from JLR, Ford, GM, Nissan, Hyundai, and Kia cars with encrypted 5C/5D system, making key cloning and programming faster, safer, and easier with zero soldering required.
Key Features:
- Works with popular key programmers:Compatible with CGDI K2, Xhorse Key Tool Plus, Autel IM608, KD-MAX, and KYDZ.

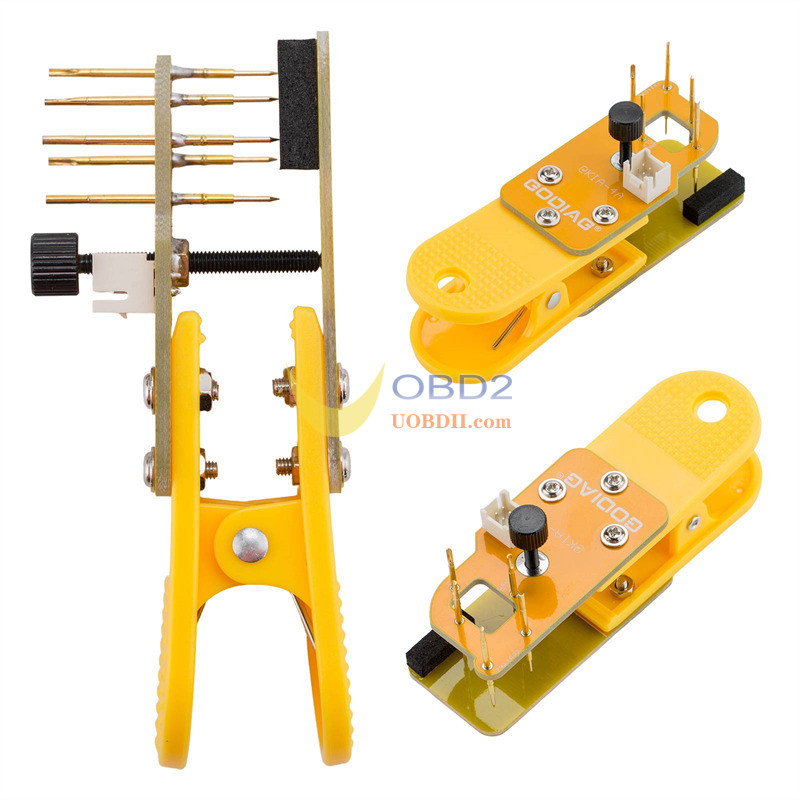

- No soldering required:Specially designed clips connect straight to the key board, keeping sensitive components safe from high heat.
- Faster work:Speeds up key copying while keeping the whole key programming job simple and safe.
- More vehicle coverage:Adds extra key-reading features to your current GODIAG tool setup.

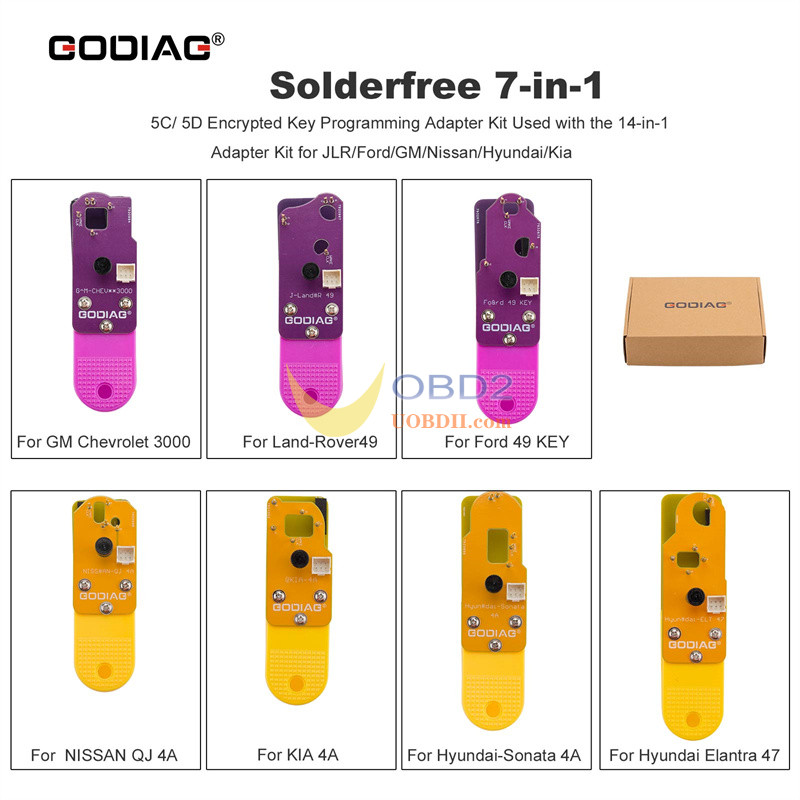

Package Includes:
- 1pc x Land Rover Purple Clip
- 1pc x Ford 49 Purple Clip
- 1pc x GM/Chevrolet 3000 Purple Clip
- 1pc x Nissan QJ 4A Yellow Clip
- 1pc x Hyundai Elantra 47 Yellow Clip
- 1pc x Hyundai Sonata 4A Yellow Clip
- 1pc x Kia 4A Yellow Clip
Car Keys Supported:
- Land Rover 49
- Ford 49
- GM / Chevrolet 3000
- Nissan QJ 4A
- Kia 4A
- Hyundai Sonata 4A / Elantra 47
How to Copy Nissan 4A Key No Soldering?

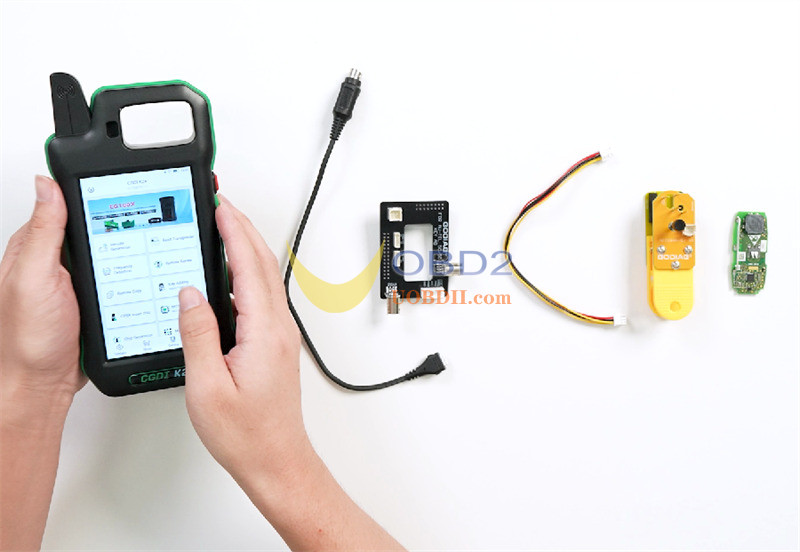

Preparation:
- CGDI K2 Smart Key Toolwith PS2 remote generate cable
- Nissan QJ 4A Yellow Clip (in GODIAG 7-in-1 Adapter Kit)
- GODIAG Autel BDC3 Key Adapter and 6 PIN connecting cable (both are in GODIAG BDC3 Adapter Kitor GODIAG 14-in-1 Adapter Kit)
- Nissan QJ 4A smart key board
Operation guide:
1.Connection

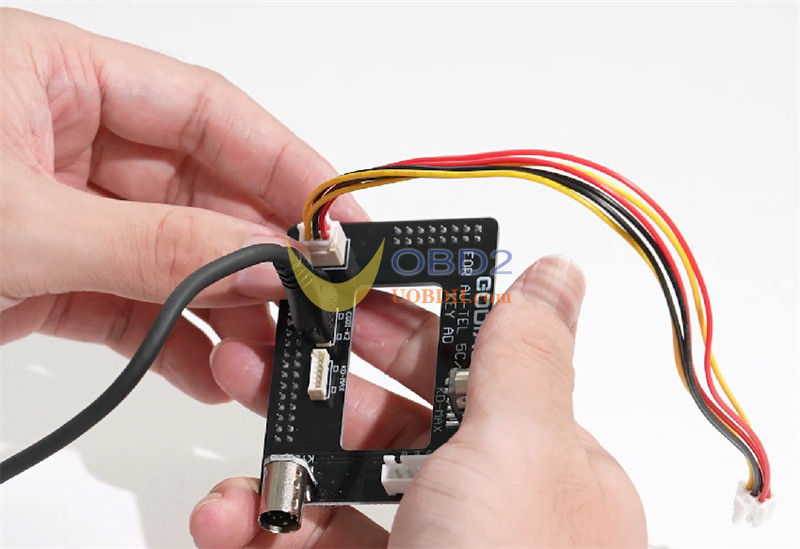

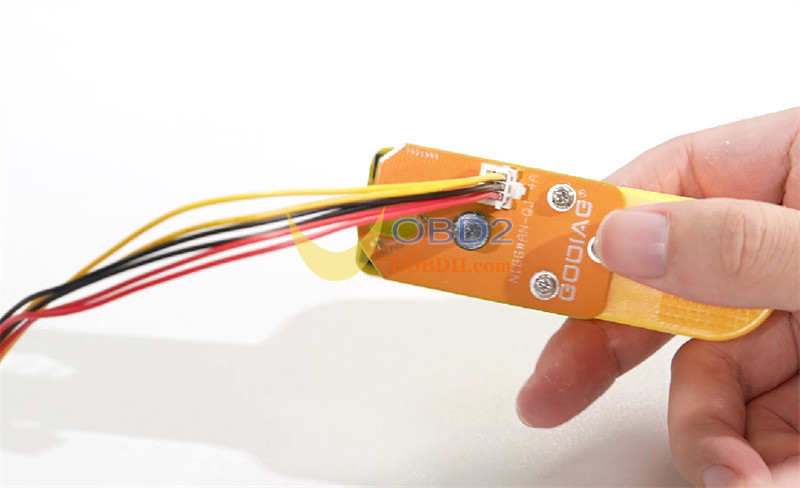

Connect GODIAG BDC3 Key Adapter to CGDI K2 via remote generate cable, and connect to Nissan QJ 4A Yellow Clip via 6 PIN connecting cable

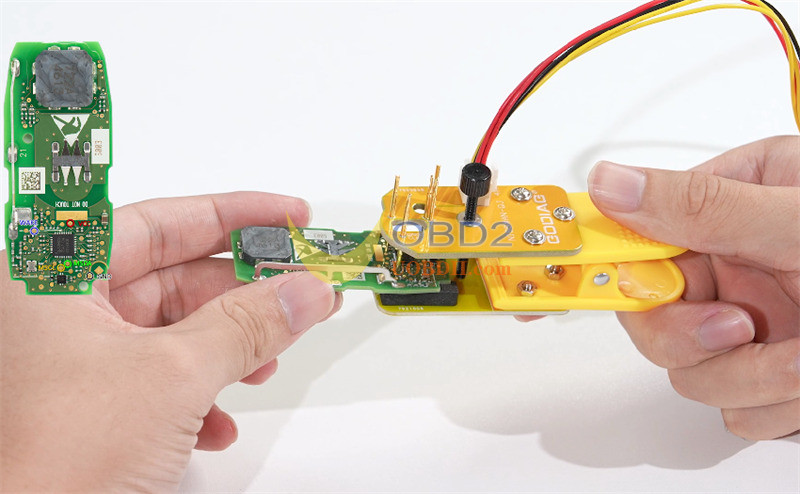

Use Nissan 4A Yellow Clip to clip key board correctly according to the remarked points
2.Smart key cloning

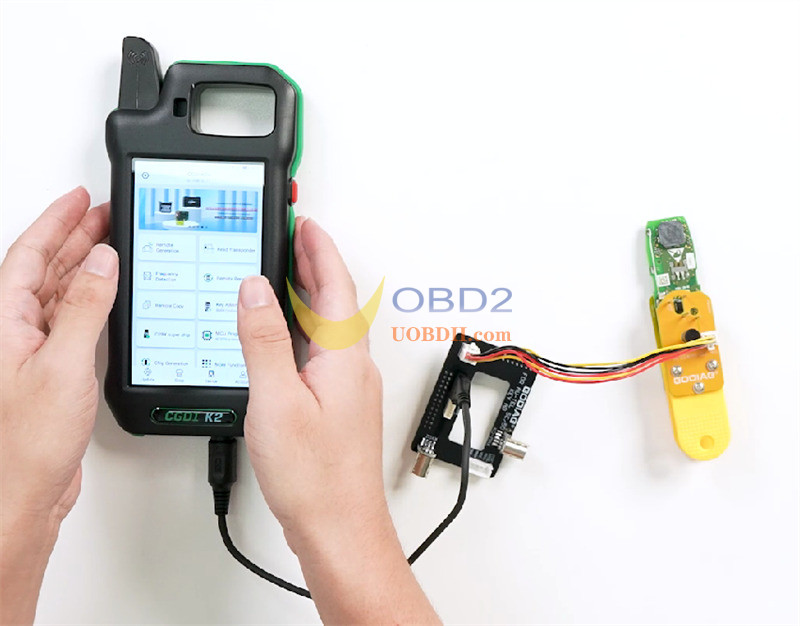

After connection, turn on CGDI K2 key programmer

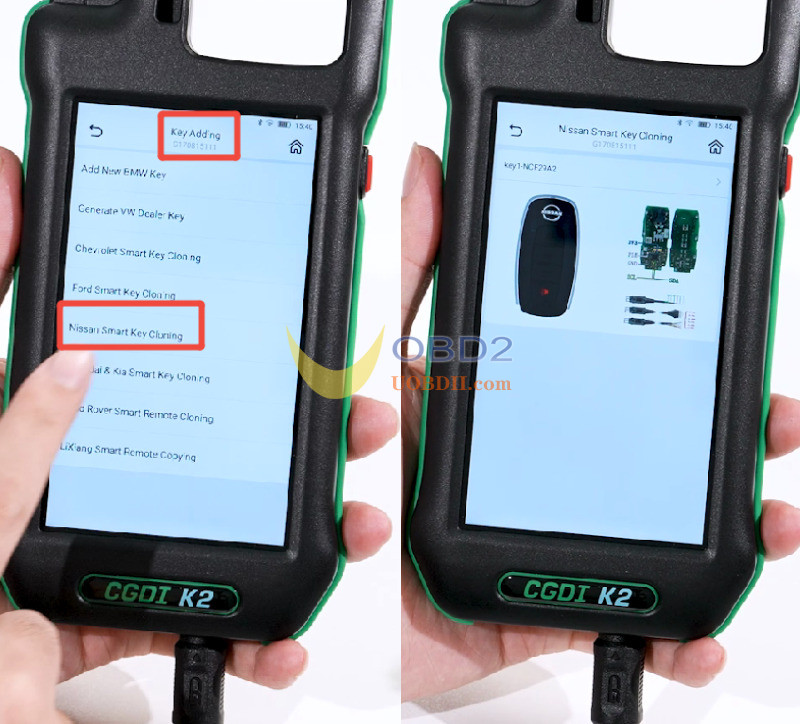

Navigate to Key Adding-> Nissan Smart Key Cloning-> Key1-NCF29A2

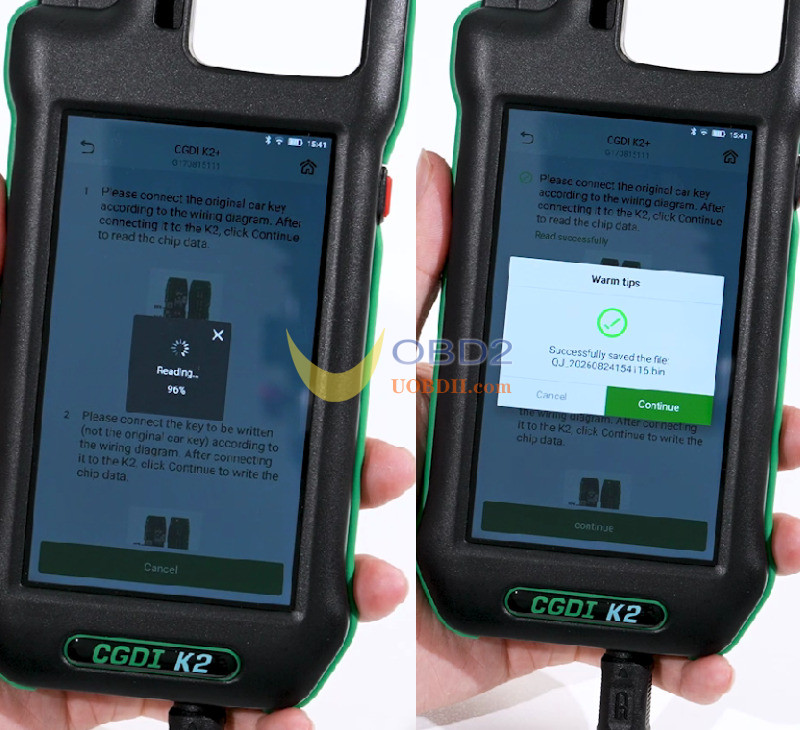

Start reading IMMO data…
Save the file after reading
Finally, go back to the main menu, connect your new or used key, and load the saved file. When the writing finishes, your cloned smart key is ready to use.
FYI…

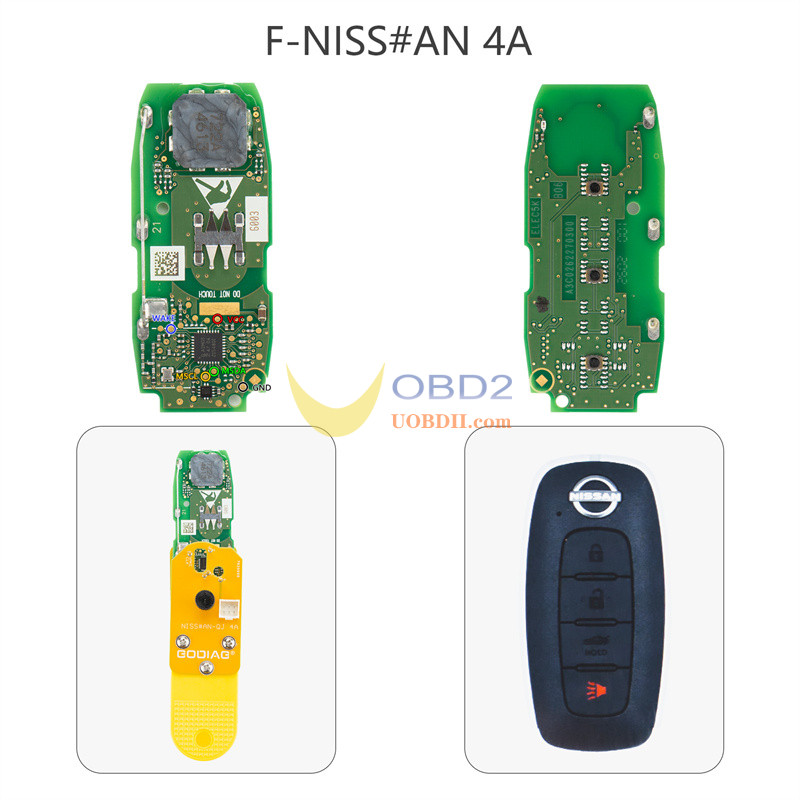

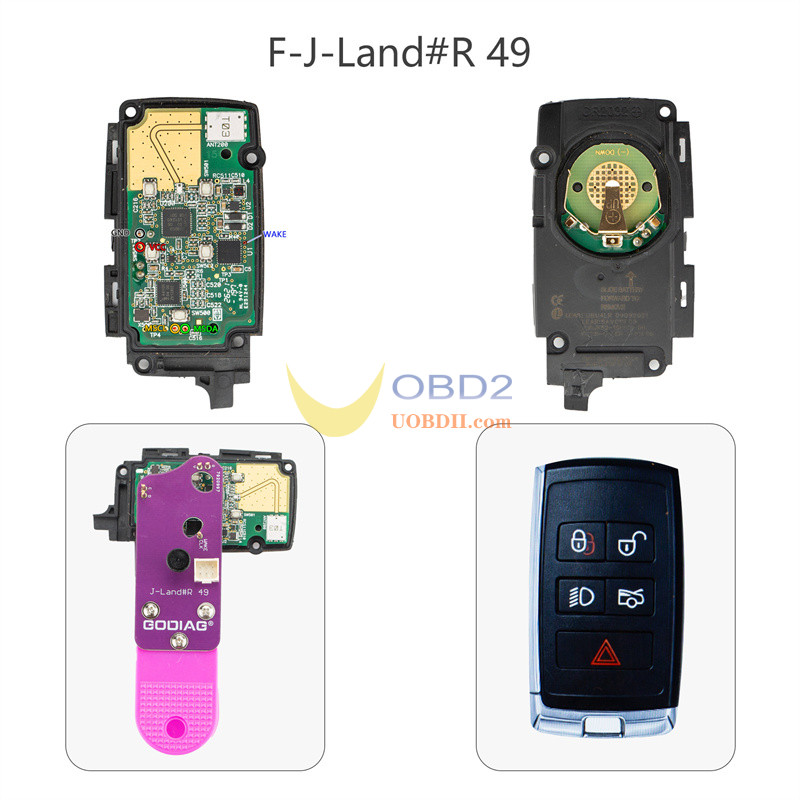

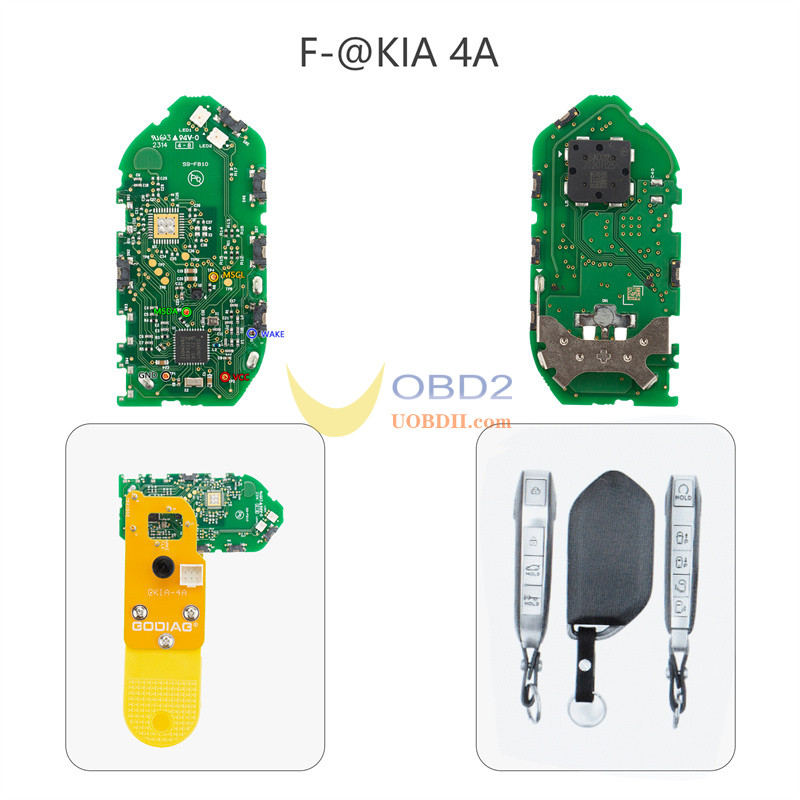

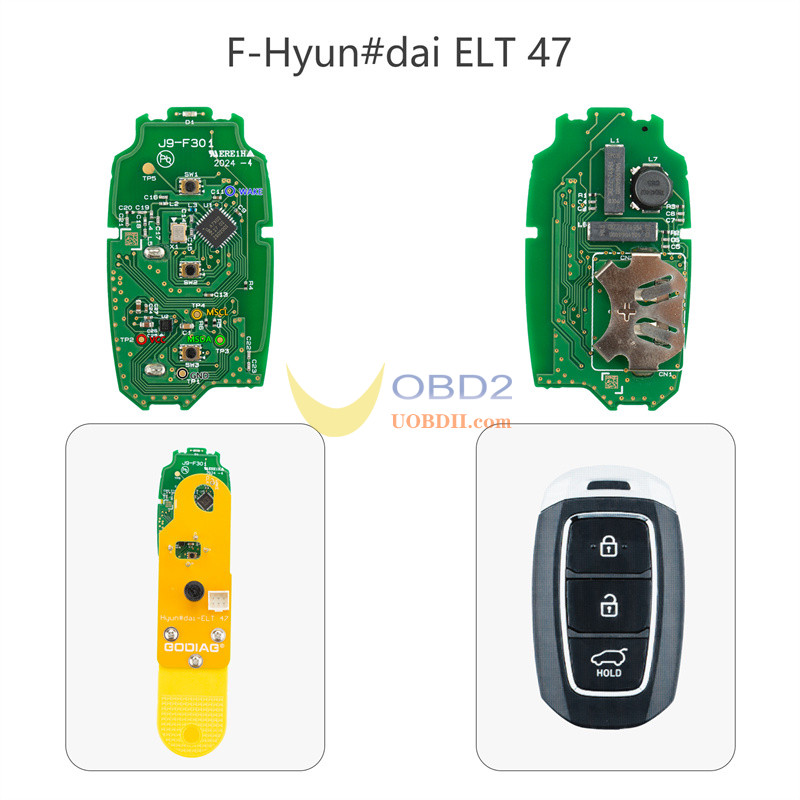

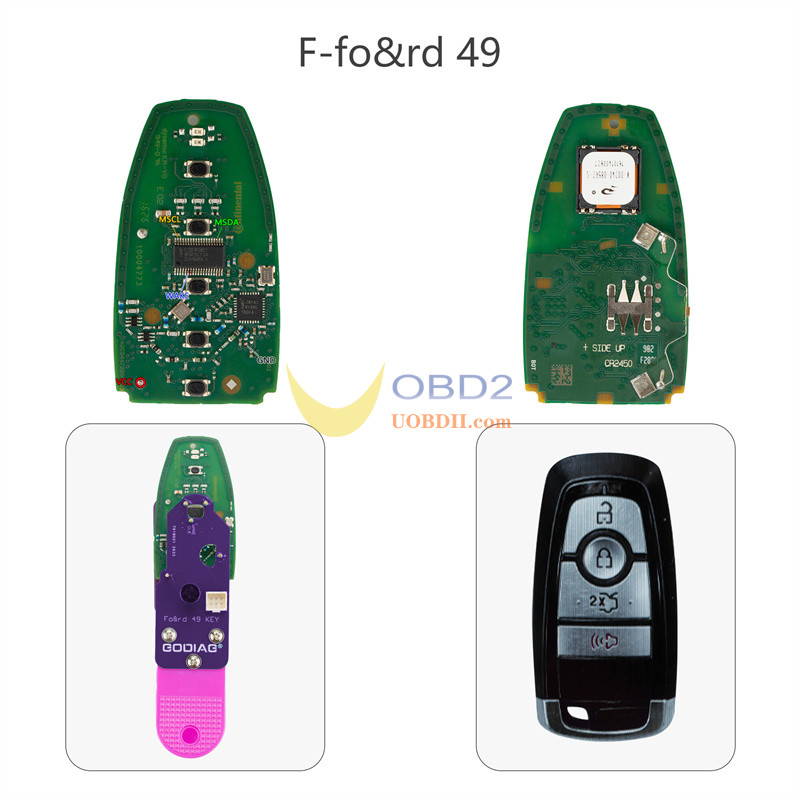

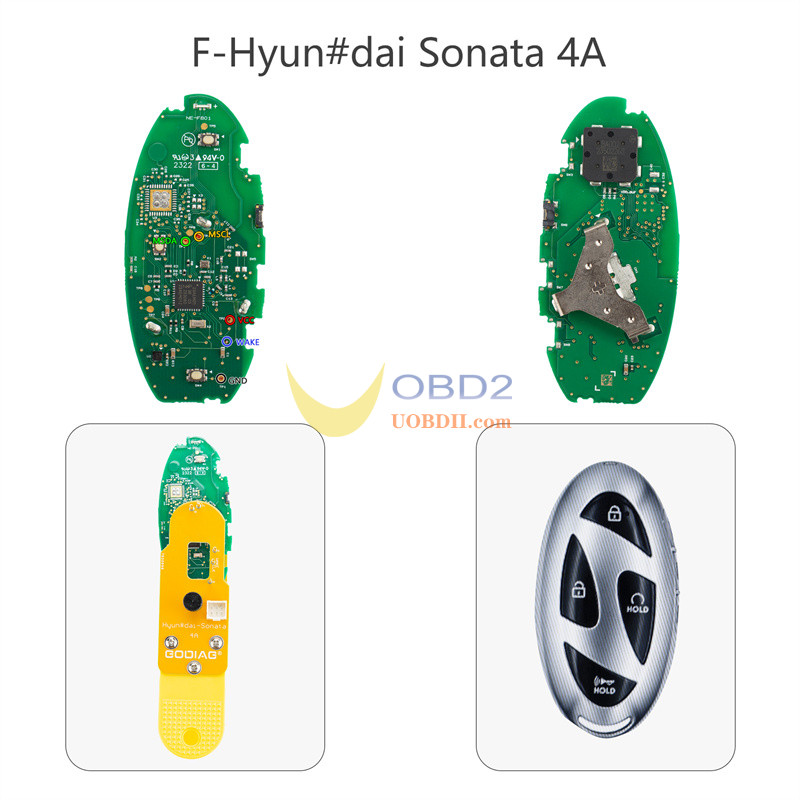

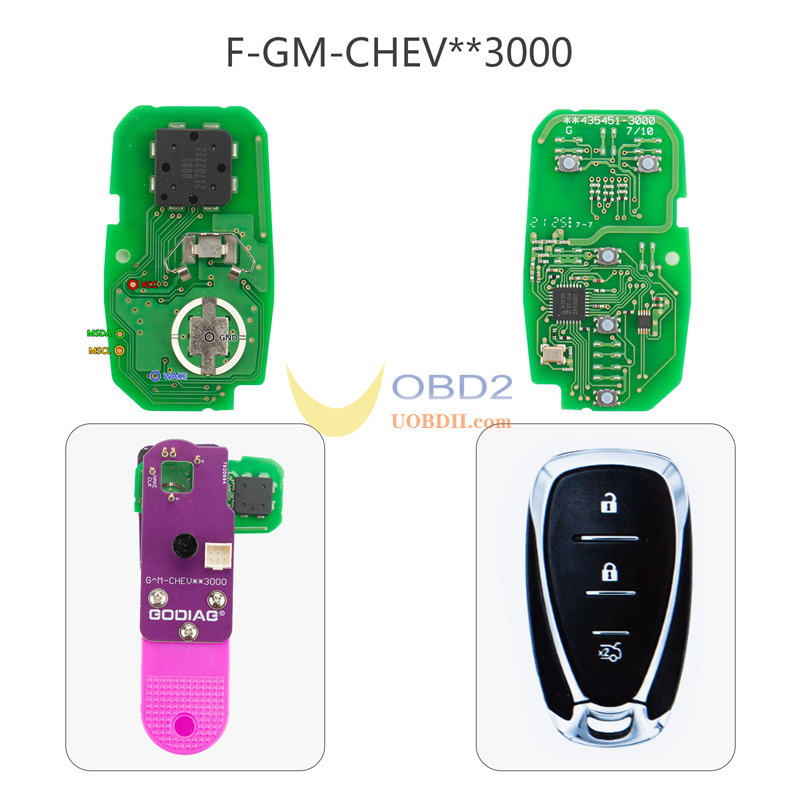

GODIAG 7-in-1 Adapter Kit Pinout diagrams for Land Rover/Ford/GM/Chevrolet 3000/ Nissan/ KIA/Hyundai
