How V8/X6 Key Cutting Machine decode and cut Renault NE73 key?

High-quality Automatic V8/X6 Key Cutting Machine with free V2015 database is available at uobdii.com. This blog will show you how to use V8/X6 Key Cutting Machine decode and cut Renault NE73 key.

Step1. Start machine, the main menu is “Automobile Key Cutting System”. Press “Key Search” button, choose “SILCA”→ “Renault”→ “NE73”

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-1

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-2

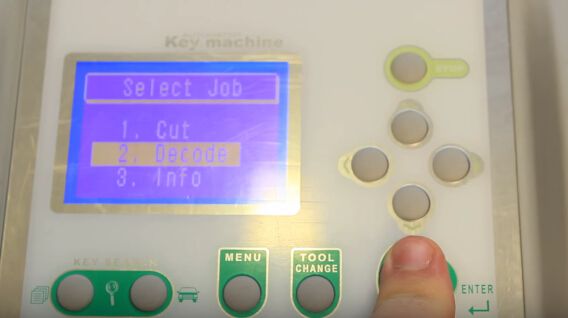

Step2. On “Select Job” menu choose “Decode”

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-3

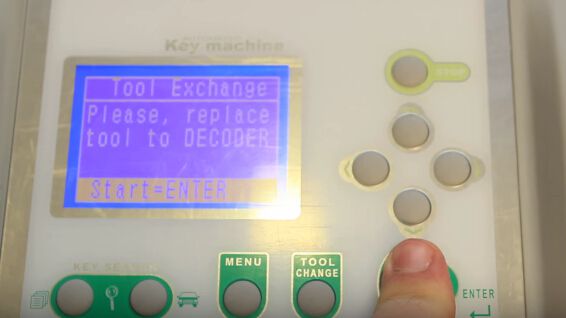

Then X6 key cutting machine will show “Replace tool to decoder”, so change cutter to decoder.

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-4

Step3. After change tool, press “Enter” button and follow the instruction diagram to put the old key on right position, then press “Enter” button to start decode. Wait a second and it will show the key code.

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-5

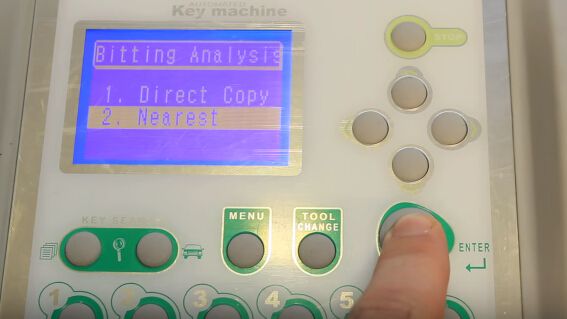

Step4. Press “Enter” button and choose “Nearest” on “Bitting Analysis” menu.

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-6

It will show diagram of key position, press “Enter” button, use block and pad to put the new key blade properly.

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-7

Then press “1” button to choose “Speed: Steel” and press “Enter” button. It will show “Replace tool to cutter”, replace the decoder to cutter and press “Enter” button to start cutting.

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-8

Now Automatic V8 Key Cutting Machine decoded and cut Renault NE73 key successfully.

V8-X6-key-cutting-machine-decode-cut-Renault-NE73-key-9
