2017 Porsche Macan add key on the bench by Yanhua Mini ACDP

Tested: 2017 Porsche Macan add key on the bench perfectly using Yanhua Mini ACDP + Module 10

2017-porsche-macan-add-key-on-the-bench-by-acdp-01

For your information, now you can obtain module 10 authorization by yourself instead of providing the dealer with the SN of ACDP to help you.



Step -by – step procedure:

Remove the BCM module from the vehicle.

2017-porsche-macan-add-key-on-the-bench-by-acdp-02 2017-porsche-macan-add-key-on-the-bench-by-acdp-03 2017-porsche-macan-add-key-on-the-bench-by-acdp-04

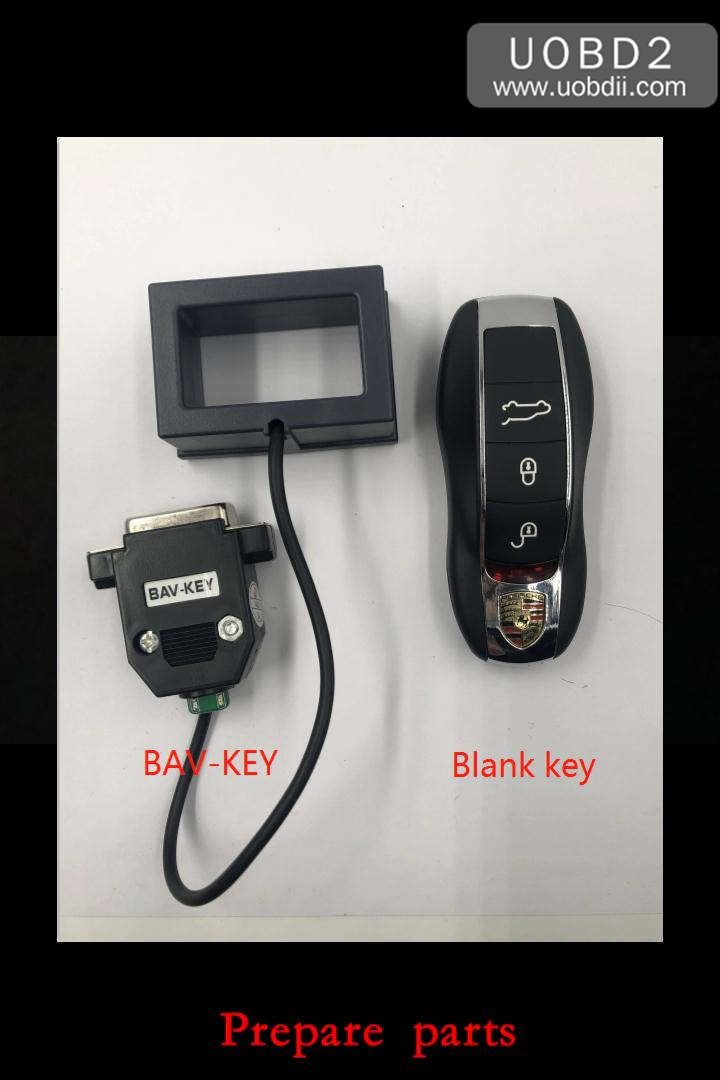

All needed:

ACDP host

OBP+ICP adapter

Porsche BCM interface board

Copper pillar

20 pin cable

BAV -Key

Blank key

2017-porsche-macan-add-key-on-the-bench-by-acdp-05 2017-porsche-macan-add-key-on-the-bench-by-acdp-06



Next is the installation job:

Install the copper pillar, short one at below and long one on top.

D1-D4 regional figure.

Install the interface board according to D1-D4.

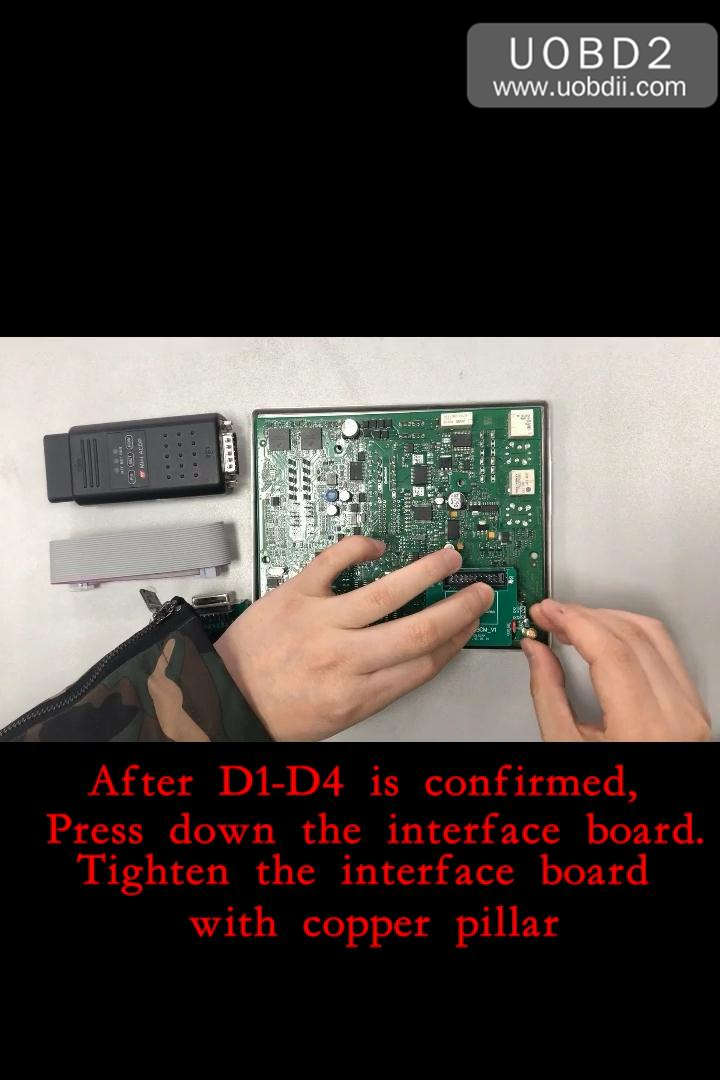

Confirmed D1-D4, then press download the interface board. Tighten the interface board with copper pillar.

Power the ACDP host.

2017-porsche-macan-add-key-on-the-bench-by-acdp-07 2017-porsche-macan-add-key-on-the-bench-by-acdp-08 2017-porsche-macan-add-key-on-the-bench-by-acdp-09 2017-porsche-macan-add-key-on-the-bench-by-acdp-10 2017-porsche-macan-add-key-on-the-bench-by-acdp-11 2017-porsche-macan-add-key-on-the-bench-by-acdp-12 2017-porsche-macan-add-key-on-the-bench-by-acdp-13 2017-porsche-macan-add-key-on-the-bench-by-acdp-14 2017-porsche-macan-add-key-on-the-bench-by-acdp-15 2017-porsche-macan-add-key-on-the-bench-by-acdp-16 2017-porsche-macan-add-key-on-the-bench-by-acdp-17



Click on “Mini ACDP” APP.

2017-porsche-macan-add-key-on-the-bench-by-acdp-18



Click on Porsche

2017-porsche-macan-add-key-on-the-bench-by-acdp-19

Click on “New Porsche add key / all lost“.

2017-porsche-macan-add-key-on-the-bench-by-acdp-20



ICP IMMO.

2017-porsche-macan-add-key-on-the-bench-by-acdp-21



Main menu: MC9S12XEP100 (Mask 5M48H).

2017-porsche-macan-add-key-on-the-bench-by-acdp-22



Click on “Add key (auto mode)”.

2017-porsche-macan-add-key-on-the-bench-by-acdp-23



Please read the prompt carefully.

2017-porsche-macan-add-key-on-the-bench-by-acdp-24

Follow the prompts to connect.

2017-porsche-macan-add-key-on-the-bench-by-acdp-25



Pin detection passes.

If the detection fails, please check and clean up the test point.

2017-porsche-macan-add-key-on-the-bench-by-acdp-26



It is detected that the BCM module chip has been encrypted, click on “Continue”.

2017-porsche-macan-add-key-on-the-bench-by-acdp-27



Continue.

2017-porsche-macan-add-key-on-the-bench-by-acdp-28



Reading Pflash data, please wait…

2017-porsche-macan-add-key-on-the-bench-by-acdp-29



Please save PFLASH data file.

2017-porsche-macan-add-key-on-the-bench-by-acdp-31



Reading EEPROM /DFLASH data…

2017-porsche-macan-add-key-on-the-bench-by-acdp-32



Please save the original EEPROM data file.

2017-porsche-macan-add-key-on-the-bench-by-acdp-33 2017-porsche-macan-add-key-on-the-bench-by-acdp-34

Please save the original DFLASH data file.

2017-porsche-macan-add-key-on-the-bench-by-acdp-35 2017-porsche-macan-add-key-on-the-bench-by-acdp-36

Check VIN and other vehicle information.

2017-porsche-macan-add-key-on-the-bench-by-acdp-37



Connect according to the prompt message.

2017-porsche-macan-add-key-on-the-bench-by-acdp-38

Check the New key ID.

2017-porsche-macan-add-key-on-the-bench-by-acdp-39



Choose any blank key number.

2017-porsche-macan-add-key-on-the-bench-by-acdp-40

Programming key…

2017-porsche-macan-add-key-on-the-bench-by-acdp-41



Please store the DFLASH data file after adding a new key.

2017-porsche-macan-add-key-on-the-bench-by-acdp-42



Connect according to the prompt message.

2017-porsche-macan-add-key-on-the-bench-by-acdp-43



Check pin again.

2017-porsche-macan-add-key-on-the-bench-by-acdp-44



Pin detection passes, if the detection fails, please check and clean up the test point.

2017-porsche-macan-add-key-on-the-bench-by-acdp-45



Check the new key ID has been added to the key list.

2017-porsche-macan-add-key-on-the-bench-by-acdp-46



Writing EEPROM /DFLASH data…

2017-porsche-macan-add-key-on-the-bench-by-acdp-47



Adding Porsche key completed.

2017-porsche-macan-add-key-on-the-bench-by-acdp-48 2017-porsche-macan-add-key-on-the-bench-by-acdp-49

Install the BCM module back to Porsche car and confirm the new key can be used normally.

Big thanks to Yanhua Mini ACDP + Module 10
